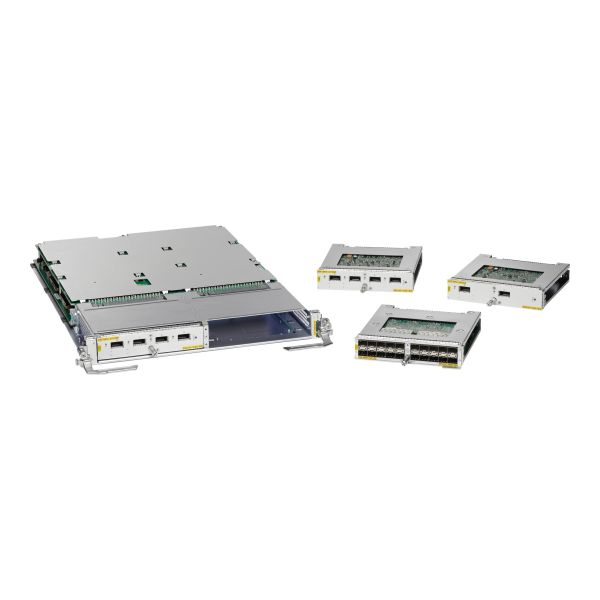

Cisco Mod160 Modular Line Card Packet Transport Optimized

Be the first to review this product

Availability: Out of stock

SKU

A9K-MOD160-TR=

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

Packet Transport Optimized line cards are designed for network deployments where basic QoS is required.

Specifications

General Information
Category	Network interface cards
Description	Cisco Mod160 Modular Line Card Packet Transport Optimized - Expansion module - for ASR 9001, 9006, 9006 with PEM Version 2, 9010, 9010 with PEM Version 2
Manufacturer	Cisco Systems
MSRP	$72,252.00
UNSPSC	43201404
Main Specifications
Dimensions & Weight / Depth	56.9 cm
Dimensions & Weight / Height	4.37 cm
Dimensions & Weight / Weight	8.16 kg
Dimensions & Weight / Width	36.8 cm
Header / Brand	Cisco
Networking / Connectivity Technology	Wired
Networking / Type	Expansion module
Packaged Quantity	1
Service & Support / Type	1-year warranty
Compatibility Information
Designed For	Cisco ASR 9001, 9006, 9006 with PEM Version 2, 9010, 9010 with PEM Version 2
Dimensions & Weight
Depth	56.9 cm
Height	4.37 cm
Weight	8.16 kg
Width	36.8 cm
Environmental Parameters
Humidity Range Operating	10 - 85%
Max Operating Temperature	40 °C
Min Operating Temperature	5 °C
Expansion / Connectivity
Expansion Slots	2 (total) / 2 (free) x expansion slot
General
Device Type	Expansion module
Form Factor	Plug-in module
Manufacturer Warranty
Service & Support	Limited warranty - 1 year
Miscellaneous
Compliant Standards	NEBS level 3, FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, ACA TS001, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, EN 60825, FDA, AS/NZS 3548 Class A, BSMI Class A, AS/NZS 60950, GR-1089-CORE, IEC 60825, VCCI Class A, GR-63-CORE, ETSI 300 019, IEC/UL/CSA/EN 60950-1, EN 300386
Networking
Compliant Standards	IEEE 802.3, IEEE 802.3x, IEEE 802.3ah, IEEE 802.1ag, ITU-T Y.1731
Connectivity Technology	Wired
Features	Flow control, modular design, full duplex capability, MPLS support, QoS, NetFlow, VCCV
