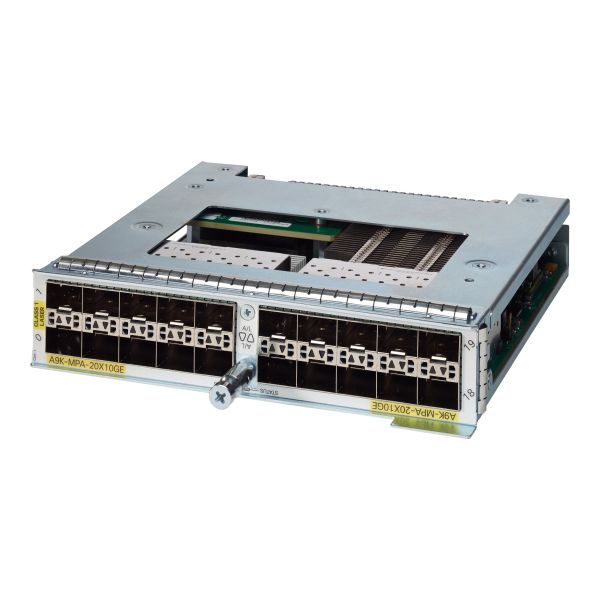

Cisco Ethernet Modular Port Adapter
The Cisco Ethernet Modular Port Adapter is designed to enhance network capabilities with robust features tailored for efficient data management. Operating within a temperature range of 5°C to 40°C and humidity levels between 10% and 85%, this adapter ensures reliable performance in varying environmental conditions. With its compliance to multiple rigorous standards, including NEBS level 3 and FCC Class A, it adheres to high safety and quality benchmarks, making it a dependable choice for network expansion needs. Equipped with full duplex capability and support for layer 2 and layer 3 switching, the adapter facilitates seamless data flow and superior performance. Features like Quality of Service (QoS) and MPLS support enhance network efficiency, while NetFlow provides insightful data analysis. This Ethernet Modular Port Adapter is a solution for organizations looking to optimize their networking infrastructure with reliable, high-performance components.
| General Information | |
|---|---|
| Category | Network interface cards |
| Description | Cisco Ethernet Modular Port Adapter - Expansion module - 10 Gigabit SFP+ x 20 - Consumption Model - for ASR 9001, 9001-S, 9006, 9010 |
| Manufacturer | Cisco Systems |
| UNSPSC | 43201404 |
| Main Specifications | |
| Dimensions & Weight / Depth | 17 cm |
| Dimensions & Weight / Height | 3.5 cm |
| Dimensions & Weight / Weight | 990 g |
| Dimensions & Weight / Width | 16.2 cm |
| Header / Brand | Cisco |
| Miscellaneous / Product Color | Silver |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | 10 Gigabit Ethernet |
| Networking / Data Transfer Rate | 10 Gbps |
| Networking / Type | Expansion module |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Compatibility Information | |
| Designed For | Cisco ASR 9001, 9001-S, 9006, 9006 Chassis, 9006 DC Chasis V2, 9006 with PEM Version 2, 9010, 9010 for High Scale, 9010 with PEM Version 2 |
| Dimensions & Weight | |
| Depth | 17 cm |
| Height | 3.5 cm |
| Weight | 990 g |
| Width | 16.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 85% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
| Interfaces | 20 x 10Gb Ethernet - SFP+ |
| General | |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance parts replacement - 1 year |
| Miscellaneous | |
| Compliant Standards | NEBS level 3, FCC Class A certified, ETSI, CISPR 22 Class A, EN 61000-3-2, EN55022, VCCI Class A ITE, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, AS/NZ 3548 Class A, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, Laser Class 1, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825, FDA, CSA C22.2 No. 60950-1, BSMI Class A, GR-1089-CORE, EN 300 386 |
| Pricing Type | Consumption Model |
| Networking | |
| Compliant Standards | IEEE 802.3x, IEEE 802.3ah, IEEE 802.1ag, ITU-T G.709 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
| Features | Flow control, full duplex capability, layer 3 switching, layer 2 switching, MPLS support, QoS, NetFlow |
| Ports | 10 Gigabit SFP+ x 20 |
