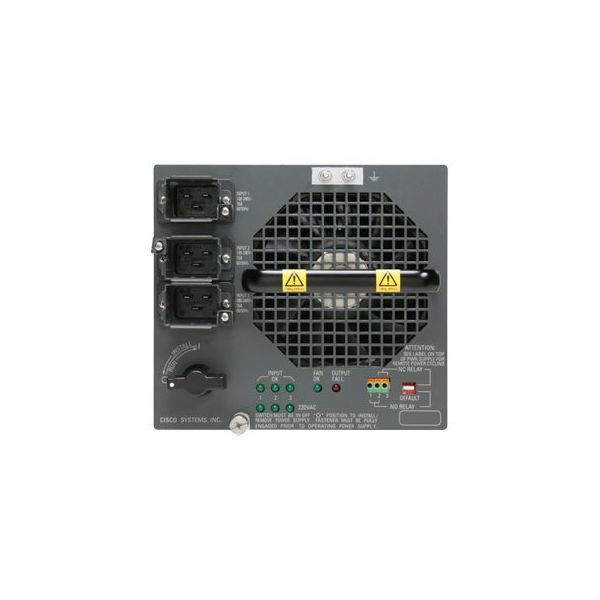

Cisco Enhanced AC Power Supply
The 8700W enhanced AC power supply provides the ability to remotely power cycle or shut down a Cisco Catalyst 6500 Series Switch for maintenance using Normally Open (NO) or Normally Closed (NC) built-in external relay contacts in the front-panel terminal block interface. The power supply relay contacts can be controlled through any appropriate third-party relay controller.
| General Information | |
|---|---|
| Category | Network switches |
| Description | Cisco Enhanced AC Power Supply - Power supply - hot-plug / redundant (plug-in module) - AC 100-240 V - 8700 Watt - for Catalyst 6500, 6503, 6504, 6506, 6506-E IDSM-2, 6509, 6509-E 10, 6513, 6513 10 |
| Manufacturer | Cisco Systems |
| MSRP | $7,375.73 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 41.4 cm |
| Dimensions & Weight / Height | 18.3 cm |
| Dimensions & Weight / Weight | 18 kg |
| Dimensions & Weight / Width | 20.3 cm |
| Header / Brand | Cisco |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Plug-in module |
| Power Device / Power Supply Compatibility | Network hardware |
| Power Device / Voltage Required | AC 100-240 V |
| Product Type | Power supply - hot-plug / redundant |
| Compatibility Information | |
| Designed For | Cisco Catalyst 6500, 6500 Series Fiber Interface Module, 6500 Series Supervisor Engine 720, 6503, 6503 Firewall Security System, 6503 VPN System, 6503-E, 6503-E chassis with Supervisor Engine 32, 6503-E Firewall Security System Bundle, 6503-E WSLM Bundle, 6504-E, 6504-E Application Control Engine (ACE) 20 Bundle, 6504-E chassis with Supervisor Engine 32, 6504-E with Supervisor Engine 720-3B, 6504-E with WiSM Bundle, 6506, 6506 chassis, 6506 Firewall Security System, 6506 Firewall Security System with Enhanced Chassis, 6506-E, 6506-E chassis with Supervisor Engine 32, 6506-E Firewall Security System Bundle, 6506-E IDSM-2 Bundle with 2-Gbps Performance, 6506-E IPSec VPN SPA Security System Bundle, 6506-E VPN System, 6506-E WLSM Bundle, 6509, 6509 chassis, 6509 Firewall and IDS Security System, 6509 Firewall and VPN Security System, 6509 Firewall Security System, 6509 Wiring Closet Bundle, 6509-E, 6509-E 10Gig Firewall Security System Bundle, 6509-E Application Control Engine (ACE) 20 Bundle, 6509-E Application Control Engine (ACE) 30 8G Bundle, 6509-E chassis with Supervisor Engine 32, 6509-E Data Center Services Bundle, 6509-E Firewall Security System Bundle, 6509-E Firewall Security System Bundle with Supervisor Engine 720-3BXL, 6509-E IPSec VPN SPA Security System, 6509-E with WiSM Bundle, 6509-NEB, 6509-NEB-A, 6509-V-E, 6513, 6513 10Gig Firewall Security System Bundle, 6513 chassis, 6513 Chassis with Supervisor Engine 32, 6513 Firewall Security System, 6513 Firewall Security System Bundle, 6513 IPSec VPN SPA Security System, 6513-E |
| Dimensions & Weight | |
| Depth | 41.4 cm |
| Height | 18.3 cm |
| Weight | 18 kg |
| Width | 20.3 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Device Type | Power supply - hot-plug / redundant - plug-in module |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 60950, EN 61000-3-2, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, CSA 22.2 No. 60950, EN 61000-6-1, ICES-003 Class A, FCC Part 15 A, AS/NZS 3548 Class A, EN 300 386 |
| MTBF | 300,000 hours |
| Power Device | |
| Frequency Required | 47 - 63 Hz |
| Input Connectors | 3 |
| Input Voltage | AC 100-240 V |
| Power Capacity | 8700 watt |
