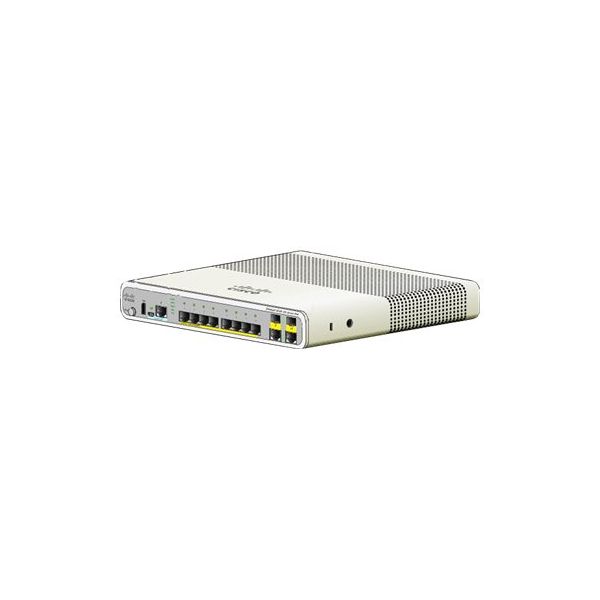

Cisco Catalyst Compact 2960C-8PC-L

Be the first to review this product

Availability: Out of stock

SKU

WS-C2960C-8PC-L

UPC Code

882658452420

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The Cisco Catalyst 2960-C series compact switch is small form-factor Gigabit Ethernet and Fast Ethernet switch designed for deployments outside the wiring closet. Enterprise and commercial customers can deliver advanced security services, unified communications, wireless, IP video cameras, and other applications for the office workspace, branch office, classroom, cruise JTFp, and other wiring-constrained environments.

Specifications

General Information
Category	Network switches
Description	Cisco Catalyst Compact 2960C-8PC-L - Switch - Managed - 8 x 10/100 (PoE) + 2 x combo Gigabit SFP - desktop, rack-mountable, wall-mountable - PoE
Manufacturer	Cisco Systems
MSRP	$1,437.01
UNSPSC	43222612
Main Specifications
Dimensions & Weight / Depth	23.8 cm
Dimensions & Weight / Height	4.4 cm
Dimensions & Weight / Weight	1.86 kg
Dimensions & Weight / Width	26.9 cm
Header / Brand	Cisco
Networking / Form Factor	Desktop Rack-mountable Wall-mountable
Networking / Ports Qty	8
Networking / Type	Switch
Packaged Quantity	1
Service & Support / Type	Limited lifetime warranty
Dimensions & Weight
Depth	23.8 cm
Height	4.4 cm
Weight	1.86 kg
Width	26.9 cm
Environmental Parameters
Humidity Range Operating	5 - 95% (non-condensing)
Humidity Range Storage	5 - 95% (non-condensing)
Max Operating Temperature	40 °C
Max Storage Temperature	70 °C
Min Operating Temperature	-5 °C
Min Storage Temperature	-25 °C
Expansion / Connectivity
Interfaces	2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 8 x 10Base-T/100Base-TX - RJ-45 PoE 1 x console - mini-USB Type B management 1 x RS-232 - RJ-45 management 2 x SFP (mini-GBIC) 1 x USB Type A
General
Authentication Method	Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Capacity	Virtual interfaces (VLANs): 255
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP)
Device Type	Switch - 8 ports - managed
Enclosure Type	Desktop, rack-mountable, wall-mountable 1U
Features	DHCP support, PoE, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, STP support, DHCP snooping, DTP support, PAgP support, TFTP support, ACL support, QoS, DAI, STP Root Guard, UDLD, fanless, DHCP relay, LACP, RSPAN
Flash Memory	64 MB
Jumbo Frame Support	9018 bytes
Performance	Forwarding performance: 10 Gbps
Ports	8 x 10/100 (PoE) + 2 x combo Gigabit SFP
Power Over Ethernet (PoE)	PoE
RAM	128 MB
Remote Management Protocol	SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, CLI
Routing Protocol	RIP-1, RIP-2
Status Indicators	Port status, system, link/activity
Subtype	Fast Ethernet
Manufacturer Warranty
Service & Support	Limited warranty - replacement - lifetime - response time: next business day Limited warranty - power supply - 5 years
Miscellaneous
Compliant Standards	GOST, CISPR 24, EN55022, VCCI Class A ITE, EN55024, CISPR 22, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1, GB 4943
MTBF	373,635 hours
Power
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Software / System Requirements
Software Included	Cisco IOS LAN Base
