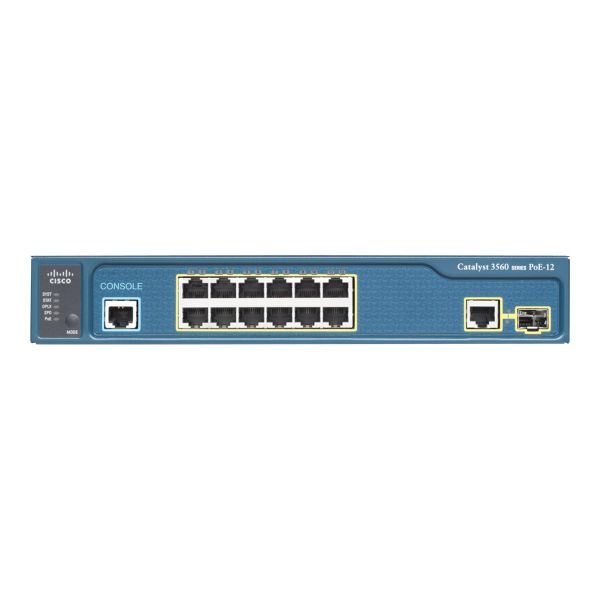

Cisco Catalyst 3560CX-12PC-S

Be the first to review this product

Availability: Out of stock

SKU

WS-C3560CX-12PC-S

UPC Code

882658753275

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The Cisco Catalyst 3560CX-12PC-S Network Switch is ideal for high-speed data connectivity, Wi-Fi backhaul, and PoE+ connectivity in places where space is at a premium. Featuring a compact design and quiet, fanless operation, this managed switch can come out of the data closet and be placed closer to users, meaning shorter cable runs and greater flexibility for your network deployment.

Specifications

General Information
Category	Network switches
Description	Cisco Catalyst 3560CX-12PC-S - Switch - Managed - 12 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP - desktop, rack-mountable, DIN rail mountable, wall-mountable - PoE+ (240 W)
Manufacturer	Cisco Systems
MSRP	$3,019.85
UNSPSC	43222612
Main Specifications
Dimensions & Weight / Depth	23.8 cm
Dimensions & Weight / Height	4.44 cm
Dimensions & Weight / Weight	2.31 kg
Dimensions & Weight / Width	26.9 cm
Header / Brand	Cisco
Miscellaneous / Product Color	Gray
Networking / Form Factor	Desktop DIN rail mountable Rack-mountable Wall-mountable
Networking / Ports Qty	12
Networking / Type	Switch
Packaged Quantity	1
Service & Support / Type	Limited lifetime warranty
Dimensions & Weight
Depth	23.8 cm
Height	4.44 cm
Weight	2.31 kg
Width	26.9 cm
Environmental Parameters
Humidity Range Operating	5 - 95% (non-condensing)
Humidity Range Storage	5 - 95% (non-condensing)
Max Operating Temperature	45 °C
Max Storage Temperature	70 °C
Min Operating Temperature	-5 °C
Min Storage Temperature	-25 °C
Expansion / Connectivity
Interfaces	12 x 1000Base-T RJ-45 PoE+ - 30 W 1 x console RJ-45 1 x mini-USB Type B management 1 x USB Type A 2 x 1000Base-T RJ-45 uplink 2 x SFP uplink
General
Authentication Method	Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Capacity	Virtual interfaces (VLANs): 1023
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3az
Device Type	Switch - 12 ports - managed
Enclosure Type	Desktop, rack-mountable, DIN rail mountable, wall-mountable 1U
Features	BOOTP support, ARP support, VLAN support, Syslog support, DiffServ support, IPv6 support, STP support, DHCP snooping, PAgP support, ACL support, QoS, fanless, SRR, MAC Address Notification, RSPAN, Energy Efficient Ethernet, MVR, CoS, WTD
Flash Memory	128 MB
Jumbo Frame Support	9018 bytes
Performance	Forwarding performance: 16 Gbps Forwarding performance (64-byte packet size): 23.8 Mpps
PoE Budget	240 W
Ports	12 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP
Power Over Ethernet (PoE)	PoE+
RAM	512 MB
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI
Routing Protocol	RIP-1, RIP-2, static IP routing
Status Indicators	Port status, port transmission speed, port duplex mode, system, link/activity
Subtype	Gigabit Ethernet
Manufacturer Warranty
Service & Support	Limited warranty - advance parts replacement - lifetime - response time: next business day Technical support - consulting - 90 days
Miscellaneous
Compliant Standards	GOST, CISPR 24, EN55022, EN55024, CISPR 22, CCC, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, ANATEL, GB 4943, KCC Class A, IEC 60825, KN22, KN24, VCCI V-3/2007.04 Class A, AS/NZS CISPR22:2004 Class A, CAN/CSA-C22.2 No. 60950-1
MTBF	553,140 hours
Rack Mounting Kit	Optional
Power
80 PLUS Certification	80 PLUS Silver
Power Consumption Operational	23.5 watt
Power Device	Internal power supply
Power Provided	300 watt
Voltage Required	AC 120/230 V (50/60 Hz)
Software / System Requirements
Software Included	Cisco IOS IP Base
