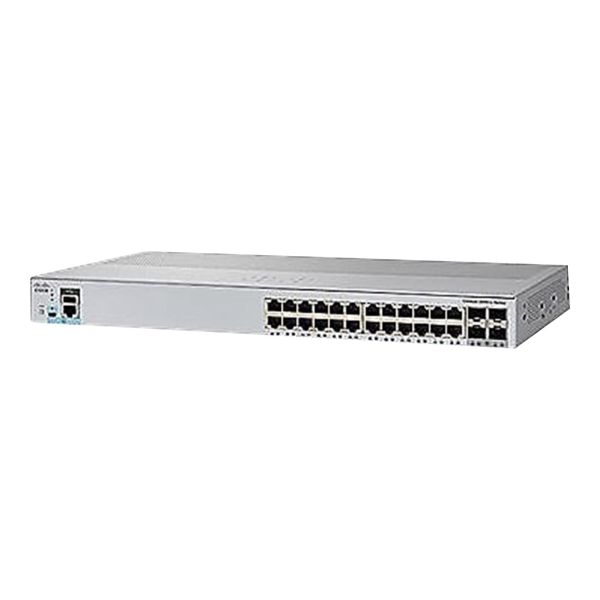

Cisco Catalyst 2960L-SM-24PS

Be the first to review this product

Availability: Out of stock

SKU

WS-C2960L-SM-24PS

UPC Code

889728197144

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The Cisco Catalyst 2960L-SM-24PS Network Switch is an enterprise-class, fixed Gigabit Ethernet switch designed for small- and medium-sized businesses. This secure network switch is ideal for critical IoT (Internet of Things) deployments. It operates on Cisco IOS Software and supports simple device management using only a simple yet powerful web UI.

Specifications

General Information
Category	Network switches
Description	Cisco Catalyst 2960L-SM-24PS - Switch - smart - 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink) - desktop, rack-mountable - PoE+ (195 W)
Manufacturer	Cisco Systems
MSRP	$1,308.70
UNSPSC	43222612
Main Specifications
Dimensions & Weight / Depth	26.5 cm
Dimensions & Weight / Height	4.4 cm
Dimensions & Weight / Weight	3.36 kg
Dimensions & Weight / Width	44.5 cm
Header / Brand	Cisco
Miscellaneous / Product Color	Gray
Networking / Form Factor	Desktop Rack-mountable
Networking / Ports Qty	24
Networking / Type	Switch
Packaged Quantity	1
Service & Support / Type	Limited lifetime warranty
Dimensions & Weight
Depth	26.5 cm
Height	4.4 cm
Weight	3.36 kg
Width	44.5 cm
Environmental Parameters
Humidity Range Operating	5 - 90%
Humidity Range Storage	5 - 95%
Max Operating Temperature	45 °C
Max Storage Temperature	70 °C
Min Operating Temperature	-5 °C
Min Storage Temperature	-25 °C
Expansion / Connectivity
Interfaces	24 x 1000Base-T RJ-45 PoE+ 1 x console RJ-45 1 x console (mini-USB) Type B 1 x USB Type A 4 x 1000Base-X SFP uplink
General
Authentication Method	Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Capacity	VLANs supported: 4094 Active VLANs: 64 STP instances: 64 SPAN sessions: 1
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Device Type	Switch - 24 ports - smart
Enclosure Type	Desktop, rack-mountable
Features	DHCP support, auto-negotiation, BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), IDS, WRR queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, RSTP support, MSTP support, DHCP snooping, DTP support, PAgP support, ACL support, DAI, Cisco EnergyWise technology, UDLD, Rapid PVST+, fanless, LACP, Port Security, Energy Efficient Ethernet, MIB, GVRP, CoS, IGMP filtering, WTD, VTP, BPDU, ICMP, STRG, NTP
Flash Memory	256 MB
Jumbo Frame Support	10240 bytes
MAC Address Table Size	8K entries
Performance	Switching bandwidth: 56 Gbps Forwarding bandwidth: 28 Gbps Forwarding performance (64-byte packet size): 41.67 Mpps
PoE Budget	195 W
Ports	24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
Power Over Ethernet (PoE)	PoE+
Processor	ARM7: 800 MHz
RAM	512 MB
Remote Management Protocol	SNMP 1, RMON 2, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI
Routing Protocol	IGMP, MLDv2, MLD
Status Indicators	Port status, port duplex mode, system, PoE, link/speed
Subtype	Gigabit Ethernet
Manufacturer Warranty
Service & Support	Limited warranty - replacement - lifetime - response time: next business day Technical support - consulting - 90 days
Miscellaneous
Compliant Standards	Plug and Play, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, AS/NZS CISPR22:2004 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, USGv6
MTBF	909,838 hours
Power
Voltage Required	AC 120/230 V (50 - 60 Hz)
Software / System Requirements
Software Included	Cisco IOS LAN Lite
