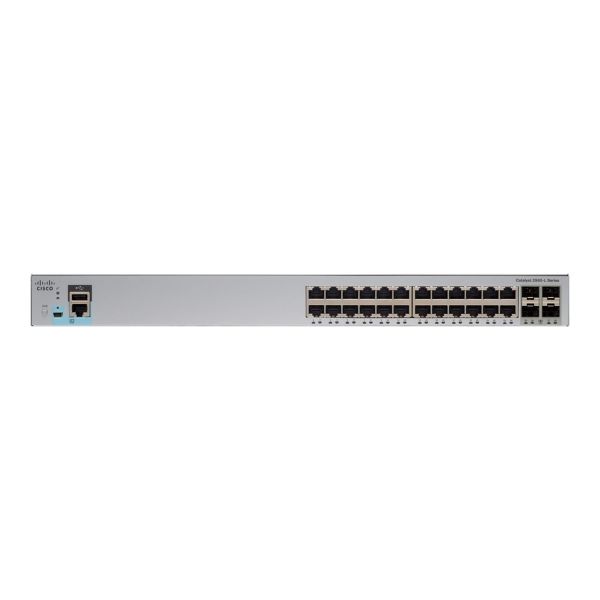

Cisco Catalyst 2960L-24TS-LL

Be the first to review this product

Availability: Out of stock

SKU

WS-C2960L-24TS-LL

UPC Code

882658965159

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The Cisco Catalyst 2960L-24TS-LL Network Switch is an enterprise-class, fixed Gigabit Ethernet switch designed for small- and medium-sized businesses. This secure network switch is ideal for critical IoT (Internet of Things) deployments. It operates on Cisco IOS Software and supports simple device management via CLI (command-line interface) as well as an on-box web interface.

Specifications

General Information
Category	Network switches
Description	Cisco Catalyst 2960L-24TS-LL - Switch - managed - 24 x 10/100/1000 + 4 x Gigabit SFP (uplink) - desktop, rack-mountable
Manufacturer	Cisco Systems
MSRP	$2,238.14
UNSPSC	43222612
Main Specifications
Dimensions & Weight / Depth	24 cm
Dimensions & Weight / Height	4.4 cm
Dimensions & Weight / Weight	3 kg
Dimensions & Weight / Width	44.5 cm
Header / Brand	Cisco
Miscellaneous / Product Color	Gray
Networking / Form Factor	Desktop Rack-mountable
Networking / Ports Qty	24
Networking / Type	Switch
Packaged Quantity	1
Dimensions & Weight
Depth	24 cm
Height	4.4 cm
Weight	3 kg
Width	44.5 cm
Environmental Parameters
Humidity Range Operating	5 - 90%
Humidity Range Storage	5 - 95%
Max Operating Temperature	55 °C
Max Storage Temperature	70 °C
Min Operating Temperature	-5 °C
Min Storage Temperature	-25 °C
Expansion / Connectivity
Interfaces	24 x 1000Base-T RJ-45 1 x console RJ-45 1 x console (mini-USB) Type B 1 x USB Type A 4 x 1000Base-X SFP uplink
General
Authentication Method	Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Capacity	MAC addresses: 8000 VLANs supported: 4094 Active VLANs: 64 SPAN bidirectional sessions: 1
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.3ah, IEEE 802.3az
Device Type	Switch - 24 ports - managed
Enclosure Type	Desktop, rack-mountable
Features	Layer 2 switching, ARP support, RSTP support, MSTP support, DHCP snooping, DTP support, PAgP support, TFTP support, ACL support, RADIUS support, DAI, Cisco EnergyWise technology, UDLD, fanless, LACP, MAC Address Notification, PVRST, per-port broadcast throttling, GVRP, SNMP support, IGMP filtering, VTP, BPDU, STRG, NTP
Flash Memory	256 MB
Jumbo Frame Support	10240 bytes
Performance	Switching bandwidth: 56 Gbps Forwarding bandwidth: 28 Gbps
Ports	24 x 10/100/1000 + 4 x Gigabit SFP (uplink)
Processor	ARM7: 800 MHz
RAM	512 MB
Remote Management Protocol	SNMP 3, CLI
Routing Protocol	IGMP
Status Indicators	System, status, PoE, link/speed
Subtype	Gigabit Ethernet
Miscellaneous
Compliant Standards	CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, RoHS 2011/65/EU, AS/NZS CISPR22:2004 Class A, FCC CFR47 Part 15 B Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300386
MTBF	2,412,947 hours
Power
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50 - 60 Hz)
Software / System Requirements
Software Included	Cisco IOS LAN Lite
