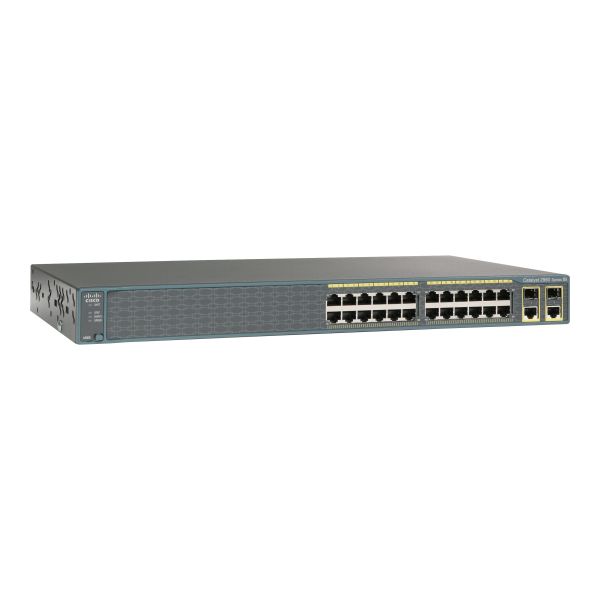

Cisco Catalyst 2960-Plus 24TC-S

Be the first to review this product

Availability: Out of stock

SKU

WS-C2960+24TC-S

UPC Code

882658602160

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The Cisco Catalyst 2960-Plus Series Switches are fixed-configuration Fast Ethernet switches that provide enterprise-class Layer 2 switching for branch offices, conventional workspaces, and infrastructure applications. They enable reliable and secure operations with lower total cost of ownerJTFp through a range of Cisco IOS software features, including Cisco Catalyst SmartOperations.

Specifications

General Information
Category	Network switches
Description	Cisco Catalyst 2960-Plus 24TC-S - Switch - Managed - 24 x 10/100 + 2 x combo Gigabit SFP - rack-mountable
Manufacturer	Cisco Systems
MSRP	$1,288.73
UNSPSC	43222612
Main Specifications
Dimensions & Weight / Depth	24.2 cm
Dimensions & Weight / Height	4.4 cm
Dimensions & Weight / Weight	3.6 kg
Dimensions & Weight / Width	45 cm
Header / Brand	Cisco
Networking / Form Factor	Rack-mountable
Networking / Ports Qty	24
Networking / Type	Switch
Packaged Quantity	1
Service & Support / Type	Limited lifetime warranty
Dimensions & Weight
Depth	24.2 cm
Height	4.4 cm
Weight	3.6 kg
Width	45 cm
Environmental Parameters
Humidity Range Operating	10 - 95% (non-condensing)
Humidity Range Storage	10 - 95% (non-condensing)
Max Operating Temperature	40 °C
Max Storage Temperature	70 °C
Min Operating Temperature	-5 °C
Min Storage Temperature	-25 °C
Expansion / Connectivity
Interfaces	24 x 100Base-TX RJ-45 2 x SFP (mini-GBIC) 2 x 1000Base-T RJ-45
General
Authentication Method	RADIUS, TACACS+
Capacity	Active VLANs: 64
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP)
Device Type	Switch - 24 ports - managed
Enclosure Type	Rack-mountable 1U
Features	Layer 2 switching, auto-sensing per device, DHCP support, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, RSTP support, MSTP support, DTP support, PAgP support, QoS, LACP, Port Security, MAC Address Notification
Flash Memory	64 MB
Jumbo Frame Support	9018 bytes
Performance	Switching capacity: 16 Gbps Forwarding performance (64-byte packet size): 6.5 Mpps
Ports	24 x 10/100 + 2 x combo Gigabit SFP
RAM	128 MB
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP
Status Indicators	Port status, port transmission speed, port duplex mode, power, system, link/activity
Subtype	Fast Ethernet
Manufacturer Warranty
Service & Support	Limited warranty - replacement - lifetime Limited warranty - power supply and fans - 5 years New releases update
Miscellaneous
Compliant Standards	FCC Class A certified, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN22, KN24, EN 300 386
Rack Mounting Kit	Optional
Power
Features	Redundant Power System (RPS) connector
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Software / System Requirements
Software Included	Cisco IOS LAN Lite
