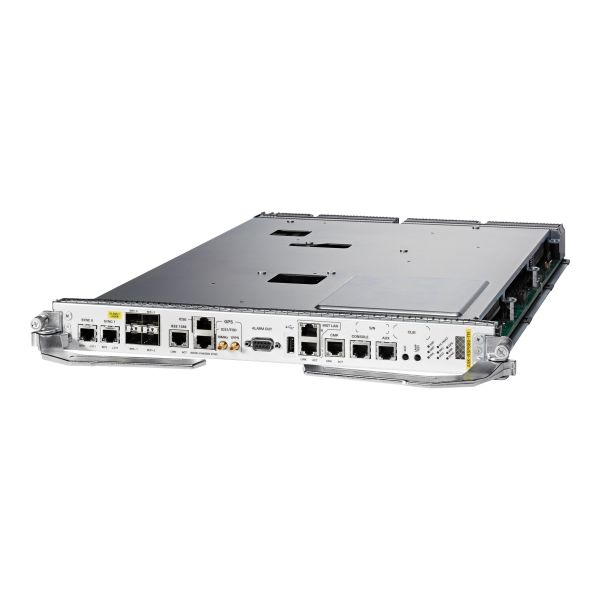

Cisco ASR 9000 Route Switch Processor 880 for Service Edge 32G

Be the first to review this product

Availability: Out of stock

SKU

A9K-RSP880-SE

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The Cisco ASR 9000 Series Route Switch Processor (RSP) is a scalable, low-power, carrier Ethernet platform with a system architecture specifically designed to accommodate service providers' unique convergence requirements of Layer 2 Ethernet transport plus Layer 3 services. The Cisco ASR 9000 Series Route Switch Processor (RSP) is designed to deliver the high scalability, performance, and fast convergence required for demanding video, cloud, and mobile services.

Specifications

General Information
Category	Network management system
Description	Cisco ASR 9000 Route Switch Processor 880 for Service Edge 32G - Control processor - plug-in module - for ASR 9006, 9010, 9904
Manufacturer	Cisco Systems
MSRP	$144,740.08
UNSPSC	43222634
Main Specifications
Dimensions & Weight / Depth	62.89 cm
Dimensions & Weight / Height	4.6 cm
Dimensions & Weight / Weight	8.07 kg
Dimensions & Weight / Width	42.85 cm
Header / Brand	Cisco
Networking / Connectivity Technology	Wired
Networking / Form Factor	Plug-in module
Networking / Type	Control processor
Packaged Quantity	1
Service & Support / Type	1-year warranty
Compatibility Information
Designed For	Cisco ASR 9006, 9006 Chassis, 9006 DC Chasis V2, 9006 with PEM Version 2, 9010, 9010 for High Scale, 9010 with PEM Version 2, 9904
Environmental Parameters
Humidity Range Operating	10 - 90% (non-condensing)
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
Expansion / Connectivity
Interfaces	1 x console - RJ-45 1 x auxiliary - RJ-45 2 x 1000Base-T (management) - RJ-45 4 x 10Gb Ethernet - SFP+ 1 x alarm - DB-9 2 x management (alarm) - RJ-45 1 x USB 2.0 - Type A 1 x management (100Base-TX) - RJ-45
General
Depth	62.89 cm
Device Type	Control processor
Height	4.6 cm
Weight	8.07 kg
Width	42.85 cm
Manufacturer Warranty
Service & Support	Limited warranty - 1 year
Miscellaneous
Compliant Standards	FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, ACA TS001, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, EN 60825, FDA, AS/NZS 3548 Class A, BSMI Class A, AS/NZS 60950, EN 50121-4, GR-1089-CORE, IEC 60825, VCCI Class A, GR-63-CORE, IEC/UL/CSA/EN 60950-1, EN 300 386
Networking
Compliant Standards	IEEE 1588-2008
Connectivity Technology	Wired
Features	Precision Time Protocol (PTP)
Form Factor	Plug-in module
Processor / Memory / Storage
Flash Memory	8 GB
Hard Drive	SSD 32 GB x 2
Processors Installed	1.9 GHz
RAM	32 GB
