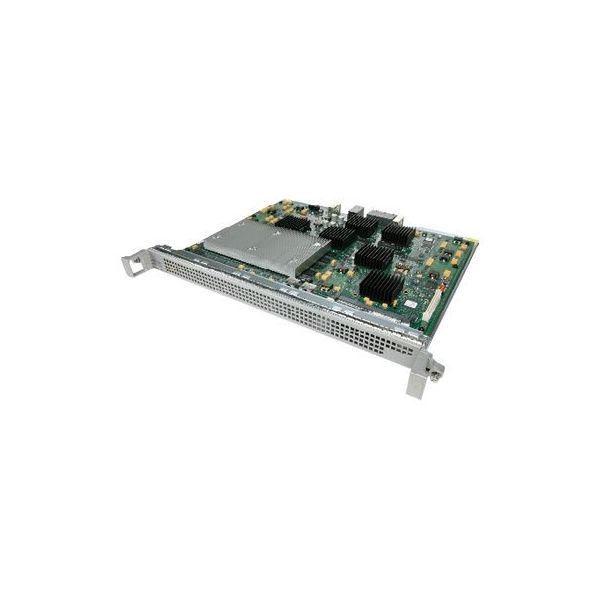

Cisco ASR 1000 Series Embedded Services Processor 20Gbps

Be the first to review this product

Availability: Out of stock

SKU

ASR1000-ESP20=

UPC Code

882658229008

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The Cisco ASR 1000 Series 20-Gbps Embedded Services Processor (ESP) is based on the innovative Cisco QuantumFlow Processor for next-generation forwarding and queuing in silicon. The Cisco ASR 1000 Series ESP is responsible for data-plane processing tasks, and all network traffic flows through them, enhancing a range of advanced services from service provider broadband and edge services to enterprise-level WAN aggregation and IP gateway services.

Specifications

General Information
Category	motherboards or daughterboards
Description	Cisco ASR 1000 Series Embedded Services Processor 20Gbps - Control processor - plug-in module - for ASR 1004, 1006
Manufacturer	Cisco Systems
MSRP	$41,300.00
UNSPSC	43201513
Main Specifications
Dimensions & Weight / Depth	36 cm
Dimensions & Weight / Height	2 cm
Dimensions & Weight / Width	42.8 cm
Header / Brand	Cisco
Networking / Connectivity Technology	Wired
Networking / Form Factor	Plug-in module
Networking / Type	Control processor
Packaged Quantity	1
Compatibility Information
Designed For	Cisco ASR 1004, 1004 FPI Bundle, 1004 HA Bundle, 1004 Security HA Bundle, 1004 VPN and Firewall Bundle, 1004 VPN Bundle, 1006, 1006 BB Bundle, 1006 FPI Bundle, 1006 HA Bundle, 1006 Security HA Bundle, 1006 VPN and Firewall Bundle, 1006 VPN Bundle
Environmental Parameters
Humidity Range Operating	5 - 85%
Max Operating Temperature	40 °C
Min Operating Temperature	5 °C
Expansion / Connectivity
Compatible Slots	1 x expansion slot
General
Depth	36 cm
Device Type	Control processor
Height	2 cm
Width	42.8 cm
Miscellaneous
Compliant Standards	CISPR 24, EN 60950, VCCI Class A ITE, IEC 60950, EN55024, EN 55022 Class A, UL 60950, CISPR 22, EN50082-1, CSA 22.2 No. 60950, EN 61000-4-2, EN 61000-4-6, EN 50082-2, EN 61000-4-11, AS/NZS 3548:1995, EN 300 386
Networking
Capacity	IPv4 routes: 1000000 IPv6 routes: 250000 ACL rules: 16000 IPSec VPN tunnels: 10000 NAT entries: 1000000
Connectivity Technology	Wired
Features	Firewall protection, NAT support, IPv6 support, Quality of Service (QoS)
Form Factor	Plug-in module
Performance	Bandwidth: 20 Gbps
Remote Management Protocol	SNMP, Telnet
Status Indicators	Power, active, standby, status
Processor / Memory / Storage
RAM	4 GB
