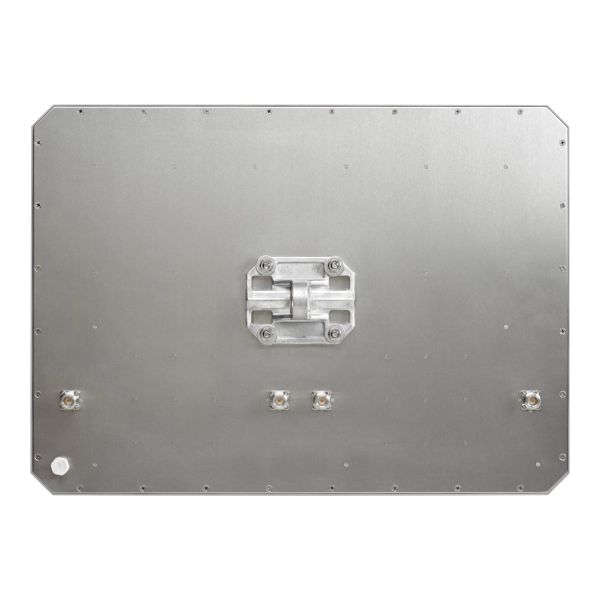

Cisco Aironet Four-Port Dual-Band Polarization-Diverse Antenna
The Cisco Aironet AIR-ANT2513P4M-N= Dual-Band Directional Wi-Fi Patch Antenna is designed with improved coverage and performance in mind. This FCC-approved patch antenna directs the energy it receives from the transmitter to provide more energy in one direction and less energy in all other directions.
| General Information | |
|---|---|
| Category | Radio antennas |
| Description | Cisco Aironet Four-Port Dual-Band Polarization-Diverse Antenna - Antenna - Wi-Fi - 13 dBi - directional - outdoor, ceiling mountable, wall-mountable, pole mount, indoor |
| Manufacturer | Cisco Systems |
| MSRP | $2,016.89 |
| UNSPSC | 43221706 |
| Main Specifications | |
| Dimensions & Weight / Depth | 36.8 cm |
| Dimensions & Weight / Height | 2.11 cm |
| Dimensions & Weight / Weight | 2.3 kg |
| Dimensions & Weight / Width | 50.7 cm |
| Header / Brand | Cisco |
| Packaged Quantity | 1 |
| Product Type | Antenna |
| Antenna | |
| Antenna Placing / Mounting | Outdoor, ceiling mountable, wall-mountable, pole mount, indoor |
| Compatibility | 802.11n |
| Directivity | Directional |
| Frequency Range | 2.4 - 2.5 GHz, 5.15 - 5.925 GHz |
| Gain | 13 dBi |
| Impedance | 50 ohm |
| Intended For | Wi-Fi |
| Voltage Standing Wave Ratio (VSWR) | 1.6:1 (for 2400-2500 MHz), 2.0:1 (for 5150-5700 MHz), 1.5:1 (for 5700-5900 MHz) |
| Cabling & Wiring | |
| Connector Provided | 4 x N connector |
| Environmental Parameters | |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -30 °C |
| General | |
| Depth | 36.8 cm |
| Height | 2.11 cm |
| Product Type | Antenna |
| Weight | 2.3 kg |
| Width | 50.7 cm |
| Miscellaneous | |
| Compliant Standards | IP67 |
| Mounting Kit | Included |
