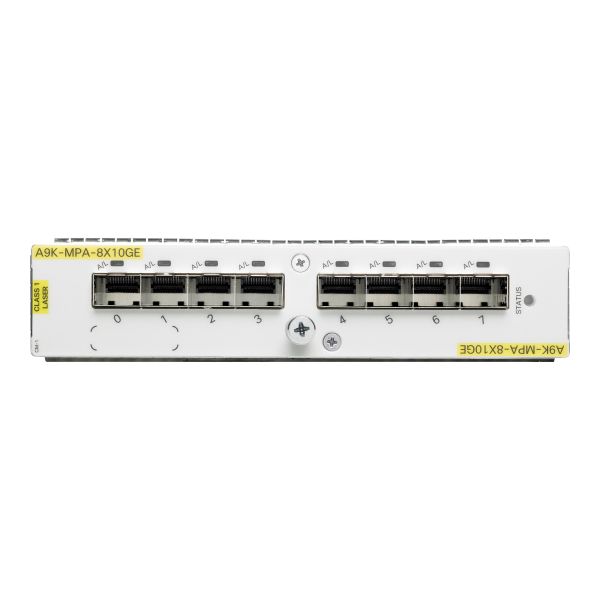

Cisco 8-port 10-Gigabit Ethernet Modular Port Adapter
The Cisco ASR 9000 Series modular line cards provide customers with a flexible solution supporting multiple combinations of Ethernet ports, all in a single slot of the Cisco ASR 9000 Series aggregation services routers. Modular line cards support a wide range of interfaces and densities offering the benefits of network scalability with lower initial costs and ease of upgrades. The Cisco ASR 9000 modular line cards continue the Cisco focus on investment protection along with consistent feature support, broad interface availability, and advanced technology. Using the modular line cards, the Cisco ASR 9000 Series can support customer applications including video-on-demand, Internet Protocol Television (IPTV), point-to-point video, Internet video, and cloud-based computing. These line cards can also be used to deliver economical, scalable, highly available, line-rate Ethernet, and IP/Multiprotocol Label Switching (IP/MPLS) edge services. The Cisco ASR 9000 Series line cards and routers are designed to provide the fundamental infrastructure for scalable Carrier Ethernet and IP/MPLS networks, supporting profitable business, residential, and mobile services
| General Information | |
|---|---|
| Category | Network interface cards |
| Description | Cisco 8-port 10-Gigabit Ethernet Modular Port Adapter - Expansion module - 10 Gigabit SFP+ x 8 - for ASR 9001, 9006, 9010, 9904, 9910, 9912, 9922 |
| Manufacturer | Cisco Systems |
| MSRP | $110,512.12 |
| UNSPSC | 43201404 |
| Main Specifications | |
| Dimensions & Weight / Depth | 17 cm |
| Dimensions & Weight / Height | 3.45 cm |
| Dimensions & Weight / Weight | 790 g |
| Dimensions & Weight / Width | 16.2 cm |
| Header / Brand | Cisco |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | 10 Gigabit Ethernet |
| Networking / Type | Expansion module |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Compatibility Information | |
| Designed For | Cisco ASR 9001, 9006, 9006 Chassis, 9006 DC Chasis V2, 9006 with PEM Version 2, 9010, 9010 for High Scale, 9010 with PEM Version 2, 9904, 9910, 9910 Chassis, 9912, 9912 DC Chassis V2, 9912 TH, 9922, 9922 Chassis with PEM Version 2 |
| Dimensions & Weight | |
| Depth | 17 cm |
| Height | 3.45 cm |
| Weight | 790 g |
| Width | 16.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 85% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
| Interfaces | 8 - SFP+ |
| General | |
| Device Type | Expansion module |
| Form Factor | Plug-in module |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, EN55022, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, ACA TS001, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, EN 60825, FDA, AS/NZS 3548 Class A, BSMI Class A, AS/NZS 60950, GR-1089-CORE, IEC 60825, VCCI Class A, GR-63-CORE, IEC/UL/CSA/EN 60950-1, EN 300 386 |
| Networking | |
| Compliant Standards | IEEE 802.3, IEEE 802.3x, IEEE 802.3ah, IEEE 802.1ag, ITU-T Y.1731 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet |
| Features | Flow control, full duplex capability, MPLS support, QoS, NetFlow, VCCV |
| Ports | 10 Gigabit SFP+ x 8 |
