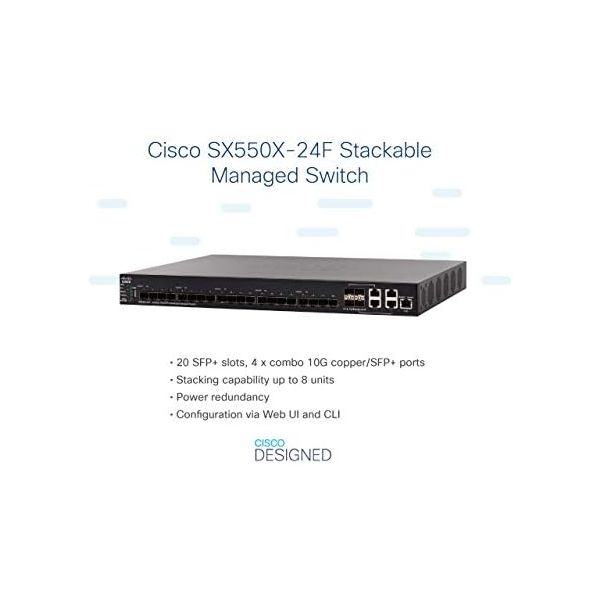

Cisco 550X Series SX550X-24

Be the first to review this product

Availability: Out of stock

SKU

SX550X-24-K9-NA

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The Cisco SX550X-24-K9-NA Switch is a next-generation managed switch that offers excellent performance, rich features, and ease of use. With support for Layer 2 and 3 features, advanced security, routing, and energy-saving technology, it delivers a solid foundation for business applications today and in the future.

Specifications

General Information
Category	Network switches
Description	Cisco 550X Series SX550X-24 - Switch - L3 - managed - 20 x 10GBase-T + 4 x combo 10 Gigabit SFP+ - desktop, rack-mountable
Manufacturer	Cisco Systems
MSRP	$8,832.92
UNSPSC	43222612
Main Specifications
Dimensions & Weight / Depth	4.4 cm
Dimensions & Weight / Height	35 cm
Dimensions & Weight / Weight	5.16 kg
Dimensions & Weight / Width	44 cm
Header / Brand	Cisco
Header / Country Kits	North America
Miscellaneous / Product Color	Black
Networking / Form Factor	Desktop Rack-mountable
Networking / Ports Qty	24
Networking / Type	Switch
Packaged Quantity	1
Service & Support / Type	Limited lifetime warranty
Dimensions & Weight
Depth	4.4 cm
Height	35 cm
Weight	5.16 kg
Width	44 cm
Environmental Parameters
Humidity Range Operating	10 - 90% (non-condensing)
Humidity Range Storage	10 - 90% (non-condensing)
Max Operating Temperature	50 °C
Max Storage Temperature	70 °C
Min Operating Temperature	0 °C
Min Storage Temperature	-20 °C
Expansion / Connectivity
Interfaces	10 x 10GBase-T RJ-45 4 x 10GBase-T RJ-45 4 x 10GBase-X SFP+ 1 x console RJ-45 1 x USB Type A 1 x management (Gigabit LAN)
General
Authentication Method	RADIUS, TACACS, TACACS+
Capacity	VLANs supported: 4094 IPv4 routes (static): 7168 IPv6 routes (static): 1792 ACL rules: 2000 QoS hardware queues: 8
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az
Device Type	Switch - 24 ports - L3 - managed - stackable
Enclosure Type	Desktop, rack-mountable 1U
Encryption Algorithm	SSL
Features	Flow control, DHCP support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, WRR queuing, Broadcast Storm Control, IPv6 support, High Availability, Multicast Storm Control, Unicast Storm Control, firmware upgradable, sFlow, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, DHCP server, DAI, reset button, STP Root Guard, UDLD, DHCP relay, RSPAN, DHCP client, MIB, dual firmware images, CoS, GARP, GVRP, Duplicated Address Detection, DSCP support, Time-controlled ACLs support, 3MB packet buffer, Storm Control, IP source guard, ARP inspection, ICMP, Cisco Discovery Protocol, IGMP querier, VLAN Double Tagging (Q-in-Q), VLAN mirroring, DNS client, Voice VLAN, SCT, LLDP-MED, HOL blocking, IPMB, SSD, Private VLAN, ISATAP tunnel support, RA guard, Guest VLAN, STP BPDU Guard
Flash Memory	256 MB
Jumbo Frame Support	9000 bytes
MAC Address Table Size	32000 entries
Max Units In A Stack	8
Performance	Forwarding performance (64-byte packet size): 240 Mbps Switching capacity: 480 Gbps
Ports	20 x 10GBase-T + 4 x combo 10 Gigabit SFP+
Processor	X ARM: 1.3 GHz
RAM	512 MB
Remote Management Protocol	SNMP 1, SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP
Routing Protocol	RIP-2, IGMPv2, IGMP, IGMPv3, policy-based routing (PBR), MLDv2, MLD, VRRPv2, VRRPv3, CIDR
Status Indicators	Port transmission speed, system, RPS (Redundant Power Supply), link/activity, fan
Subtype	10 Gigabit Ethernet
Manufacturer Warranty
Service & Support	Limited warranty - replacement - lifetime - response time: next business day Technical support - phone consulting - 1 year Technical support - web support - 1 year
Miscellaneous
Cables Included	1 x console cable
Compliant Standards	Plug and Play, UL 60950, CSA 22.2, FCC CFR47 Part 15 A, USGv6
Localization	North America
MTBF	289,691 hours
Rack Mounting Kit	Included
Power
Features	Redundant Power System (RPS) connector
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
