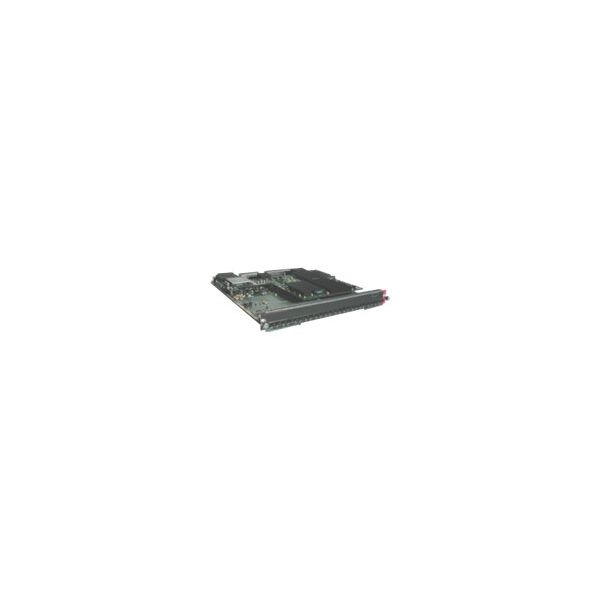

Cisco 24-Port 1 Gigabit SFP Fiber Ethernet Module with DFC4

Be the first to review this product

Availability: Out of stock

SKU

WS-X6824-SFP-2T=

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

Designed for high performance enterprise and service provider distribution, core layers, data-center, web-hosting and Metro Ethernet applications, this fiber media interface module provides Gigabit Ethernet forwarding using fiber optic or twisted pair cabling.

Specifications

General Information
Category	Network interface cards
Description	Cisco 24-Port 1 Gigabit SFP Fiber Ethernet Module with DFC4 - Expansion module - 1GbE - 24 ports - for Catalyst 6503-E, 6504-E, 6506-E, 6506-E IDSM-2, 6509-E, 6509-E 10Gig, 6509-V-E, 6513-E
Manufacturer	Cisco Systems
MSRP	$17,310.38
UNSPSC	43201404
Main Specifications
Dimensions & Weight / Depth	40.6 cm
Dimensions & Weight / Height	3 cm
Dimensions & Weight / Width	35.6 cm
Header / Brand	Cisco
Networking / Connectivity Technology	Wired
Networking / Data Link Protocol	Gigabit Ethernet
Networking / Data Transfer Rate	10 Gbps
Networking / Type	Expansion module
Packaged Quantity	1
Compatibility Information
Designed For	Cisco Catalyst 6503-E, 6503-E chassis with Supervisor Engine 32, 6503-E Firewall Security System Bundle, 6503-E WSLM Bundle, 6504-E, 6504-E Application Control Engine (ACE) 20 Bundle, 6504-E chassis with Supervisor Engine 32, 6504-E with Supervisor Engine 720-3B, 6504-E with WiSM Bundle, 6506-E, 6506-E chassis with Supervisor Engine 32, 6506-E Firewall Security System Bundle, 6506-E IDSM-2 Bundle with 2-Gbps Performance, 6506-E IPSec VPN SPA Security System Bundle, 6506-E VPN System, 6506-E WLSM Bundle, 6509-E, 6509-E 10Gig Firewall Security System Bundle, 6509-E Application Control Engine (ACE) 20 Bundle, 6509-E Application Control Engine (ACE) 30 8G Bundle, 6509-E chassis with Supervisor Engine 32, 6509-E Data Center Services Bundle, 6509-E Firewall Security System Bundle, 6509-E Firewall Security System Bundle with Supervisor Engine 720-3BXL, 6509-E IPSec VPN SPA Security System, 6509-E with Supervisor Engine 720, 6509-E with WiSM Bundle, 6509-V-E, 6513-E
Dimensions & Weight
Depth	40.6 cm
Height	3 cm
Width	35.6 cm
Environmental Parameters
Humidity Range Operating	10 - 90% (non-condensing)
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
Expansion / Connectivity
Compatible Slots	1 x expansion slot
Expansion Slots	24 (total) / 24 (free) x SFP
General
Device Type	Expansion module - 24 ports
Form Factor	Plug-in module
Miscellaneous
Compliant Standards	FCC Class A certified, CISPR 22 Class A, EN 60950, VCCI Class A ITE, IEC 60950, EN55024, EN55022 Class A, UL 60950, CSA 22.2 No. 60950, FCC CFR47 Part 15
Networking
Compliant Standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ak, IEEE 802.1ae, IEEE 802.3an, IEEE 802.3aq
Connectivity Technology	Wired
Data Link Protocol	Gigabit Ethernet
Data Transfer Rate	10 Gbps
Features	Jumbo Frames support
Processor / Memory
RAM	1 GB
