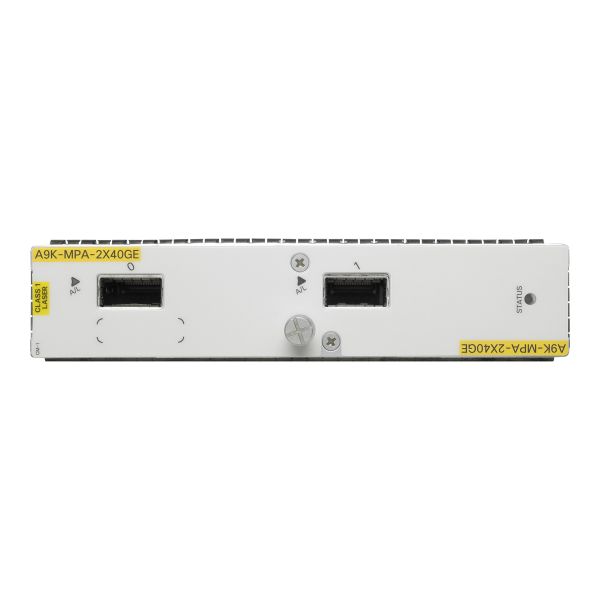

Cisco 2-port 40-Gigabit Ethernet Modular Port Adapter

Be the first to review this product

Availability: Out of stock

SKU

A9K-MPA-2X40GE

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

Using modular line cards along with port adapters, the ASR 9000 Series can support a wide range of customer applications, including video on demand, Internet Protocol Television (IPTV), point-to-point video, Internet video, and cloud-based computing. The line cards can also be used to deliver economical, scalable, highly available, line-rate Ethernet, and IP/Multiprotocol Label Switching (IP/MPLS) edge services.

Specifications

General Information
Category	Network interface cards
Description	Cisco 2-port 40-Gigabit Ethernet Modular Port Adapter - Expansion module - 40GbE - 2 ports - for ASR 9006, 9010, 9904, 9910, 9912, 9922
Manufacturer	Cisco Systems
MSRP	$127,226.97
UNSPSC	43201404
Main Specifications
Dimensions & Weight / Depth	17.01 cm
Dimensions & Weight / Height	3.45 cm
Dimensions & Weight / Weight	700 g
Dimensions & Weight / Width	16.17 cm
Header / Brand	Cisco
Networking / Connectivity Technology	Wired
Networking / Data Link Protocol	40 Gigabit Ethernet
Networking / Data Transfer Rate	40 Gbps
Networking / Type	Expansion module
Packaged Quantity	1
Service & Support / Type	1-year warranty
Compatibility Information
Designed For	Cisco ASR 9006, 9006 Chassis, 9006 DC Chasis V2, 9006 with PEM Version 2, 9010, 9010 for High Scale, 9010 with PEM Version 2, 9904, 9910, 9910 Chassis, 9912, 9912 DC Chassis V2, 9912 TH, 9922, 9922 Chassis with PEM Version 2
Dimensions & Weight
Depth	17.01 cm
Height	3.45 cm
Weight	700 g
Width	16.17 cm
Environmental Parameters
Humidity Range Operating	10 - 85%
Max Operating Temperature	40 °C
Min Operating Temperature	5 °C
Expansion / Connectivity
Compatible Slots	1 x expansion slot
Interfaces	2 x 40Gb Ethernet - QSFP
General
Device Type	Expansion module - 2 ports
Form Factor	Plug-in module
Manufacturer Warranty
Service & Support	Limited warranty - 1 year
Miscellaneous
Compliant Standards	NEBS level 3, FCC Class A certified, ETSI, CISPR 22 Class A, EN 61000-3-2, EN55022, VCCI Class A ITE, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, AS/NZ 3548 Class A, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825, FDA, CSA C22.2 No. 60950-1, BSMI Class A, GR-1089-CORE, EN 300 386
Networking
Compliant Standards	IEEE 802.3x, IEEE 802.3ah, IEEE 802.1ag, ITU-T G.709
Connectivity Technology	Wired
Data Link Protocol	40 Gigabit Ethernet
Data Transfer Rate	40 Gbps
Features	Flow control, full duplex capability, layer 3 switching, layer 2 switching, MPLS support, QoS, NetFlow
