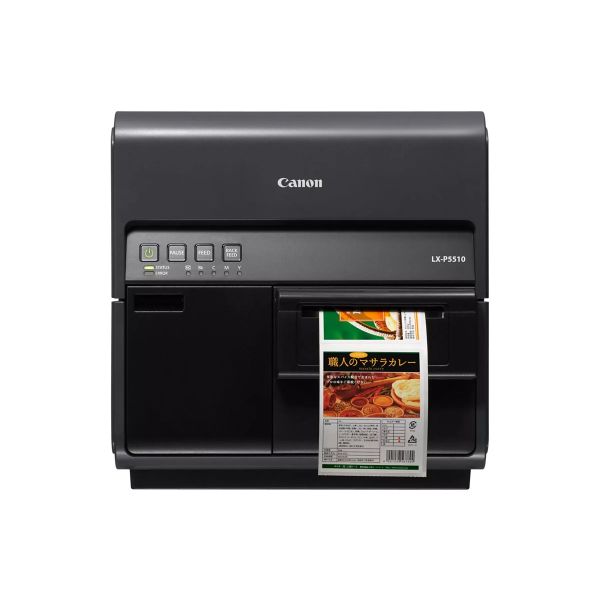

Canon LX-P5510 - Label printer

Be the first to review this product

Availability: Out of stock

SKU

4975B002

UPC Code

810771031116

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

The Canon LX-P5510 label printer is designed to be reliable and flexible, delivering high resolution, full color labels. By utilizing pigment-based ink for moisture resistance and durability, the LX-P5510 helps improve efficiency and productivity by creating long-lasting labels as needed.

Specifications

General Information
Category	Inkjet printers
Description	Canon LX-P5510 - Label printer - color - ink-jet - Roll (12 cm) - up to 300 mm/sec - USB 2.0, Gigabit LAN, RS232C - cutter - rewinder - with Advanced Exchange
Manufacturer	Canon
MSRP	$10,999.00
UNSPSC	43212104
Main Specifications
Dimensions & Weight / Depth	56.9 cm
Dimensions & Weight / Height	39.4 cm
Dimensions & Weight / Weight	25 kg
Dimensions & Weight / Width	38.6 cm
Header / Brand	Canon
Miscellaneous / Product Color	Black
Office Machine / Functions	Printer
Office Machine / Printing Output Type	Color
Office Machine / Printing Technology	Ink-jet
Office Machine / Type	Printer
Packaged Quantity	1
PC Connectivity / PC Connection	Gigabit LAN RS232C USB 2.0
Power Device / Type	Power adapter
Printer / Connectivity Technology	Wired
Printer / Type	Label printer
Scanner / Type	None
Service & Support / Type	1-year warranty
System Requirements / OS Required	Microsoft Windows 10 / 11
Dimensions & Weight
Depth	56.9 cm
Height	39.4 cm
Weight	25 kg
Width	38.6 cm
Dimensions & Weight (Shipping)
Depth (Shipping)	73.2 cm
Height (Shipping)	64 cm
Weight (Shipping)	32 kg
Width (Shipping)	56.4 cm
Environmental Parameters
Humidity Range Operating	10 - 90% RH (non-condensing)
Max Operating Temperature	35 °C
Min Operating Temperature	5 °C
Sound Emission (Operating)	55 dB
Expansion / Connectivity
Connections	1 x USB 2.0 - 4 pin USB Type A 1 x Gigabit LAN - RJ-45 1 x RS-232 - 9 pin D-Sub (DB-9)
General
Bundled Services	Advanced Exchange
Printer Type	Label printer - ink-jet - color
Manufacturer Warranty
Service & Support	Limited warranty - 1 year
Media Handling
Max Media Size	Roll (12 cm)
Max Media Size (Custom)	120 mm x 500 mm
Max Printing Length	497 mm
Max Printing Width	105.9 mm
Media Feeders	1 x manual - 1 roll - Roll (12 cm)
Media Sizes	Roll (12 cm)
Media Thickness Range	0.145 mm - 0.255 mm
Media Type	Labels, fanfold paper
Min Media Size (Custom)	25.4 mm x 6 mm
Roll Core Diameter	76.2 mm
Roll Maximum Outer Diameter	200 mm
Miscellaneous
Compliant Standards	TSCA, OSHA
Consumables Included	1 x ink cartridge (black) - 105 ml 1 x ink cartridge (yellow) - 105 ml 1 x ink cartridge (magenta) - 105 ml 1 x ink cartridge (cyan) - 105 ml 2 x cleaning sticks 20 x installation adjustment sheets
Features	8 LED indicators
Included Accessories	Power cable, scraper
Power
Frequency Required	50/60 Hz
Power Consumption Operational	268 Watt
Power Consumption Sleep	9 Watt
Power Device	Power adapter - external
Voltage Required	AC 100-240 V
Printer
Auto Cutter	Yes
Connectivity Technology	Wired
Features	Rewinder
First Print Out Time B/W	10 sec
First Print Out Time Color	10 sec
Ink Palette Supported (Colors)	4-ink
Interface	USB 2.0, Gigabit LAN, RS232C
Max Resolution (Color)	1200 x 1200 dpi
Nozzle Configuration	5184 nozzles
Print Speed	Up to 300 mm/sec - max speed
Software / System Requirements
OS Required	Microsoft Windows 10 / 11
