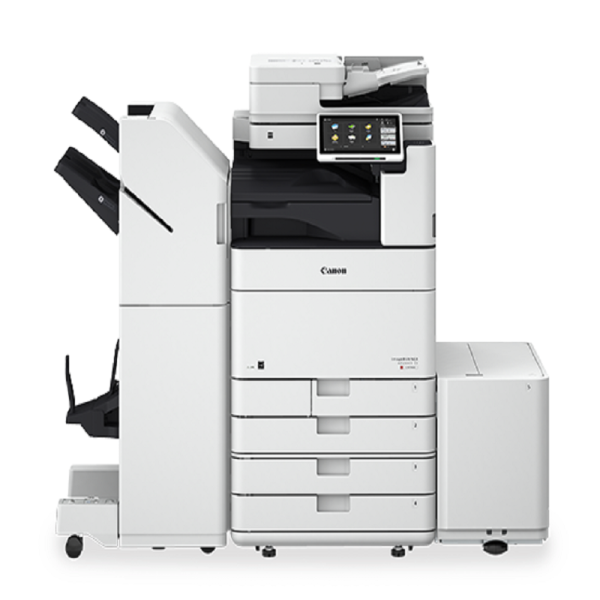

Canon imageRUNNER ADVANCE DX C5760i Multifunction Printer

Canon imageRUNNER ADVANCE DX C5760i Multifunction Printer

• MAIN UNIT
  TYPE	Color Laser Multifunctional
  CORE FUNCTIONS	Standard: Print, Copy, Scan, Send, Store Optional: Fax
  PROCESSOR	1.75GHz Dual Core Processor
  CONTROL PANEL	10.1" TFT LCD WSVGA Color Flat-panel
  MEMORY	4.0 GB RAM
  HARD DISK DRIVE	Standard: 250 GB/Maximum: 1 TB
  PRINT RESOLUTION	1200 x 1200
  INTERFACE CONNECTION	Network: 1000Base-T/100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n) Others Standard: USB 2.0 (Host) x1, USB 3.0 x1 (Host), USB 2.0 x1 (Device)
  PAPER CAPACITY (LETTER, 20 LB. BOND)	Standard: 1,200 Sheets Maximum: 6,350 Sheets
  PAPER SOURCES (LETTER, 20 LB. BOND)	Standard: Dual 550-sheet Paper Cassettes, 100-sheet Stack Bypass
  PAPER OUTPUT CAPACITY (LETTER, 20 LB. BOND)	Standard: 250 Sheets Maximum: 3,450 Sheets (with External Finisher and Copy Tray)
  FINISHING CAPABILITIES	Standard: Collate, Group
  SUPPORTED MEDIA TYPES	Multi-Purpose Tray: Thin, Plain, Recycled, Color, Heavy, Coated, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, Tab, Envelope Paper Cassettes: Thin, Plain, Recycled, Color, Heavy, Bond, Transparency, Pre-punched, Letterhead, Envelope1
  SUPPORTED MEDIA SIZES	Upper Cassette: Letter, Executive, Statement-R, Envelope [No.10 (COM10), DL, ISO-C5], Custom Size (3-7/8" x 5-7/8" to 11-3/4" x 8-1/2") Lower Cassette: 12" x 18", 11" x 17", Legal, Letter, Letter-R, Executive, Statement-R, Envelope [No.10 (COM10), Monarch, DL, ISO-C5], Custom Size (3-7/8" x 7-1/8" to 12" x 18") Multi-Purpose Tray: 12" x 18", 11" x 17", Legal, Letter, Letter-R, Executive, Statement, Statement-R, Envelope [No.10 (COM10), Monarch, DL, ISO-C5], Envelope Custom Size (3-7/8" x 3-7/8" to 12-5/8" x 18"), Custom Size/ Free Size (3-7/8" x 5-1/2" to 12-5/8" x 18")
  SUPPORTED MEDIA WEIGHTS	Cassettes: 14 lb. Bond to 140 lb. Index (52 to 256 g/m2) Stack Bypass: 14 lb. Bond to 110 lb. Cover (52 to 300 g/m2) Duplexing: 14 lb. Bond to 80 lb. Cover (52 to 220 g/m2)
  PRINT/COPY SPEED (BW AND COLOR)	Up to 60 ppm (Letter);Up to 36 ppm (Letter-R); Up to 34 ppm (Legal); Up to 32 ppm (11" x 17")
  WARM-UP TIME	From Power On: Approx. 10 Seconds2 From Sleep Mode: Approx. 10 Seconds3 Quick Startup Mode: Approx. 4 Seconds4
  DIMENSIONS (W x D x H)	24-3/8" x 28-1/2" x 36-7/8" (620 x 722 x 937 mm)5
  INSTALLATION SPACE (W x D x H)	Basic: 42-5/8" x 45-3/4" (1,083 x 1,162 mm) (Right Cover Open with Multi-purpose tray extended + Cassette Drawers Open) Fully Configured: 73-1/2" x 45-3/4" (1,866 x 1,162 mm ) (Booklet Finisher-Y1 with the extension tray extended + Paper Deck Unit-F1 + Cassette Drawers open)
  WEIGHT	Approx. 310.9 lb. (141 kg)6
  PRINT SPECIFICATIONS
  STANDARD PAGE DESCRIPTION LANGUAGES	UFR II, PCL6, Adobe PS 3
  SUPPORTED FILES	PDF, TIFF, JPEG, EPS,7 XPS
  PRINTING FROM MOBILE AND CLOUD-BASED SERVICES	A range of standard and optional software and MEAP-based solutions (including AirPrint, Mopria, Google Cloud Print, Canon PRINT Business, and uniFLOW Online) are available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements. Please contact your sales representative for further information.
  FONTS	PCL: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé Mono WT J/K/S/T (Japanese, Korean, Simplified and Traditional Chinese),8 Barcode Fonts9 PS: 136 Roman
  OPERATING SYSTEM 10	UFRII/PS: Windows® 7/8.1/10/Server2008/ Server2008 R2/Server2012/Server2012 R2/Server2016/Server2019, Mac OS X (10.10 or later) PCL: Windows® 7/8.1/10/Server2008/ Server2008 R2/Server2012/Server2012 R2/Server2016/Server2019 PPD: Windows® 7/8.1/10, Mac OS X(10.9 or later)
  COPY SPECIFICATIONS
  FIRST-COPY-OUT-TIME	As fast as 2.9 seconds (BW)/ 4.5 seconds (Color)
  COPY RESOLUTION (dpi)	600 x 600
  MULTIPLE COPIES	Up to 999
  MAGNIFICATION	25%-400% (1% Increments)
  PRESET REDUCTION / ENLARGEMENT	25%, 50%, 64%, 73%, 78%, 100% (1:1), 121%, 129%, 200%, 400%
  SCAN SPECIFICATIONS
  TYPE	Single-Pass Duplexing Automatic Document Feeder
  DOCUMENT FEEDER PAPER CAPACITY	Up to 200 Sheets (20 lb. Bond)
  DOCUMENT FEEDER SUPPORTED MEDIA SIZES	11" x 17", Legal, Letter, Letter-R, Statement, Statement-R, Custom Size: 2-3/4" x 5-1/2" to 12" x 17"
  DOCUMENT FEEDER SUPPORTED MEDIA WEIGHTS	Single-Sided Scanning: 13.3 lb. Bond to 80 lb. Cover (50 to 220 gsm) (BW, CL) Double-Sided Scanning: 13.3 lb. Bond to 80 lb. Cover (50 to 220 gsm) (BW, CL)
  PLATEN ACCEPTABLE ORIGINALS	Sheet, Book, 3-Dimensional Objects
  PULL SCAN	Color Network ScanGear2 for both Twain and WIA Supported OS: Windows® 7/8.1/10/Server 2008/ Server 2008 R2/Server 2012/ Server 2012 R2/Server 2016
  SCAN RESOLUTION (dpi)	Scan for Copy: 600 x 600 Scan for Send: (Push) 600 x 600 (SMB/FTP/WebDAV/ IFAX), (Pull) 600 x 600 Scan for Fax: 600 x 600
  SCAN TO MOBILE DEVICES AND CLOUD-BASED SERVICES	A range of solutions is available to provide scanning to compatible mobile devices and certain cloud-based services depending on your requirements.
  SCAN SPEED (LETTER)	Single-sided Scanning: 135/135 (300 dpi), 80/80 (600 dpi), Double-sided Scanning: 270/270 (300 dpi), 160/90 (600 dpi)
  SEND SPECIFICATIONS
  DESTINATION	Standard: E-mail/Internet FAX (SMTP), SMB3.0, FTP, WebDAV, Mail Box
  ADDRESS BOOK	LDAP (2,000)/Local (1,600)/Speed Dial (200)
  SEND RESOLUTION	Push: Up to 600 x 600 Pull: Up to 600 x 600
  COMMUICATION PROTOCOL	File: FTP(TCP/IP), SMB3.0 (TCP/IP), WebDAV Email: SMTP, POP3
  FILE FORMAT	Standard: TIFF, JPEG, PDF (Encrypted, Compact, Searchable, Apply Policy, Optimize for Web, User Signature, PDF A/1-b, Limited Color, Device Signature, User Signature), XPS (Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word)
  FAX SPECIFICATIONS
  MODEM SPEED	Super G3: 33.6 Kbps G3: 14.4 Kbps
  COMPRESSION METHOD	MH, MR, MMR, JBIG
  RESOLUTION	400 x 400, 200 x 400, 200 x 200, 200 x 100
  SENDING / RECORDING SIZE	Statement-R to 11" x 17"
  FAX MEMORY	Up to 30,000 Pages (2,000 jobs)
  SPEED DIALS	Max. 200
  GROUP DIALS / DESTINATIONS	Max. 199 Dials
  SEQUENTIAL BROADCAST	Max. 256 Addresses
  MEMORY BACKUP	Yes
