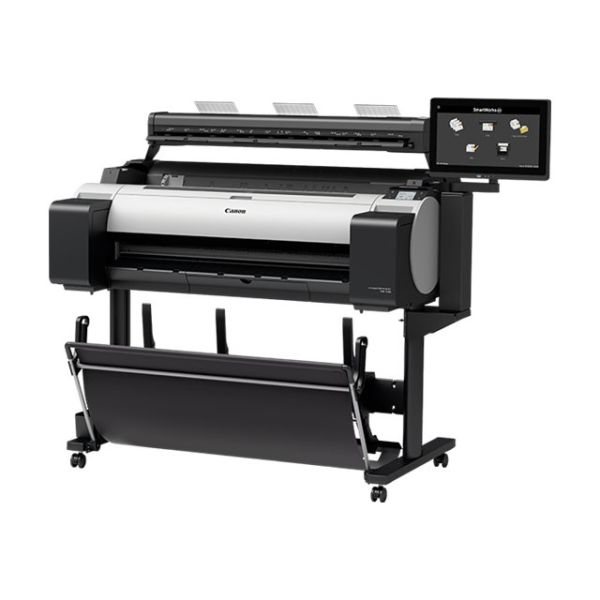

Canon imagePROGRAF TM-300 MFP Z36
| General Information | |
|---|---|
| Category | Scanners |
| Description | Canon imagePROGRAF TM-300 MFP Z36 - 36" multifunction printer - color - ink-jet - 965 mm width (original) - Roll (91.7 cm) (media) - Gigabit LAN, Wi-Fi(n), USB 3.0 |
| Manufacturer | Canon |
| MSRP | $4,620.00 |
| UNSPSC | 43211711 |
| Main Specifications | |
| Dimensions & Weight / Depth | 75.7 cm |
| Dimensions & Weight / Height | 106 cm |
| Dimensions & Weight / Weight | 60 kg |
| Dimensions & Weight / Width | 128.9 cm |
| Document & Media Handling / Large Format Printer Size | 36" |
| Header / Brand | Canon |
| Miscellaneous / Product Color |
|
| Office Machine / Functions |
|
| Office Machine / Printing Output Type | Color |
| Office Machine / Printing Technology | Ink-jet |
| Office Machine / Type | Printer / copier / scanner |
| Packaged Quantity | 1 |
| PC Connectivity / PC Connection |
|
| PC Connectivity / PC Connection Availability | Yes |
| Scanner / Automatic Duplexing | Yes |
| Scanner / Supported Document Type |
|
| Scanner / Type | Document scanner |
| Connections | |
| Interfaces |
|
| Operating System Support | MS Windows 7 (32/64 bits), Windows 8.1 (32/64-bits), Windows 10 (32/64-bits), MS Windows Server 2008 R2 x64 Edition, MS Windows Server 2012 x64 Edition, MS Windows Server 2012 R2 x64 Edition, MS Windows Server 2016 x64 Edition, Apple Mac OS X 10.10.5 - 10.11, macOS 10.13 |
| Software Included | Canon SmartWorks MFP V6, PosterArtist Lite, drivers & utilities |
| Dimensions & Weight | |
| Depth | 75.7 cm |
| Height | 106 cm |
| Weight | 60 kg |
| Width | 128.9 cm |
| Dimensions & Weight (JTFpping) | |
| JTFpping Depth | 91.3 cm |
| JTFpping Height | 96.1 cm |
| JTFpping Weight | 105 kg |
| JTFpping Width | 145.2 cm |
| Document & Media Handling | |
| Document & Media Handling Details | Input tray - 1 roll |
| Max Media Size | Other |
| Max Original Size | 965 mm width |
| Media Thickness Range | 0.07 mm - 0.8 mm |
| Original Type | Sheets |
| Speed Details |
|
| Supported Media Sizes | Roll (91.4 cm), Roll (20.32 cm), Roll (91.7 cm), Roll JIS B2 (51.5 cm), Roll (72.8 cm), Roll A1 (59.4 cm), Roll A0 (81.4 cm), Roll (25.4 cm), Roll (35.6 cm), Roll (43.2 cm), Roll (61 cm), Roll JIS B4 (25.7 cm), Roll A3 (29.7 cm), Roll A3 Plus (32.9 cm), Roll A2 (42 cm), Roll (30.48 cm), Roll (40.6 cm), Roll (50.8 cm), Roll (76.2 cm), Roll (30 cm), Roll (50 cm), Roll (60 cm), Roll (80 cm) |
| Supported Media Type | Plain paper, coated paper, tracing paper, matte film |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 80% (non-condensing) |
| Max Operating Temperature | 30 °C |
| Min Operating Temperature | 15 °C |
| Sound Emission | 35 dBA (idle) / 44 dBA (operating) |
| General | |
| AirPrint Enabled | Yes |
| Connection Availability | Yes |
| Device Type | 36" multifunction printer |
| Display Color Support | Color |
| Display Diagonal Size | 15.6" |
| Display Features | Touch screen |
| Interface | Gigabit LAN, Wi-Fi(n), USB 3.0 |
| Office Machine Features | SingleSensor Technology Assembly |
| Printing Technology | Ink-jet - color |
| Memory | |
| Standard Memory | 2 GB |
| Miscellaneous | |
| Compliant Standards | CB, EAC, TUV |
| Consumables Included |
|
| Included Accessories | Mounting kit, 2 paper edge guides, 3 document return guides, calibration target, USB 3.0 cable (2 m), stand, 3-inch core adapter, all-in-one touch screen computer |
| Power | |
| Power Consumption Operational | 69 Watt |
| Power Consumption Sleep | 3.6 Watt |
| Voltage Required | AC 120/230 V (50/60Hz) |
| Printing | |
| Color | 5-ink |
| Ink Cartridge Configuration | 5 individual ink tanks |
| Ink Palette Supported (Colors) | Cyan, magenta, yellow, black, matte black |
| Ink Type | Canon LUCIA TD pigment ink |
| Inkjet Technology | Canon FINE (Full-lithography inkjet Nozzle Engineering) |
| Max Printing Resolution | 2400 x 1200 dpi (color) |
| Max Printing Speed | 0.67 min/page (color) |
| Minimum Ink Droplet Size | 5 pl |
| Nozzle Configuration | 15360 nozzles |
| Printer Drivers / Emulations | Swift Graphic Raster (SGRaster), HPGL/2, HP-RTL, JPEG |
| Scanning | |
| Optical Resolution | 1200 dpi |
