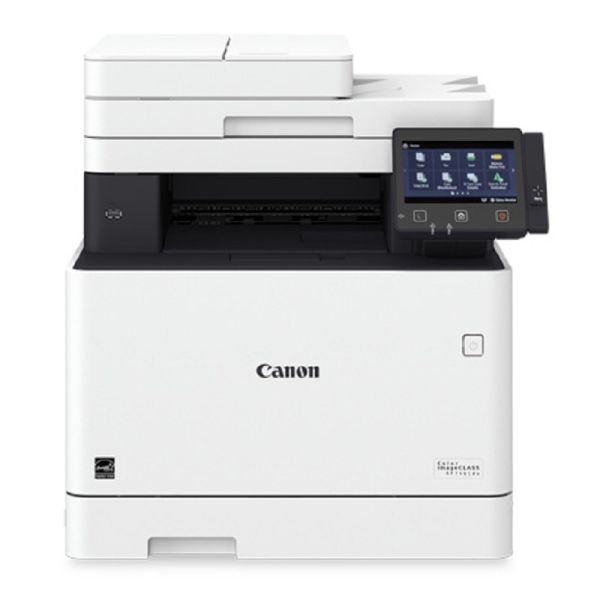

Canon imageCLASS MF746Cdw Desktop Color Multifunctional Laser Printer
- Desktop Color Multifunctional Laser Printer
- Standard: Print, Copy, Scan, Fax, Send (Lite)
- Processor Canon Custom Processor
- Paper Capacity (Letter, 20 lb. Bond) Standard: 300 Sheets, Maximum: 850 Sheets
- Dimensions (W x D x H)
- Standard (Desktop): 18.8" x 18.8" x 18.4"
- Weight Unit: Approx. 64 lb.
- Print Speed Up to 28 ppm (Letter); Up to 22.9 ppm (Legal)
- Print Resolution (dpi) 600 x 600
- Copy Speed Up to 28 ppm (Letter); Up to 22.9 ppm (Legal)
- Copy Resolution (dpi) 600 x 600
- Scan Resolution (dpi) Push Scan: Up to 300 x 600, Pull Scan: Up to 600 x 600
- Send Resolution (dpi) 600 x 600 (Pull Scan), 196 x 204 (iFax), 300 x 300 (Other)
- Fax Resolution (dpi) 400 x 400, 200 x 400, 200 x 200, 200 x 100
Canon imageCLASS MF746Cdw Desktop Color Multifunctional Laser Printer
Main Unit Core Functions Print, Copy, Scan, Fax, Send (Lite) Processor Canon Custom Processor Control Panel 5" Color Touch Panel Memory 1 GB Standard Interface Connection
USB 2.0 x2 (Host), USB 2.0 x1 (Device) High-Speed, 10/100/1000Base-T Ethernet (Network), Wi-Fi 802.11b/g/n, Wi-Fi® Direct Connection, Near Field Communication
Paper Capacity (Letter, 20 Lb. Bond)
Standard: 300 Sheets
Maximum: 850 SheetsPaper Sources (Letter, 20 Lb. Bond)
Standard: 250-sheet Paper Cassette, 50-sheet Stack Bypass
Optional: 550-sheet Paper Cassette (Cassette Unit AF-1)Paper Output Capacity (Letter, 20 Lb. Bond) 75 Sheets Supported Media Types
Cassettes: Thin, Plain, Recycled, Color, Thick, Coated, Label, Letter, Envelope (10 Envelopes)
Manual Feed Slot: Thin, Plain, Recycled, Color, Thick, Coated, Label, Letter, Envelope (1 Envelope)Supported Media Sizes
Cassettes: Letter, Legal, Statement, Executive
Envelope: COM10, Monarch, C5, DL,
Custom (Min. 3" x 5" to Max. 8.5" x 14")
Manual Feed Slot: Letter, Legal, Statement, Executive
Envelope: COM10, Monarch, C5, DL
Custom (Min. 3" x 5" to Max. 8.5" x 14")Supported Media Weights
Cassettes: 16 lb. Bond to 53 lb. Bond ( 60 to 200 g/m2)
Manual Feed Slot: 16 lb. Bond to 53 lb. Bond ( 60 to 200 g/m2)Warm-Up Time
From Power On: 13 Seconds or Less;
From Sleep Mode: 6.1 Seconds or LessDimensions (W X D X H)
Standard (Desktop): 18.8" x 18.8" x 18.4" (478 mm x 478 mm x 467 mm )
Box: 24.0" x 23.0" x 23.2" (610 mm x 584 mm x 589 mm)Installation Space (W X D X H)
Standard (Desktop): 21.4" x 43.8" x 29" (544 mm x 1,112 mm x 736 mm)
Fully Configured: 21.4" x 43.8" x 34.1" (544 mm x 1,112 mm x 866 mm)Weight
Unit: Approx. 64 lb. (29.0 kg)
Boxed Weight: Approx. 76.1 lb.(35 kg)Supported OS
Windows 7/ Windows 8.1/ Windows 10/ Windows Server 2008/ Windows Server 2008 R2/ Windows Server 2012/ Windows Server 2012 R2/ Windows Server 2016 / Mac OS X v10.9.5 (or later)
What Comes In The Box
MF746Cdw Product, Cartridge 055 CMY Starter: 1,200 Yield/Black Standard: 2,300 Yield, Power Cord, Telephone Cable, Starter Guide, User Software DVD-ROM, Warranty Card
Print Specifications Printing Method Laser Beam Printing Print Speed5 Up to 28 ppm (Letter); Up to 22.9 ppm (Legal) First Print-Out Time Approx. 7.5 Seconds Recommended Monthly Page Volume 750 - 4,000 Pages Print Resolution (Dpi) 600 x 600 Standard Page Description Languages UFR II, PCL®6, PCL®5, Adobe PostScript® 3™ Double-Sided Printing Automatic (Standard) Direct Print Available from USB Memory (JPEG, TIFF, PDF) Printing From Mobile And Cloud-Based Services4 Apple® AirPrint,® Canon PRINT Business, Mopria™ Print Service, Google Cloud Print™6 Copy Specifications Copy Speed Up to 28 ppm (Letter); Up to 22.9 ppm (Legal) First Copy-Out Time (Letter) Platen: 11.2 seconds/13.1 seconds (BW/Color)
ADF: 9.9 seconds/11.8 seconds (BW/Color)Copy Resolution (Dpi) 600 x 600 Copy Size Platen: Up to Letter;
ADF: Up to LegalMultiple Copies Up to 999 Copies Magnification 25% - 400% (1% Increments) Preset Reductions 25%, 50%, 64%, 78% Preset Enlargements 129%, 200%, 400% Copy Features Paper Setting, Favorite Setting, Two-sided, Original Type Selection, Cancel, N-on-1, Density Adjustment, Sharpness, Erase Frame, Collate, Copy ID Card Scan Specifications Type Single-Pass Duplexing Automatic Document Feeder Document Feeder Paper Capacity 50 Sheets (20 lb. Bond) Document Feeder Supported Media Sizes Legal, Letter, Statement Document Feeder Supported Media Weights 13-28 lb. Bond (50-105 g/m2) Platen Acceptable Originals Sheet, Book Pull Scan ScanGear MF for TWAIN, and WIA Scan Resolution (Dpi) Push Scan: Up to 300 x 600
Pull Scan: Up to 600 x 600Scan To Mobile Devices Canon PRINT Business Scan Speed (Letter) Single-sided: 14/28 ipm (300 x 600 dpi) (Color/BW)
Double-sided: 27/51 ipm (300 x 600 dpi) (Color/BW)Memory Media Standard USB Memory (JPEG, TIFF, PDF) Send Specifications Destination Email/Internet FAX (SMTP), SMB, FTP Address Book LDAP (50)/Local (300)/Speed Dial (281) Send Resolution (Dpi) 600 x 600 (Pull Scan), 196 x 204 (iFax), 300 x 300 (Other) Communication Protocol File: FTP, SMB
Email/iFax: SMTP, POP3, iFax (Simple)File Format Standard: TIFF, JPEG, PDF (Compact, Searchable)
Optional: PDF (Encrypted, Digital Signature)Fax Specifications Modem Speed Super G3: 33.6 kbps
G3: 14.4 kbpsCompression Method MH, MR, MMR, JBIG Resolution (Dpi) 400 x 400, 200 x 400, 200 x 200, 200 x 100 Sending / Recording Size Statement to Legal Fax Memory Up to 512 Pages Speed Dials Max. 281 Group Dials / Destinations Max. 299 Dials Sequential Broadcast Max. 310 Addresses Memory Backup Yes Fax Features RX Mode, Resolution, Two-sided Original, Density, Sharpness, Favorite Settings, Duplex Fax Security Specifications Authentication
Standard: Embedded Universal Login Manager, Department ID Authentication
Optional: uniFLOW, uniFLOW OnlineNetwork
Standard: IP/MAC Address Filtering, IPSEC, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X(Wired Only), IPv6, SMTP Authentication, POP Authentication, POP Authentication before SMTP
Document Standard: Secure Print Wi-Fi® Authentication Methods Wi-Fi Infrastructure Mode: WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES)
Wi-Fi Access Point: WPA2-PSK (AES)Environmental Specifications Operating Environment Temperature: 50 to 86º F
Humidity: 20 to 80% RH (no condensation)Power Requirements AC 120-127 V:6.5 A, 60 Hz Power Consumption
Maximum: Approx. 1470 W
Standby: Approx. 20.5 W
Sleep Mode: Approx. 0.6 W
Typical Electricity Consumption (TEC) Rating: 1.0 kWhStandards ENERGY STAR® Qualified, Rated EPEAT Silver
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$149.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
