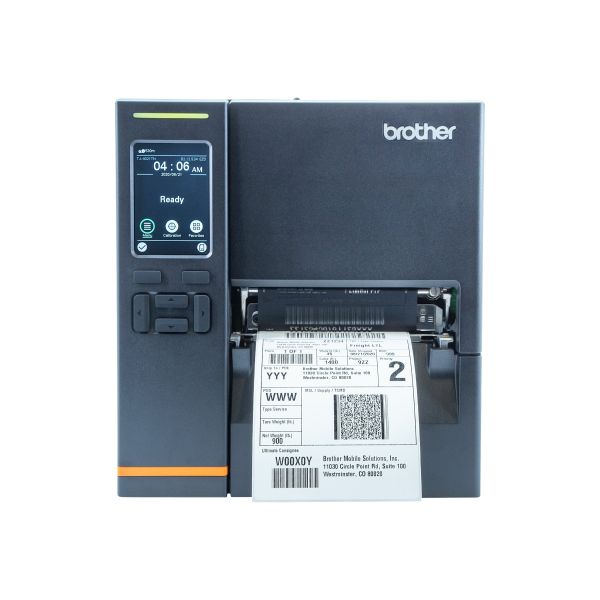

Brother Titan Industrial Printer TJ-4121TN
| General Information | |
|---|---|
| Category | Thermal tape printers |
| Description | Brother Titan Industrial Printer TJ-4121TN - Label printer - direct thermal / thermal transfer - Roll (12 cm) - 300 x 300 dpi - up to 177.8 mm/sec - LAN, serial, USB host, USB 2.0, Wi-Fi(n) - with 2 years Premier Limited Warranty |
| Manufacturer | Brother |
| MSRP | $1,933.00 |
| UNSPSC | 43212108 |
| Main Specifications | |
| Dimensions & Weight / Depth | 43.6 cm |
| Dimensions & Weight / Height | 27.4 cm |
| Dimensions & Weight / Weight | 9.4 kg |
| Dimensions & Weight / Width | 24.8 cm |
| Header / Brand | Brother |
| Miscellaneous / Product Color | Black |
| Networking / Type | Print server |
| Office Machine / Functions | Printer |
| Office Machine / Printing Output Type | Monochrome |
| Office Machine / Printing Technology | Direct thermal / thermal transfer |
| Office Machine / Type | Printer |
| Packaged Quantity | 1 |
| PC Connectivity / PC Connection |
|
| Printer / Connectivity Technology | Wired |
| Printer / Type | Label printer |
| Scanner / Type | None |
| System Requirements / OS Required |
|
| Dimensions & Weight | |
| Depth | 43.6 cm |
| Height | 27.4 cm |
| Weight | 9.4 kg |
| Width | 24.8 cm |
| Environmental Parameters | |
| Humidity Range Operating | 25 - 85% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Environmental Standards | |
| ENERGY STAR | Yes |
| ENERGY STAR Version | 3.0 |
| Expansion / Connectivity | |
| Connections |
|
| Flash Memory | |
| Flash Memory | 128 MB |
| General | |
| Bundled Services | 2 years Premier Limited Warranty |
| Printer Type | Label printer - direct thermal / thermal transfer - monochrome |
| Media Handling | |
| Max Media Size | Roll (12 cm) |
| Max Media Size (Custom) | 120 mm |
| Max Printing Width | 105.7 mm |
| Media Sizes | Roll (2 cm), Roll (12 cm) |
| Media Type | Continuous labels, die cut labels, fanfold labels, label roll, tags |
| Min Media Size (Custom) | 20 mm |
| Roll Core Diameter | 76.2 mm, 25.4 mm |
| Roll Maximum Outer Diameter | 203.2 mm |
| Miscellaneous | |
| Cables Included | 1 x USB cable |
| Included Accessories | 2 x 3" core adapters, ribbon take-up core |
| Networking | |
| Networking | Print server |
| Security Protocols & Features | 802.1x, WPA2-Enterprise, EAP-FAST, EAP-TTLS, EAP-TLS, PEAPv0, WEP, WPA-PSK, TKIP, AES |
| Power | |
| Frequency Required | 50/60 Hz |
| Voltage Required | AC 100-240 V |
| Printer | |
| Barcodes | Code 11, Code 39, Code 93, Code 128, UPC-A, UPC-E, EAN-13, EAN-8, EAN-128, GS1-128, Postnet, MSI, Plessey, Interleaved 2 of 5, Industrial 2 of 5, ITF-14, EAN-14, LOGMARS, Codabar, Telepen, PLANET, Deutsche Post Identcode, Deutsche Post Leitcode, China Post, Codablock F, PDF417, Code 49, MaxiCode, QR code, MicroPDF417, TLC39, GS1 DataBar, Aztec code |
| Built-in Devices | Touch screen |
| Connectivity Technology | Wired |
| Features | Transmissive/gap sensor, reflective/black mark sensor, ribbon encode sensor, ribbon end sensor |
| Interface | LAN, serial, USB host, USB 2.0, Wi-Fi(n) |
| Language Simulation | FBPL, ZPL II, EPL2, DPL |
| Max Resolution (B&W) | 300 x 300 dpi |
| Preview Screen Size | 3.5" |
| Print Speed | Up to 177.8 mm/sec - max speed |
| RAM | |
| RAM Installed (Max) | 128 MB |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Windows 8.1 (32/64 bits), Microsoft Windows 7 (32/64 bits), Windows 10 (32/64 bits), Apple macOS 10.12.x or later, Apple MacOS X 10.11.x, Linux, Microsoft Windows Server 2008, Microsoft Windows Server 2008 R2, Windows 8, Microsoft Windows Vista, Android 5.0 or later, Apple iOS 9 or later |
| Software Included | Bartender UltraLite |
Onsite Service
Following your purchase, JTF will assign an authorized service partner in your area to your account. Your service calls are processed and dispatched in just minutes after they are received, thus minimizing your downtimes. All service partners are authorized, factory trained and 100% endorsed by JTF Network Partners, with over 600 service dealers nationwide*
Same Day Onsite Service:
Same Day Service is provided at your business or home during the contracted Maintenance period.
Exceptions:
1) Your offices are 40 miles away from the closest service providers.
2) Service in HI, AK & PR.
Convenient Assistance:
Having device issues?
Experts are here 8am -6pm weekly to help solve your technical problems.
Fast, free replacements:
If we can’t fix your printer, we’ll try to replace it by the next business day.
No hidden fees:
Parts and labor, replacements, even return shipping — it’s all covered by your JTF Warranty.
Optional extra coverage:
Additional coverage to include supplies are available for purchase.
No Expert Install
$149.00 Expert Install
Installation Service for equipment includes the following:
JTF will schedule an appointment with one person per site. Unless otherwise requested and/or scheduled, the standard practice is to start all installation services within one week the delivery of the hardware to the customer’s location.
Unpacking: JTF will inventory the shipment against the packing list, unpack and install all delivered products.
Setup/Installation: JTF will physically assemble, connect peripherals, network cables, and power cords that were purchased from JTF.
a. This service provides installation of drivers on a single PC workstation (not server), network setup, including the programming of the IP address and network settings and verification of the network functionality, wireless connection setup and verification of the functionality over the Internet.
b. For configuration networking, the Customer can choose between automatic configuration using BOOTCP or Dynamic Host Configuration Protocol (DHCP), or manual configuration with IP address, default gateway, and subnet mask.
c. For multifunction products, the service provides setup of the ‘send to email configuration’ and configuration of the SMTP or LDAP.
d. This service provides the Customer-identified key operator with a basic overview on how to install consumables, plus explanations of basic features and functionality such as drivers, control panel features, embedded Web server, and alerts.
secure transaction
Quick Details
- Label printer
- direct thermal / thermal transfer
- Roll (12 cm)
- 300 x 300 dpi
- up to 177.8 mm/sec
