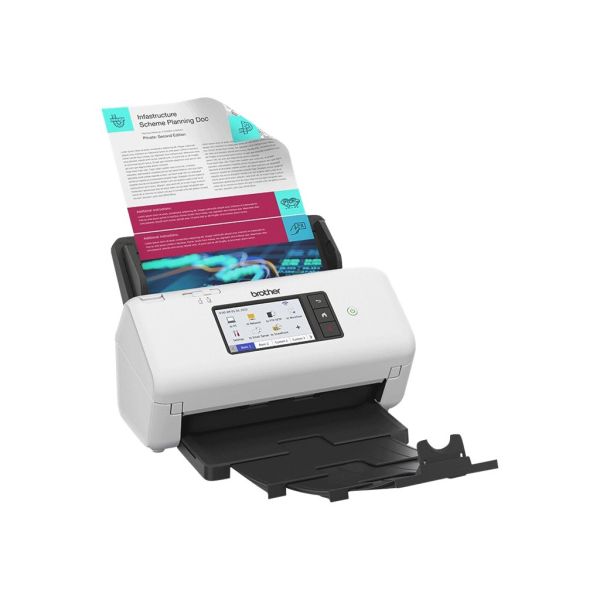

Brother ADS-4700W - Document scanner
| General Information | |
|---|---|
| Category | Scanners |
| Description | Brother ADS-4700W - Document scanner - Dual CIS - Duplex - A4 - 600 dpi x 600 dpi - up to 40 ppm (mono) / up to 40 ppm (color) - ADF (80 sheets) - USB 3.0, LAN, Wi-Fi(n) |
| Manufacturer | Brother |
| MSRP | $760.99 |
| UNSPSC | 43211711 |
| Main Specifications | |
| Dimensions & Weight / Depth | 21.5 cm |
| Dimensions & Weight / Height | 19 cm |
| Dimensions & Weight / Weight | 2.75 kg |
| Dimensions & Weight / Width | 29.9 cm |
| Header / Brand | Brother |
| Miscellaneous / Product Color | Gray |
| Packaged Quantity | 1 |
| Scanner / Automatic Duplexing | Yes |
| Scanner / Document Feeder Type | Automatic |
| Scanner / Interface Type |
|
| Scanner / Max Supported Document Size | 215.9 x 355.6 mm |
| Scanner / Supported Document Type |
|
| Scanner / Type | Document scanner |
| System Requirements / OS Required |
|
| Dimensions & Weight | |
| Depth | 21.5 cm |
| Height | 19 cm |
| Weight | 2.75 kg |
| Width | 29.9 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 5 °C |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
| Expansion / Connectivity | |
| Interfaces Details |
|
| General | |
| Additional Functions | Scan to FTP, scan to SharePoint, scan to USB, scan to folder, scan to PC |
| Interface Type | USB 3.0, LAN, Wi-Fi(n) |
| Max Supported Document Size | 215.9 x 355.6 mm |
| Type | Document scanner - desktop |
| Media Handling | |
| Document Feeder Type | Automatic |
| Feeder Capacity | 80 sheets |
| Max Document Size | 215.9 mm x 355.6 mm |
| Supported Document Size Details | ADF - up to 215.9 x 355.6 mm |
| Supported Document Type | Plain paper, post card, business card, plastic card |
| Miscellaneous | |
| Cables Included | 1 x USB cable - 1.8 m |
| Compliant Standards | RoHS, WPS |
| Power | |
| Power Consumption Operational (Standby) | 26 Watt |
| Power Consumption Sleep | 1.7 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 100 V (50/60 Hz) |
| Scanner | |
| Automatic Duplexing | Yes |
| Compliant Standards | TWAIN, ISIS, WIA |
| Grayscale Depth | 8-bit (256 colors) |
| Input Type | Color |
| Interpolated Resolution | 1200 dpi x 1200 dpi |
| Max Document Scan Speed B/W | 40 ppm |
| Max Document Scan Speed Color | 40 ppm |
| Optical Resolution | 600 dpi x 600 dpi |
| Scanner Features | Ultrasonic sensor, scan to portable USB drive, Wi-Fi Direct, 4.3" touch screen TFT display |
| Scanner Speed Details |
|
| Scanning Sensor Type | Dual CIS |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7 SP1, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Windows 10, Windows 11, Windows 8.1, Apple macOS 10.14.x or later |
| Software Included | Nuance PaperPort 14 SE, Kofax Power PDF Standard v3 |
