Epson BrightLink 760Wi

Availability: In stock
SKU
V11HA80020
UPC Code
010343975392
Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transactionsecure transaction
Designed for ease of use in collaborative learning environments, BrightLink ultra short throw displays simplify interactivity in the classroom by offering compatibility with frequently used software applications including Office 365 and Google Workspace. Offering a high-quality 16:10 WXGA display up to 100", the BrightLink 760Wi interactive display delivers easy-to-read images and provides up to 85 percent more interactive space than a 75" flat panel - for a low cost per square inch. With 4,100 lumens of color and white brightness and proprietary 3-chip 3LCD technology, this display delivers a remarkably bright and colorful picture that can be easily viewed in ambient light conditions from nearly anywhere in the classroom. It also includes a 20,000-hour, virtually maintenance-free laser light source, so there are no lamps to purchase or replace - ever. A convenient and seamless solution, the BrightLink 760Wi features wireless connectivity with casting capability from PCs, Mac computers, Chromebooks, and Android and iOS devices, along with convenient split screen functionality, making it easy for teachers and students to wirelessly display up to four screens simultaneously. With its unique ability to display and support interactivity on existing whiteboards, this dual-pen-enabled display delivers exceptional value by allowing teachers to retain valuable whiteboard space when the display is not in use.
  • BrightLink: ® | 760Wi WXGA 3LCD Interactive Lamp-Free Laser Display | Lamp-free interactive display projects easy-to-read images for collaborative classrooms
  • Projected images simulated:
  • True-to-life images: With 3-chip 3LCD technology and 4,100 lumens of color and white brightness | 1

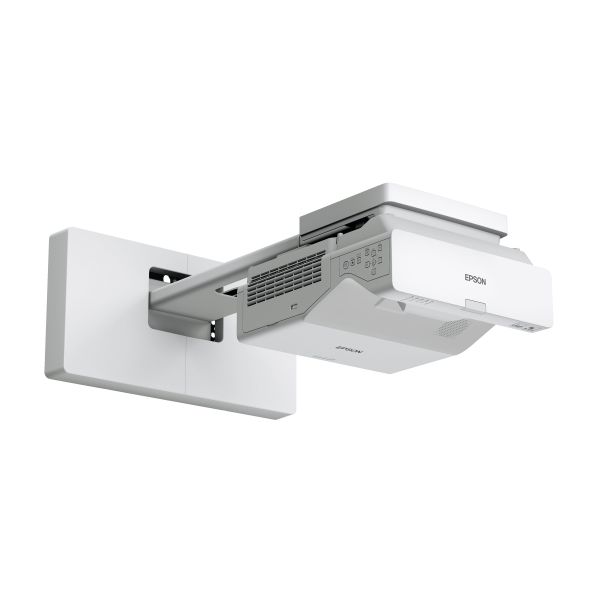

  • Large, easy-to-read images: 16:10 WXGA resolution for true-to-life images. Also supports 16:9 and 4:3 aspect ratios | Image is shown with optional Wall Mount and Interactive Touch Module
  • No lamps to replace ever: A solid-state, 20,000-hour, virtually maintenance-free laser light source | 2
  • Interactive display up to 100": Provides up to 85 percent more interactive space than a 75" interactive panel, for a low cost per square inch
  • Multi-user capability for easy collaboration: Dual-pen-enabled interactivity; optional slim-design touch module allows up to eight users to collaborate at once
  • Projected images simulated:
General Information
CategoryComputer screen projector
DescriptionEpson BrightLink 760Wi - 3LCD projector - 4100 lumens (white) - 4100 lumens (color) - WXGA (1280 x 800) - 16:10 - 802.11a/b/g/n/ac wireless / LAN/ Miracast - with 3 years Epson Road Service Program
ManufacturerEpson
MSRP$3,838.00
UNSPSC45111609
Main Specifications
Dimensions & Weight / Depth39.6 cm
Dimensions & Weight / Height13.5 cm
Dimensions & Weight / Weight6 kg
Dimensions & Weight / Width35.8 cm
Header / BrandEpson
Lamp TypeLaser
Miscellaneous / Product ColorWhite
Networking / Connectivity Technology
  • Wired
  • Wireless
Networking / LAN and Wireless Image Transferring Protocols
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
  • Miracast
  • Wired LAN
Packaged Quantity1
Projector / ClassDigital projector
Projector / Native Aspect Ratio16:10
Projector / PortabilityNon-portable
Projector / Recommended UsePresentation and multimedia
Service & Support / Type3-year warranty
Dimensions & Weight
Depth39.6 cm
Height13.5 cm
Weight6 kg
Width35.8 cm
Environmental Parameters
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Sound Emission37 dB
Sound Emission (Economic Mode)27 dB
Expansion / Connectivity
Interfaces
  • 3 x HDMI - 19 pin HDMI Type A
  • 1 x composite video input - RCA
  • 3 x audio line-in - mini-phone stereo 3.5 mm
  • 1 x audio line-out - mini-phone stereo 3.5 mm
  • 1 x microphone input - mini-phone stereo 3.5 mm
  • 1 x USB - 4 pin USB Type A
  • 2 x USB - 4 pin USB Type B
  • 1 x network - RJ-45
  • 1 x serial RS-232C - 9 pin D-Sub (DB-9)
  • 1 x VGA output - 15 pin HD D-Sub (HD-15)
  • 1 x Sync in
  • 1 x Sync out
  • 1 x TCH port
General
Built-in DevicesSpeaker
Bundled Services3 years Epson Road Service Program
Device Type3LCD projector
Networking802.11a/b/g/n/ac, Ethernet
Lens
Focus TypeManual
Horizontal Keystone Correction-3 / +3
Keystone Correction DirectionHorizontal, vertical
Lens ApertureF/1.6
Vertical Keystone Correction-3 / +3
Manufacturer Warranty
Service & SupportLimited warranty - 3 years
Miscellaneous
Cables Included1 x USB cable - USB Type A to B
Compliant StandardsRoHS, Plug and Play
Included AccessoriesRemote control, 2 x Interactive Pen, 4 x soft pen tips, 2 x hard pen tips, pen tray, 4 x AA batteries, projector feet, corner markers, magnets for corner markers
Security FeaturesSecurity lock slot (cable lock sold separately), security anchor bar, password protection
Security Slot TypeKensington security slot
Power
Power Consumption Operational277 Watt
Power Consumption Stand by2 Watt
Power SourceAC
Voltage RequiredAC 100-240 V (50/60 Hz)
Projector
Brightness (Color)4100 lumens
Brightness (White)4100 lumens
Color Support1.07 billion colors
Contrast Ratio2500000:1
Digital Zoom Factor1.35x
Display Format1,024,000 pixels (1,280 x 800) x 3
FeaturesEPSON 3LCD technology, 4:3 aspect ratio support, 16:9 aspect ratio support, Sleep Mode
Image Size173 cm - 254 cm
Lamp Life Cycle
  • Up to 20000 hour(s) - normal mode
  • Up to 30000 hour(s) - extended mode
Lamp TypeLaser
Native Aspect Ratio16:10
ResolutionWXGA - WXGA (1280 x 800)
Throw Ratio0.27 - 0.37:1
Software / System Requirements
Software IncludedEpson Easy Interactive Driver, Epson Easy Interactive Tools
Speakers
Output Power / Channel16 Watt
Sound Output ModeMono
Speakers1 x mixed channel
TypeIntegrated
Video Input
LAN and Wireless Image Transferring ProtocolsWired LAN, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Miracast, IEEE 802.11ac
Video InterfacesVGA, HDMI, composite video
