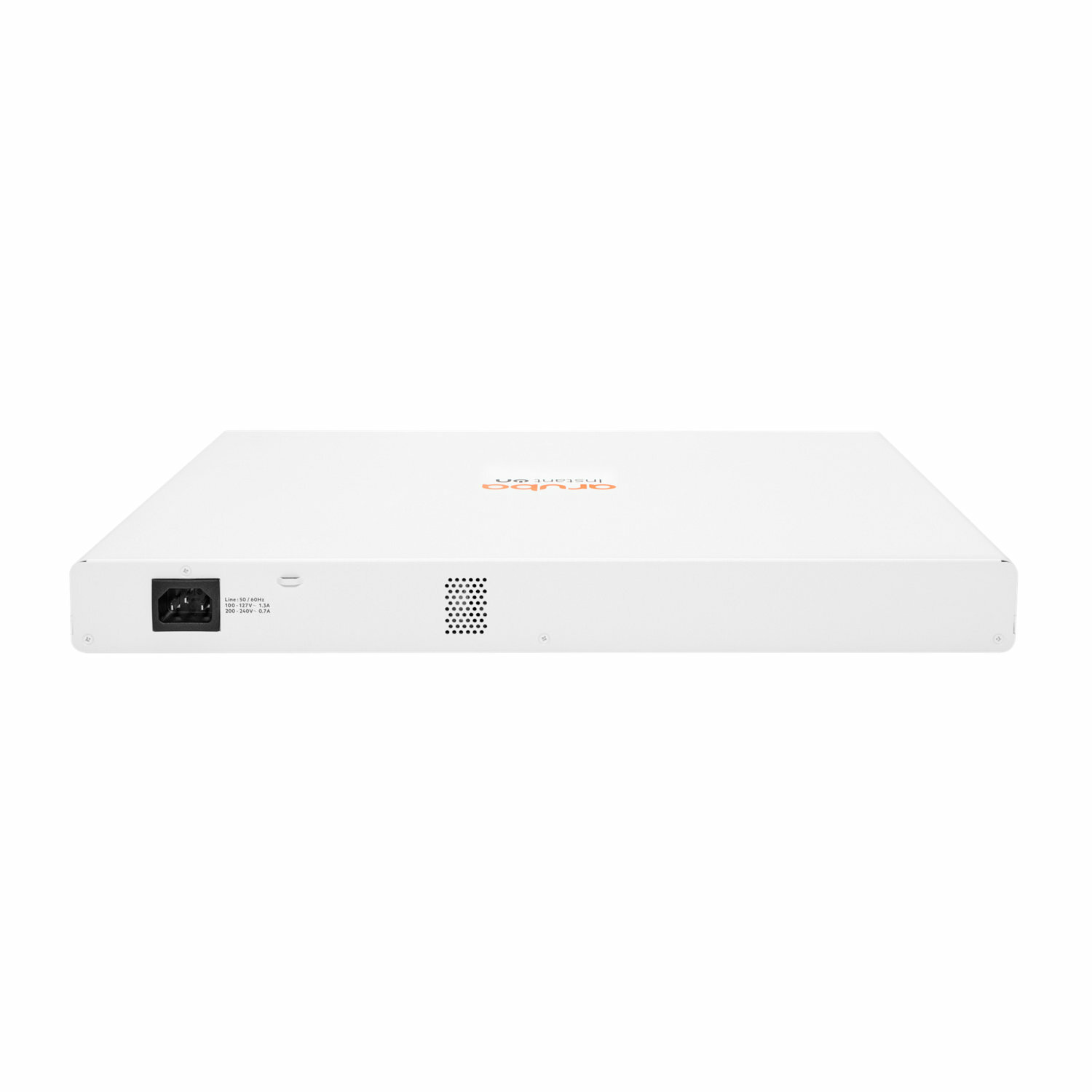

HPE Networking Instant On 1960 12XGT 4SFP+ Switch
HPE Networking Instant On Switch 1960 series, consist of advanced, smart-managed, fixed configuration Gigabit stackable switches designed for small and growing businesses that are easy to deploy and affordable. These switches are designed to scale as business grows, making adding more employees, devices and applications simple. Instant On 1960 switches are made to handle today's bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to improve user experience and application performance. These switches come with flexible management option: local web GUI or Instant On mobile app and cloud-based web portal.
- Simplify network management by stacking up to four Instant On 1960 switches and managing them through one single IP address. Stacking supported via local and cloud-managed stacking modes.:
- Smart-managed layer 2+ Ethernet access switch series ready to deploy in 12-port, 24-port, and 48-port for non-PoE and PoE (supports Class 4 and Class 6 PoE) models.:
- The Networking Instant On 1960 aggregation switches comes with twelve 10 GBase-T and four SFP+ ports, providing 10 G connectivity to servers, network storage devices and access switches alike.:
- For environments with heavy bandwidth needs, 10 GBase-T and SFP+ uplink ports deliver lightning-fast network speeds and nearly eliminates traffic bottlenecks.:
- HPE Networking Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.:
- High-level Gigabit with 10 GbE Networking for Advanced Small Businesses: Each model of the HPE Networking Instant On Switch 1960 series includes four 10 GbE connections to connect to servers, network storage devices, or to other switches. | Two connections of 10 GBASE-T deliver 10 GbE over copper Category 5/6a cabling for simple, affordable, high-bandwidth connections to a maximum distance of 100 meters. | With PoE models, up to 30W PoE power delivery is available for Class 4 PoE devices like access points, surveillance cameras and VoIP phones, and up to 60W PoE power delivery is available for Class 6 PoE devices like pan-tilt zoom cameras and video-enabled IP-phones.
- Simplify Network Deployment and Management for Small Organizations: The HPE Networking Instant On Switch 1960 series is a complete portfolio for increased small business flexibility. It consists of six models including two 24-port and two 48-port models in PoE and non-PoE configurations, a 12-port multi-rate switch, and a 12-port 10-Gigabit aggregation switch. | The 12-port, 24-port, and 48-port PoE models come with a power budget of 480W, 370W and 600W respectively to support the latest PoE-powered IoT devices. | The HPE Networking Instant On Switch 1960 series can be deployed using two management modes – Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI. | Each switch has a pull-out tag, known as a luggage tag, on the front panel of the switch. | The tag includes a QR code that includes switch ID information (SKU number, SKU name, serial number, and MAC address) for easy switch onboarding through Instant On mobile app.
- Ease of Use with Cloud-Managed Stacking: The HPE Networking Instant On mobile app and cloud-based web portal make cloud-managed stacking easy — just follow the recommendations to stack up to four HPE Networking Instant On Switch 1960 switches and manage as a single entity. | The HPE Networking Instant On mobile app automatically detects members, making multiple stack members easy to setup and manage remotely. | Automated configurations and streamlined workflows allow users to manage all stack members through one single dashboard without the need for device reboot.
- Robust Security to Protect Your Network: The HPE Networking Instant On Switch 1960 series lets you use VLANs and Access Control Lists (ACL) to set bounds on what data can be seen by which users. | Leverage 802.1X with a RADIUS server to ensure only known and authorized users can access your network. | Supports automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.
| General Information | |
|---|---|
| Category | Network switches |
| Description | HPE Networking Instant On 1960 12XGT 4SFP+ Switch - Switch - L2+ - smart - 12 x 100/1000/10000 + 4 x 10 Gigabit SFP+ - desktop, rack-mountable |
| Manufacturer | Hewlett Packard Enterprise |
| MSRP | $2,265.00 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 35.05 cm |
| Dimensions & Weight / Height | 4.395 cm |
| Dimensions & Weight / Weight | 4.3 kg |
| Dimensions & Weight / Width | 44.25 cm |
| Header / Brand | HPE |
| Miscellaneous / Product Color | White |
| Networking / Form Factor |
|
| Networking / Ports Qty | 12 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 35.05 cm |
| Height | 4.395 cm |
| Weight | 4.3 kg |
| Width | 44.25 cm |
| Environmental Parameters | |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Humidity Range Storage | 15 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS |
| Capacity |
|
| Compliant Standards | IEEE 802.1x, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3i, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1t, IEEE 802.3ac |
| Device Type | Switch - 12 ports - L2+ - smart - stackable |
| Enclosure Type | Desktop, rack-mountable |
| Encryption Algorithm | SSL |
| Features | Cloud managed, ACL support, VLAN support, DoS attack prevention, DHCP client, firmware upgradable, SNTP support, QoS, DSCP prioritization, CoS, WRR, auto-uplink (auto MDI/MDI-X), auto-negotiation, flow control, MSTP support, RSTP support, STP support, auto voice VLAN, port mirroring, BPDU Filter, loop protection, IGMP snooping, MLD snooping, TPM, LLDP-MED, port based access control, Port Security, DHCP snooping, IP source guard, ARP filtering, Unicast Storm Control, Broadcast Storm Control, Multicast Storm Control, Energy Efficient Ethernet, DHCP relay, DHCP server, IPv6 support, ingress rate limiting, DNS client, protected ports, dual image support, ICMP, Cable Diagnostics Function |
| Jumbo Frame Support | 9216 bytes |
| MAC Address Table Size | 16000 entries |
| Performance |
|
| Ports | 12 x 100/1000/10000 + 4 x 10 Gigabit SFP+ |
| Processor | 1: 2 GHz |
| Remote Management Protocol | HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, RADIUS, SCP, TFTP, RMON |
| Routing Protocol | IGMP, IGMPv2, IGMPv3, MLD, MLDv2, static IPv4 routing |
| Status Indicators | Port status |
| Subtype | 10 Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Compliant Standards | Plug and Play, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, EN 62368-1, EN 62368-1 Second Edition, EN 62368-1 Third Edition, IEC 62368-1, IEC 62368-1 Second Edition, IEC 62368-1 Third Edition, UL 62368-1, UL 62368-1 Second Edition, UL 62368-1 Third Edition, CAN/CSA C22.2 No. 62368-1 Second Edition, CAN/CSA C22.2 No. 62368-1 Third Edition, CAN/CSA-C22.2 No. 62368-1, EN 60825-1 Class 1, IEC 60825-1 Class 1, EN 55032/CISPR 32 Class A, FCC CFR47 Part 15 A, ICES-003 Class A, VCCI Class A, CNS 13438 Class A, KN32 Class A, AS/NZS CISPR 32 Class A, CISPR 35, EN 55035, KN35, EN 61000-3-2, IEC 61000-3-2, IEC/EN 61000-4-11, IEC/EN 61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, EN 61000-3-3, IEC 61000-3-3 |
| MTBF | 88.8 years |
| Rack Mounting Kit | Included |
| Power | |
| Power Consumption Operational | 60 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
