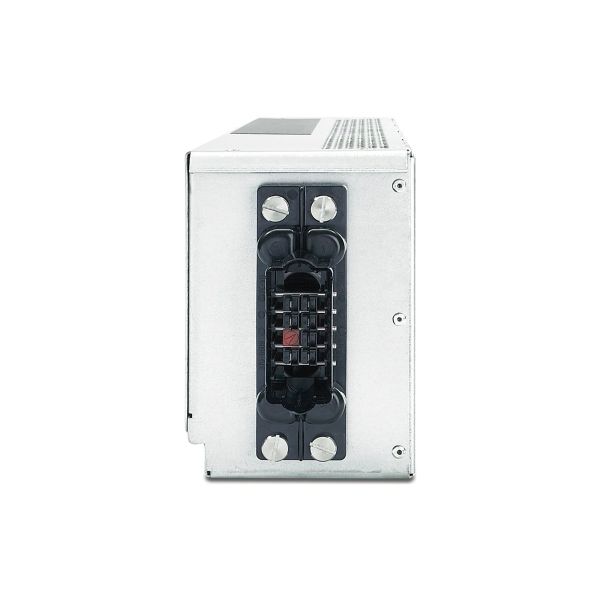

APC Symmetra PX High Performance Battery Unit

Availability: Out of stock
SKU
SYBTU2-PLP
UPC Code
731304242529
Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transactionsecure transaction
For Symmetra PX 100, it is recommended to replace all four batteries in a row at the same time to ensure optimal runtime. If you are ordering this battery unit for a Symmetra PX 100, you must order battery units in multiples of 2 and you must replace string positions A+B or C+D, as the batteries are connected in pairs. The batteries in each half string must be from the same manufacturer. For Symmetra PX 250/500, it is recommended to replace all six batteries in a row at the same time to ensure optimal runtime. If you are ordering this battery unit for a Symmetra PX 250/500, you must order battery units in multiples of 3 and you must replace the batteries in string position A+B+C or D+E+F, as they are connected in pairs. The batteries in each half string must be from the same manufacturer. Network services help ensure operation continuity even in case of connection breakdown.
General Information
CategoryLead acid batteries
DescriptionAPC Symmetra PX High Performance Battery Unit - UPS battery - 1 x battery - lead acid - 9 Ah - for Symmetra PX 100kW Frame, 250/500kW IO Frame, 250kW Power Module Frame
ManufacturerAPC by Schneider Electric
MSRP$1,280.00
UNSPSC26111707
Main Specifications
Dimensions & Weight / Depth70 cm
Dimensions & Weight / Height15.9 cm
Dimensions & Weight / Weight25.2 kg
Dimensions & Weight / Width10.7 cm
Header / BrandAPC
Packaged Quantity1
Product TypeUPS battery
Service & Support / Type1-year warranty
Battery
Capacity9 Ah
FeaturesSpill-proof
Quantity1
TechnologyLead acid
Compatibility Information
Designed ForAPC Symmetra PX 100kW Frame, 250/500kW IO Frame, 250kW Power Module Frame
Dimensions & Weight
Depth70 cm
Height15.9 cm
Weight25.2 kg
Width10.7 cm
Dimensions & Weight (JTFpping)
JTFpping Depth81 cm
JTFpping Height18 cm
JTFpping Weight27 kg
JTFpping Width15 cm
Environmental Parameters
Humidity Range Operating0 - 95%
Max Operating Temperature40 °C
Min Operating Temperature0 °C
General
Battery Enclosure TypePlug-in module
Device TypeUPS battery
Manufacturer Warranty
Service & SupportLimited warranty - 1 year
Miscellaneous
Compliant StandardsHeavy metals-free, Mercury-free
Sustainability Information
Packaging Recycled ContentMade of recycled cardboard
