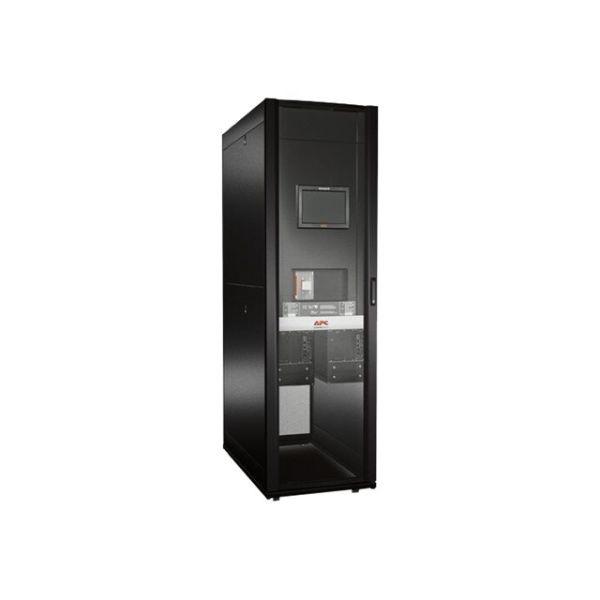

APC Symmetra PX 250/500kW IO Frame

Be the first to review this product

Availability: Out of stock

SKU

SYIOF500KD

UPC Code

731304256441

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

Symmetra PX250/500kW input/output frame with a right-mounted maintenance bypass and distribution unit that can accommodate a 250kW or 500kW static switch.

Specifications

General Information
Category	Rack systems for rack mount electroni...
Description	APC Symmetra PX 250/500kW IO Frame - Power distribution cabinet - AC 480 V - 500 kW - 500000 VA - 3-phase - output connectors: 2 (hardwire 4-wire (3PH + G), hardwire 5-wire (3PH + N + G)) - black
Manufacturer	APC by Schneider Electric
MSRP	$29,760.00
UNSPSC	24102001
Main Specifications
Dimensions & Weight / Depth	107 cm
Dimensions & Weight / Height	199 cm
Dimensions & Weight / Weight	332 kg
Dimensions & Weight / Width	60 cm
General / Subcategory	Power distribution devices
Header / Brand	APC
Miscellaneous / Product Color	Black
Packaged Quantity	1
Power Device / Form Factor	External
Power Device / Output Connector Qty	2
Power Device / Power Capacity (VA)	500000 VA
Power Device / Voltage Required	AC 480 V
Product Type	Power distribution cabinet
Service & Support / Type	1-year warranty
Dimensions & Weight
Depth	107 cm
Height	199 cm
Weight	332 kg
Width	60 cm
Dimensions & Weight (JTFpping)
JTFpping Depth	121 cm
JTFpping Height	212 cm
JTFpping Weight	364 kg
JTFpping Width	74.5 cm
Environmental Parameters
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
Sound Emission	54 dBA
Expansion / Connectivity
Expansion Slots	3 (total) / 3 (free) x SmartSlot
General
Color	Black
Device Type	Power distribution cabinet - external
Manufacturer Warranty
Service & Support	Limited warranty - 1 year
Miscellaneous
Compliant Standards	FCC Class A certified, UL, cUL, UL 1778, FCC Part 68, IEC 60529 IP20, FCC Part 15, EN 50091-2, IEC 62040-1-1, CSA C22.2, UL 60950-1
Features	Touch screen LCD display
Networking
Remote Management Protocol	SNMP, HTTP
Power Device
Input Connectors	2 x hardwire 4-wire (3PH + G), hardwire 5-wire (3PH + N + G)
Input Voltage	AC 480 V
Input Voltage Range	AC 408 - 552 V
Input Wiring	3-phase
Output Voltage	AC 480 V
Power Capacity	500 kW / 500000 VA
Power Output Connectors Details	1 x hardwire 5-wire (3PH + N + G) 1 x hardwire 4-wire (3PH + G)
