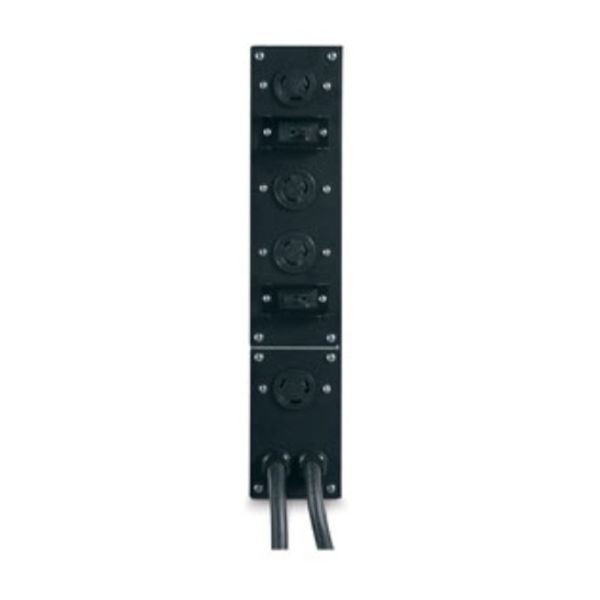

APC SVC BYPASS PANEL FOR 200/208/240V SYMMETRA 2-6KVA (1)NO RTN

Be the first to review this product

Availability: Out of stock

SKU

SBP6KRMT2U

UPC Code

731304212607

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

Extremely reliable service bypass panels designed for APC InfraStruXure Type A, Smart-UPS, and Symmetra UPS products.

Specifications

General Information
Category	Power conditioning equipment
Description	APC SVC BYPASS PANEL FOR 200/208/240V SYMMETRA 2-6KVA (1)NO RTN
Manufacturer	APC by Schneider Electric
MSRP	$2,120.00
UNSPSC	39121000
Main Specifications
Dimensions & Weight / Depth	66 cm
Dimensions & Weight / Height	8.9 cm
Dimensions & Weight / Weight	13.6 kg
Dimensions & Weight / Width	43.2 cm
Header / Brand	APC
Miscellaneous / Product Color	Black
Packaged Quantity	1
Power Device / Form Factor	Rack-mountable
Power Device / Output Connector Qty	3
Power Device / Voltage Required	AC 200/208/240 V
Product Type	Bypass switch
Service & Support / Type	2-year warranty
Compatibility Information
Designed For	APC Symmetra 4KVA, 4KVA (Expandable to 16KVA), 4KVA (Expandable to 6KVA), 4KVA (Expandable to 8KVA), 4kVA Scalable to 8kVA N+1, 6kVA
Dimensions & Weight
Depth	66 cm
Height	8.9 cm
Weight	13.6 kg
Width	43.2 cm
Environmental Parameters
Humidity Range Operating	0 - 95%
Humidity Range Storage	0 - 95%
Max Operating Temperature	50 °C
Max Storage Temperature	65 °C
Min Operating Temperature	-20 °C
Min Storage Temperature	-25 °C
General
Color	Black
Cord Length	3.05 m
Device Type	Bypass switch - rack-mountable
Height (Rack Units)	2U
Rack Size	19"
Manufacturer Warranty
Service & Support	Limited warranty - parts - 2 years
Miscellaneous
Cables Included	Power cable 3.05 m
Compliant Standards	CSA, UL, GOST, EN 60950, UL 1778, IEC 60950
Pricing Type	APC Take-Back
Rack Mounting Kit	Included
Power Device
Frequency Required	50/60 Hz
Input Connectors	2 x power NEMA L6-30, hardwire
Input Voltage	AC 200/208/240 V
Output Voltage	AC 200/208/240 V
Power Output Connectors Details	2 x power NEMA L6-20 1 x power NEMA L6-30
