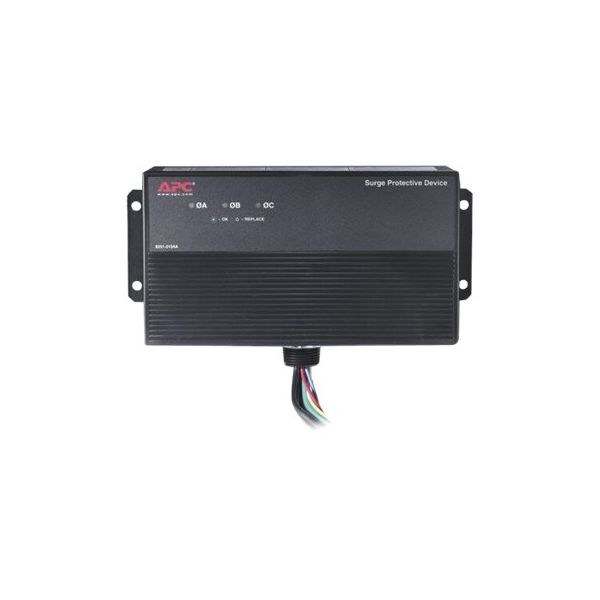

APC SurgeArrest Panelmount

Availability: Out of stock

SKU

PMP2X-A

UPC Code

731304266433

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

This high quality TVSS is designed for datacenters, industrial facilities and commercial buildings.

General Information
Category	Surge suppressers
Description	APC SurgeArrest Panelmount, Non-modular - Surge suppressor - AC 120/230 V
Manufacturer	APC by Schneider Electric
MSRP	$515.00
UNSPSC	39121610
Main Specifications
Dimensions & Weight / Depth	7.6 cm
Dimensions & Weight / Height	9.5 cm
Dimensions & Weight / Weight	3 kg
Dimensions & Weight / Width	21.9 cm
General / Subcategory	Surge protection and power conditioning
Header / Brand	APC
Miscellaneous / Product Color	Black
Packaged Quantity	1
Power Device / Form Factor	External
Power Device / Voltage Required	AC 120/230 V
Product Type	Surge protector
Service & Support / Type	10-year warranty
Dimensions & Weight
Depth	7.6 cm
Height	9.5 cm
Weight	3 kg
Width	21.9 cm
Dimensions & Weight (JTFpping)
JTFpping Depth	13.7 cm
JTFpping Height	18.9 cm
JTFpping Weight	3.6 kg
JTFpping Width	27.3 cm
Environmental Parameters
Max Operating Temperature	60 °C
Min Operating Temperature	-40 °C
General
Color	Black
Device Type	Surge protector - external
Manufacturer Warranty
Service & Support	Limited warranty - 10 years
Miscellaneous
Compliant Standards	cUL, UL 1283, UL 1449, NEMA Type 4X
Features	Audible alarm, noise filtering, overload protection
Power Device
Circuit Protection	Circuit breaker
EMI/RFI Noise Filtration	30 dB
Frequency Required	50/60 Hz
Input Connectors	1 x hardwire 3-wire (2PH + G)
Input Voltage	AC 120/230 V
Max Spike Current	80000 A
Surge Response Time	1 ns
Surge Suppression	Yes
