APC Smart-UPS X SMX750CUS

Availability: Out of stock
SKU
SMX750CUS
UPC Code
731304424475
Request a Quote
Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transactionsecure transaction
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 750VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-15P input and 8x NEMA 5-15R outlets. The UPS offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The Smart-UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 1 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies. The UPS is TAA Complaint.

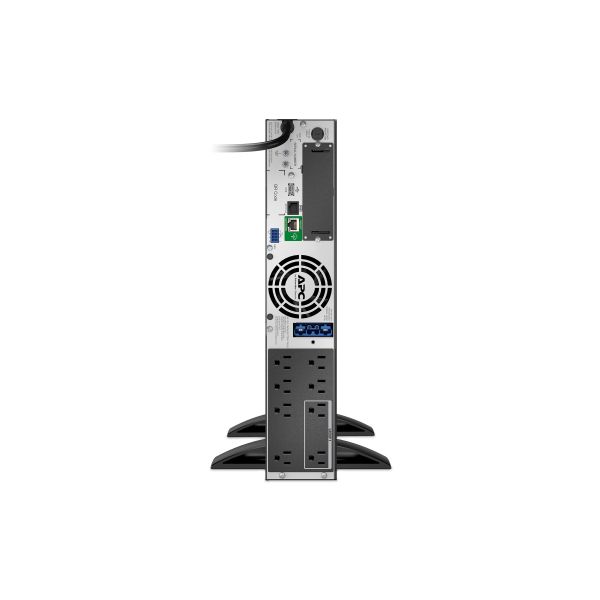

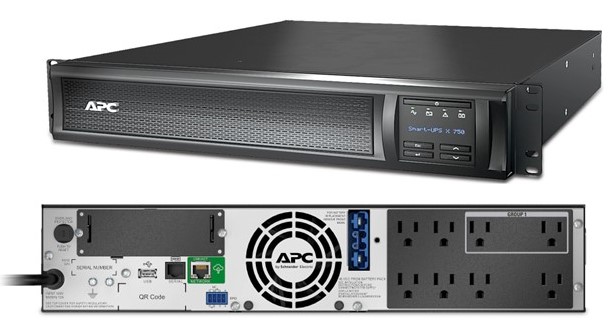

Product image SMX750CUS
Product image SMX750CUS
Product image SMX750CUS
  • Yes, Smart-UPS supports up to 5 APC external battery pack SMX48RMBP2U.:
  • Select models with an "NC" suffix come with the network management card preinstalled.:
  • APC’s patented ‘green’ mode bypass components that perform AVR when not needed. This results in higher efficiencies across a wide range of load conditions.:
  • Switched outlet groups provide greater control, allowing you to reboot hung devices, program sequenced on-and-off and non-critical load shedding of equipment.:
  • All new devices are on-boarded to the Standard plan with remote power monitoring, UPS and power events, automated distribution of firmware to UPSs with one-click remote installation and downloadable asset and renewal reports. Advanced Plan option provides UPS Outlet Group reboot for remote power cycling of connected IT equipment. Features vary with terms of use.:
  • PowerChute Serial Shutdown is available for download from the apc.com. It is a UPS management software enabling graceful system shutdown in the event of an extended power outage and provides energy management capabilities for desktops, servers, and workstations.:
General Information
CategoryUninterruptible power supplies
DescriptionAPC Smart-UPS X SMX750CUS - UPS (rack-mountable / external) - AC 120 V - 675 Watt - 750 VA - 1-phase - USB, serial, Ethernet - output connectors: 8 - 2U - black - TAA Compliant
ManufacturerAPC by Schneider Electric
MSRP$1,485.00
UNSPSC39121011
Main Specifications
Dimensions & Weight / Depth49 cm
Dimensions & Weight / Height43.2 cm
Dimensions & Weight / Weight22.05 kg
Dimensions & Weight / Width8.9 cm
Header / BrandAPC
Miscellaneous / Product ColorBlack
Networking / Remote Management Interface
  • Ethernet
  • Serial
  • USB
Packaged Quantity1
Power Device / Form FactorRack-mountable / external
Power Device / Output Connector Qty8
Power Device / Power Capacity (VA)750 VA
Power Device / UPS TechnologyLine interactive
Power Device / Voltage RequiredAC 120 V
Product TypeUPS
Service & Support / Type3-year warranty
Battery
FeaturesMaintenance free, leak-proof, sealed
Run Time (Up To)
  • 8 min at full load
  • 25.6 min at half load
  • 50.99 min at 200 Watts
  • 17.24 min at 500 Watts
TechnologyLead acid
TypeExpandable
Dimensions & Weight
Depth49 cm
Height43.2 cm
Weight22.05 kg
Width8.9 cm
Dimensions & Weight (JTFpping)
JTFpping Depth62 cm
JTFpping Height58.9 cm
JTFpping Weight26.5 kg
JTFpping Width24.6 cm
Environmental Parameters
Humidity Range Operating0 - 95%
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Sound Emission40 dB
Expansion / Connectivity
Expansion Slots1 SmartSlot
Interfaces
  • 1 x management (USB)
  • 1 x EPO (emergency power off)
  • 1 x serial - RJ-45
  • SmartConnect
General
ColorBlack
Device TypeUPS - rack-mountable / external
Height (Rack Units)2U
Manufacturer Warranty
Service & Support
  • Limited warranty - 3 years
  • Limited warranty - batteries - 2 years
Miscellaneous
Cables Included
  • Power cable 2.44 m
  • USB cable - external
  • Network cable - external
Compliant StandardscUL, UL 1778, UL 1449, RoHS, REACH
Equipment Protection Value150000 US Dollars
FeaturesAutomatic Voltage Regulation (AVR), LCD display, audible alarm, emergency power off, LED indicators, Green Function, EcoStruxure Ready, 1 switched outlet group, hot-swappable batteries
Included AccessoriesTower stand
Rack Mounting KitIncluded
TAA CompliantYes
Networking
Remote Management InterfaceUSB, serial, Ethernet
Remote Management ProtocolDHCP, IPv4
Power Device
Circuit ProtectionCircuit breaker
Efficiency98.73% at 100% Green mode (on-line)
Frequency Provided50/60 Hz
Frequency Required50/60 Hz ± 3Hz
Input Connectors1 x power NEMA 5-15P
Input VoltageAC 120 V
Input Voltage RangeAC 82 - 143 V
Input Voltage Range (Adjustable)AC 75 - 154 V
Input Wiring1-phase
Output VoltageAC 120 V ± 2% - 50/60 Hz
Power Capacity675 Watt / 750 VA
Power Factor (PF)0.9
Power Output Connectors Details8 x power NEMA 5-15R
Surge Energy Rating645 Joules
Surge SuppressionYes
UPS TechnologyLine interactive
Sustainability Information
ENERGY STARYes
