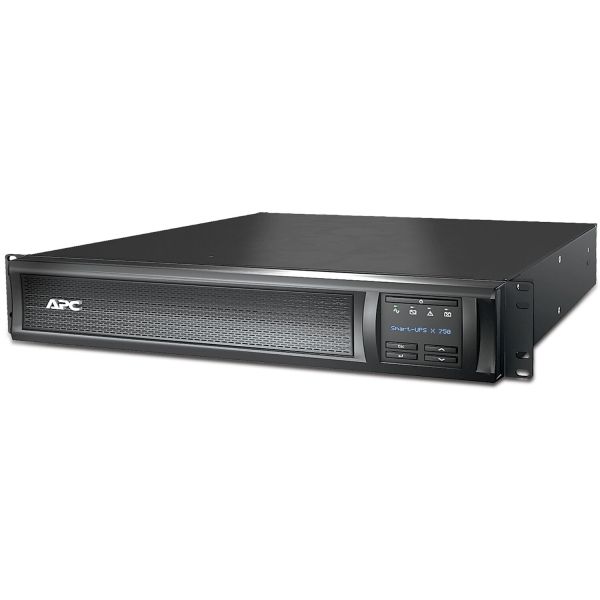

APC Smart-UPS X SMX750CNC
- Yes, SMX750CNC supports up to 5 SMX48RMBP2U battery packs.:
- Options for monitoring and managing your UPS include EcoStruxure IT, Network Management Card and PowerChute.:
- Switched outlet groups provide greater control, allowing you to reboot hung devices, program sequenced on-and-off and non-critical load shedding of equipment.:
- Select models with an "NC" suffix come with the network management card preinstalled.:
- APC’s patented ‘green’ mode bypass components that perform AVR when not needed. This results in higher efficiencies across a wide range of load conditions.:
- PowerChute Network Shutdown v5.0 supports vSphere Cluster Services (vCLS). Ongoing software update support for the latest virtualization environment updates & troubleshooting. Latest cybersecurity updates in PKI support to harden security across the interfaces. Validated integrations with the latest virtual and HCI infrastructure versions for ease of deployment. PowerChute can be fully deployed within the VxRail cluster through the Dell VxRail API Integration (From v4.5), saving space and reducing hardware needs. VxRail cluster shutdown redundancy provided with the Network Management Card 3.:
| General Information | |
|---|---|
| Category | Power conditioning equipment |
| Description | APC Smart-UPS X SMX750CNC - UPS |
| Manufacturer | APC by Schneider Electric |
| MSRP | $2,185.00 |
| UNSPSC | 39121000 |
| Main Specifications | |
| Dimensions & Weight / Depth | 49 cm |
| Dimensions & Weight / Height | 8.89 cm |
| Dimensions & Weight / Weight | 22 kg |
| Dimensions & Weight / Width | 43.2 cm |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable / external |
| Power Device / Output Connector Qty | 8 |
| Power Device / Power Capacity (VA) | 750 VA |
| Power Device / Voltage Required | AC 120 V |
| Product Type | UPS |
| Service & Support / Type | 3-year warranty |
| Battery | |
| Run Time (Up To) |
|
| Dimensions & Weight | |
| Depth | 49 cm |
| Height | 8.89 cm |
| Weight | 22 kg |
| Width | 43.2 cm |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
| Interfaces |
|
| General | |
| Device Type | UPS - rack-mountable / external |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Features | User-replaceable removable battery, audible alarm, LCD display, Automatic Voltage Regulation (AVR), automatic self-test, predicitive failure notification, hot-swappable batteries, auto restart, Intelligent Battery Management, adjustable voltage sensitivity, battery failure notification, SmartConnect port, 2 switched outlet groups |
| Pricing Type | APC Take-Back |
| Networking | |
| Remote Management Interface | Ethernet, USB, serial |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Input Connectors | 1 x power NEMA 5-15R |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 82 - 144 V |
| Input Voltage Range (Adjustable) | AC 75 - 154 V |
| Input Wiring | 1-phase |
| Output Voltage | AC 120 V |
| Output Waveform | Sinewave |
| Power Capacity | 675 watt / 750 VA |
| Power Output Connectors Details | 8 x power NEMA 5-15R |
| Software / System Requirements | |
| Software Included | APC PowerChute Business Edition |
| Sustainability Information | |
| ENERGY STAR | Yes |
| Packaging Recycled Content | Made of recycled cardboard |
