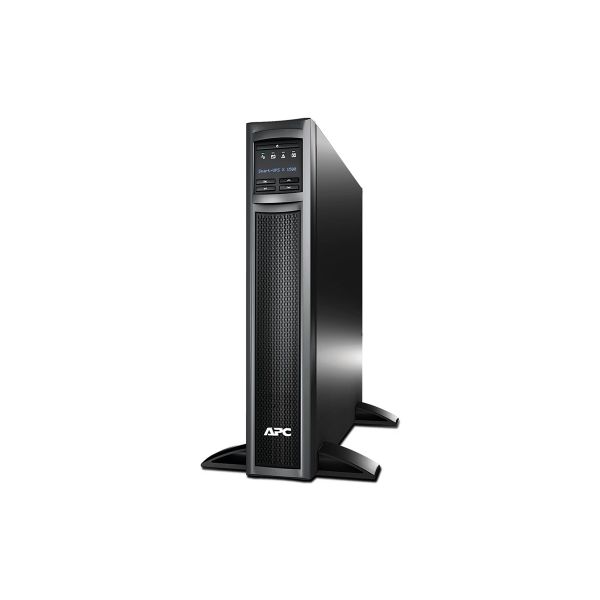

APC Smart-UPS X SMX1500RM2UCNC
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 1440VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-15P input and 8x NEMA 5-15R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies. The UPS is TAA Complaint.



- Yes, Smart-UPS supports up to 5 APC external battery pack SMX48RMBP2U.:
- Select models with an "NC" suffix come with the network management card preinstalled.:
- APC’s patented ‘green’ mode bypass components that perform AVR when not needed. This results in higher efficiencies across a wide range of load conditions.:
- Switched outlet groups provide greater control, allowing you to reboot hung devices, program sequenced on-and-off and non-critical load shedding of equipment.:

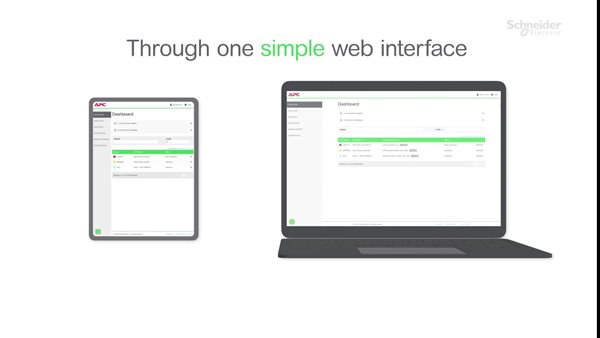

- All new devices are on-boarded to the Standard plan with remote power monitoring, UPS and power events, automated distribution of firmware to UPSs with one-click remote installation and downloadable asset and renewal reports. Advanced Plan option provides UPS Outlet Group reboot for remote power cycling of connected IT equipment. Features vary with terms of use.:
- PowerChute Serial Shutdown is available for download from the apc.com. It is a UPS management software enabling graceful system shutdown in the event of an extended power outage and provides energy management capabilities for desktops, servers, and workstations.:
- PowerChute Network Shutdown v5.0 supports vSphere Cluster Services (vCLS). Ongoing software update support for the latest virtualization environment updates & troubleshooting. Latest cybersecurity updates in PKI support to harden security across the interfaces. Validated integrations with the latest virtual and HCI infrastructure versions for ease of deployment. PowerChute can be fully deployed within the VxRail cluster through the Dell VxRail API Integration (From v4.5), saving space and reducing hardware needs. VxRail cluster shutdown redundancy provided with the Network Management Card 3.:
| General Information | |
|---|---|
| Category | Uninterruptible power supplies |
| Description | APC Smart-UPS X SMX1500RM2UCNC - UPS (rack-mountable / external) - AC 120 V - 1350 Watt - 1440 VA - 1-phase - USB, serial, Ethernet - output connectors: 8 - 2U - black - TAA Compliant |
| Manufacturer | APC by Schneider Electric |
| MSRP | $3,505.00 |
| UNSPSC | 39121011 |
| Main Specifications | |
| Dimensions & Weight / Depth | 49 cm |
| Dimensions & Weight / Height | 43.2 cm |
| Dimensions & Weight / Weight | 24.82 kg |
| Dimensions & Weight / Width | 8.9 cm |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable / external |
| Power Device / Output Connector Qty | 8 |
| Power Device / Power Capacity (VA) | 1440 VA |
| Power Device / UPS Technology | Line interactive |
| Power Device / Voltage Required | AC 120 V |
| Product Type | UPS |
| Service & Support / Type | 3-year warranty |
| Battery | |
| Features | Maintenance free, leak-proof, sealed |
| Run Time (Up To) |
|
| Technology | Lead acid |
| Type | Expandable |
| Dimensions & Weight | |
| Depth | 49 cm |
| Height | 43.2 cm |
| Weight | 24.82 kg |
| Width | 8.9 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 62 cm |
| Shipping Height | 58.9 cm |
| Shipping Weight | 30 kg |
| Shipping Width | 24.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 45 dBA |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
| Interfaces |
|
| General | |
| Color | Black |
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 2U |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | cUL, UL 1778, UL 1449, RoHS, REACH, FCC Part 15 |
| Features | Audible alarm, emergency power off, LCD display, Automatic Voltage Regulation (AVR), LED indicators, Green Function, EcoStruxure Ready, 3 switched outlet groups, hot-swappable batteries |
| Included Accessories | Tower stand |
| Rack Mounting Kit | Included |
| TAA Compliant | Yes |
| Networking | |
| Remote Management Interface | USB, serial, Ethernet |
| Remote Management Protocol | DHCP, IPv4 |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Efficiency | 98.85% at 100% Green mode (on-line) |
| Frequency Provided | 47 - 63 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA 5-15P |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 82 - 143 V |
| Input Voltage Range (Adjustable) | AC 75 - 154 V |
| Input Wiring | 1-phase |
| Output Voltage | AC 120 V 47 - 63 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 1350 Watt / 1440 VA |
| Power Factor (PF) | 0.9 |
| Power Output Connectors Details | 8 x power NEMA 5-15R |
| Surge Energy Rating | 645 Joules |
| Surge Suppression | Yes |
| UPS Technology | Line interactive |
| Software / System Requirements | |
| Software Included | APC PowerChute Business Edition |
| Sustainability Information | |
| ENERGY STAR | Yes |
