APC Smart-UPS X SMX1000CNC

Availability: In stock
SKU
SMX1000CNC
UPC Code
731304428114
Request a Quote
Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transactionsecure transaction
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 1000VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-15P input and 8x NEMA 5-15R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. It comes with APC temperature sensor AP9335T for monitoring temperature. The 2 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

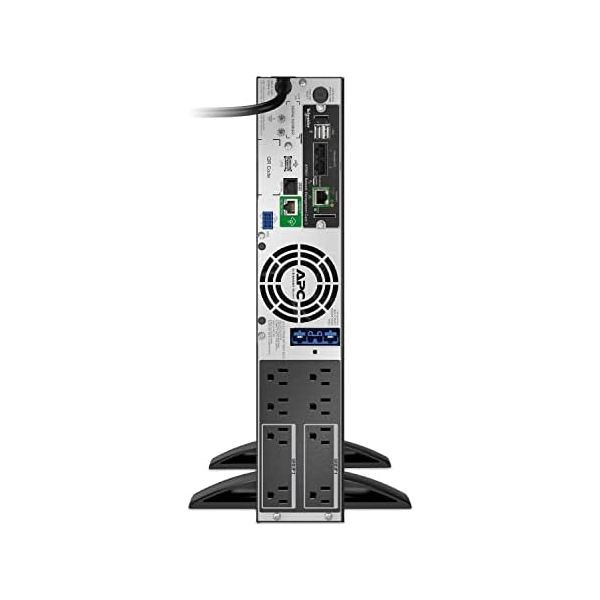

Product image SMX1000CNC
Product image SMX1000CNC
  • Yes, Smart-UPS Ultra supports up to 5 APC external battery pack SMX48RMBP2U.:
  • Options for monitoring and managing your UPS include EcoStruxure IT, SmartConnect, Network Management Card and PowerChute.:
  • Select models with an "NC" suffix come with the network management card preinstalled (i.e. SMX1000CNC, SMX750NC).:
  • APC’s patented ‘green’ mode bypass components that perform AVR when not needed. This results in higher efficiencies across a wide range of load conditions.:
  • Yes, eventually all Smart-UPS models will include connectivity to EcoStruxure IT. However, because of the large number of Smart-UPS models we anticipate this transition will take many months.:
General Information
CategoryRechargeable batteries
DescriptionAPC Smart-UPS X SMX1000CNC - UPS (rack-mountable / external) - AC 120 V - 900 Watt - 1000 VA - 1-phase - 345 Ah - Ethernet, USB, serial - output connectors: 8 - 2U - black - APC Take-Back
ManufacturerAPC by Schneider Electric
MSRP$2,420.00
UNSPSC26111701
Main Specifications
Dimensions & Weight / Depth49 cm
Dimensions & Weight / Height43.2 cm
Dimensions & Weight / Weight22.86 kg
Dimensions & Weight / Width8.9 cm
Header / BrandAPC
Miscellaneous / Product ColorBlack
Networking / Remote Management Interface
  • Ethernet
  • Serial
  • USB
Packaged Quantity1
Power Device / Form FactorRack-mountable / external
Power Device / Output Connector Qty8
Power Device / Power Capacity (VA)1000 VA
Power Device / UPS TechnologyLine interactive
Power Device / Voltage RequiredAC 120 V
Product TypeUPS
Service & Support / Type
  • 3-year warranty
  • 4-year warranty
Battery
Capacity345 Ah
Recharge Time3 hours
Run Time (Up To)
  • 8.25 min at full load
  • 21 min at half load
TechnologyLead acid
TypeExpandable
Dimensions & Weight
Depth49 cm
Height43.2 cm
Weight22.86 kg
Width8.9 cm
Dimensions & Weight (Shipping)
Shipping Depth62 cm
Shipping Height58.9 cm
Shipping Weight27.32 kg
Shipping Width24.6 cm
Environmental Parameters
Humidity Range Operating0 - 95% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Sound Emission40 dBA
Expansion / Connectivity
Expansion Slots1 SmartSlot
Interfaces
  • 2 x management (USB)
  • 1 x USB
  • 1 x serial - RJ-45
  • 1 x management (Ethernet) - RJ-45
  • 1 x SmartConnect - RJ-45
  • 1 x EPO (emergency power off)
General
ColorBlack
Device TypeUPS - rack-mountable / external
Height (Rack Units)2U
Manufacturer Warranty
Service & Support
  • Limited warranty - 3 years
  • Limited warranty - battery - 2 years
Miscellaneous
Cables Included
  • Power cable - integrated - 2.44 m
  • RS-232 cable - external
  • USB cable - external
  • Network cable - external
Compliant StandardsUL 1778, FCC, WEEE, cULus, IP20, EU RoHS
Equipment Protection Value150000 US Dollars
FeaturesUser-replaceable removable battery, audible alarm, emergency power off, LCD display, LED indicators, EcoStruxure Ready, 2 switched outlet groups
Included AccessoriesTower stand, rack mounting brackets
Pricing TypeAPC Take-Back
Rack Mounting KitIncluded
Networking
Remote Management InterfaceEthernet, USB, serial
Power Device
Circuit ProtectionCircuit breaker
Efficiency98.9% at 100% Load, 98.7% at 50% Load
Frequency Provided50/60 Hz ± 3Hz
Frequency Required50/60 Hz ± 3Hz
Input Connectors1 x power NEMA 5-15P
Input VoltageAC 120 V
Input Voltage RangeAC 82 - 143 V
Input Wiring1-phase
Output VoltageAC 120 V ± 2% - 50/60 Hz
Output WaveformSinewave
Power Capacity900 watt / 1000 VA
Power Factor (PF)1.0
Power Output Connectors Details8 x power NEMA 5-15R
Surge Energy Rating693 joules
Surge SuppressionYes
UPS TechnologyLine interactive
Sustainability Information
ENERGY STARYes
Packaging Recycled ContentMade of recycled cardboard
