APC Smart-UPS X 3000 Rack/Tower LCD

Availability: In stock
SKU
SMX3000RMLV2U
UPC Code
731304268550
Request a Quote
Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transactionsecure transaction
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2880VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L5-30P input, 3x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-30R outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

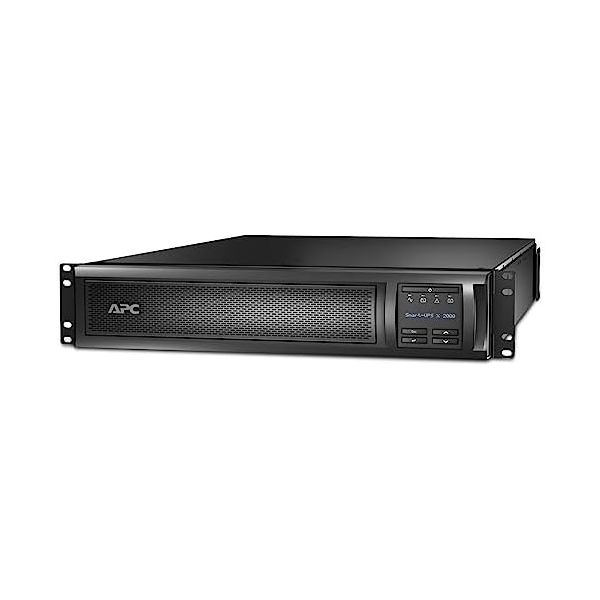

Product image SMX3000RMLV2U
  • Yes, Smart-UPS SMX3000RMLV2U supports up to 10 APC external battery packs SMX120RMBP2U.:
  • Options for monitoring and managing your UPS include EcoStruxure IT, Network Management Card and PowerChute.:
  • Select models with an "NC" suffix come with the network management card preinstalled.:
  • APC’s patented ‘green’ mode bypass components that perform AVR when not needed. This results in higher efficiencies across a wide range of load conditions.:
  • Switched outlet groups provide greater control, allowing you to reboot hung devices, program sequenced on-and-off and non-critical load shedding of equipment.:
  • PowerChute Serial Shutdown is available for download from the apc.com. It is a UPS management software enabling graceful system shutdown in the event of an extended power outage and provides energy management capabilities for desktops, servers, and workstations.:
General Information
CategoryUninterruptible power supplies
DescriptionAPC Smart-UPS X 3000 Rack/Tower LCD - UPS - AC 120 V - 2.7 kW - 3000 VA - RS-232, USB - output connectors: 7 - 2U - black
ManufacturerAPC by Schneider Electric
MSRP$3,975.00
UNSPSC39121011
Main Specifications
Dimensions & Weight / Depth66.7 cm
Dimensions & Weight / Height8.5 cm
Dimensions & Weight / Weight38.5 kg
Dimensions & Weight / Width43.2 cm
Header / BrandAPC
Miscellaneous / Product ColorBlack
Networking / Remote Management Interface
  • RS-232
  • USB
Packaged Quantity1
Power Device / Form FactorExternal
Power Device / Output Connector Qty7
Power Device / Power Capacity (VA)3000 VA
Power Device / UPS TechnologyLine interactive
Power Device / Voltage RequiredAC 120 V
Product TypeUPS
Service & Support / Type3-year warranty
Battery
Recharge Time3 hours
Run Time (Up To)
  • 6.3 min at full load
  • 18 min at half load
TechnologyLead acid
Dimensions & Weight
Depth66.7 cm
Height8.5 cm
Weight38.5 kg
Width43.2 cm
Dimensions & Weight (Shipping)
Shipping Depth86.9 cm
Shipping Height24.3 cm
Shipping Weight45.4 kg
Shipping Width59.6 cm
Environmental Parameters
Humidity Range Operating0 - 95%
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Sound Emission55 dBA
Expansion / Connectivity
Expansion Slots1 (total) / 1 (free) x SmartSlot
Interfaces
  • 1 x EPO (emergency power off)
  • 1 x management
General
ColorBlack
Device TypeUPS - external
Height (Rack Units)2U
Manufacturer Warranty
Service & Support
  • Limited warranty - 3 years
  • Limited warranty - battery - 2 years
Miscellaneous
Cables Included
  • Serial cable
  • USB cable
  • Power cable 2.4 m
Compliant StandardsCSA, TUV, VCCI, BSMI, NOM, UL 1449, UL 1778, EN55022 Class A, EN 50091-2, RoHS Exemption 7b, FCC Part 15 A, REACH
Equipment Protection Value150000 US Dollars
FeaturesUser-replaceable removable battery, audible alarm, LCD display, LED indicators
Pricing TypeAPC Take-Back
Rack Mounting KitIncluded
Networking
Remote Management InterfaceRS-232, USB
Power Device
Circuit ProtectionCircuit breaker
Frequency Provided47 - 53 / 57 - 63 Hz
Frequency Required50/60 Hz
Input Connectors1 x power NEMA L5-30
Input VoltageAC 120 V
Input Wiring1-phase
Output VoltageAC 120 V ± 5% - 47 - 53 / 57 - 63 Hz
Output WaveformSinewave
Power Capacity2.7 kW / 3000 VA
Power Output Connectors Details
  • 3 x power NEMA 5-15R
  • 3 x power NEMA 5-20R
  • 1 x power NEMA L5-30R
Surge Energy Rating540 joules
Surge SuppressionYes
UPS TechnologyLine interactive
Software / System Requirements
Software IncludedDrivers & Utilities
Sustainability Information
Packaging Recycled ContentMade of recycled cardboard
