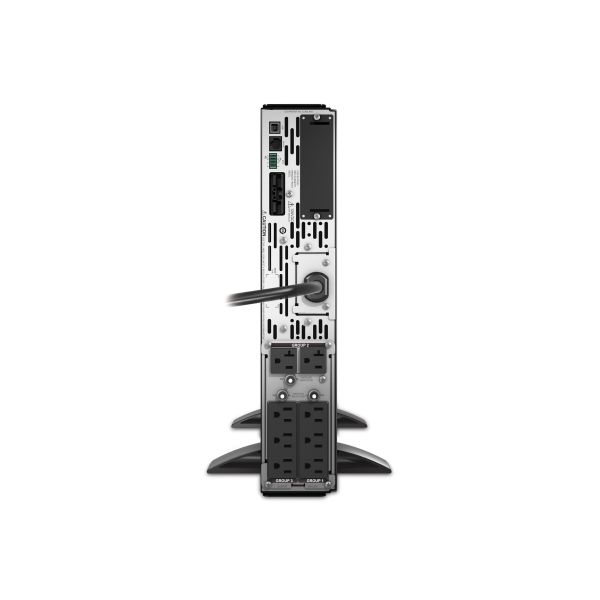

APC Smart-UPS X 2200VA Rack/Tower LCD
- Yes, Smart-UPS SMX2200RMLV2U supports up to 10 APC external battery packs SMX120RMBP2U.:
- Options for monitoring and managing your UPS include EcoStruxure IT, Network Management Card and PowerChute.:
- Select models with an "NC" suffix come with the network management card preinstalled.:
- APC’s patented ‘green’ mode bypass components that perform AVR when not needed. This results in higher efficiencies across a wide range of load conditions.:
- Switched outlet groups provide greater control, allowing you to reboot hung devices, program sequenced on-and-off, and non-critical load shedding of equipment.:
- PowerChute Serial Shutdown is available for download from the apc.com. It is a UPS management software enabling graceful system shutdown in the event of an extended power outage and provides energy management capabilities for desktops, servers, and workstations.:
| General Information | |
|---|---|
| Category | Power conditioning equipment |
| Description | APC Smart-UPS X 2200VA Rack/Tower LCD - UPS (rack-mountable / external) - AC 120 V - 1.98 kW - 2200 VA - RS-232, USB - output connectors: 8 - 2U - black |
| Manufacturer | APC by Schneider Electric |
| MSRP | $3,290.00 |
| UNSPSC | 39121000 |
| Main Specifications | |
| Dimensions & Weight / Depth | 66.7 cm |
| Dimensions & Weight / Height | 8.5 cm |
| Dimensions & Weight / Weight | 38.45 kg |
| Dimensions & Weight / Width | 43.1 cm |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable / external |
| Power Device / Output Connector Qty | 8 |
| Power Device / Power Capacity (VA) | 2200 VA |
| Power Device / UPS Technology | Line interactive |
| Power Device / Voltage Required | AC 120 V |
| Product Type | UPS |
| Service & Support / Type | 3-year warranty |
| Battery | |
| Features | Maintenance free, leak-proof, sealed |
| Quantity | 1 |
| Recharge Time | 3 hours |
| Run Time (Up To) |
|
| Technology | Lead acid |
| Dimensions & Weight | |
| Depth | 66.7 cm |
| Height | 8.5 cm |
| Weight | 38.45 kg |
| Width | 43.1 cm |
| Dimensions & Weight (JTFpping) | |
| JTFpping Depth | 86.9 cm |
| JTFpping Height | 24.3 cm |
| JTFpping Weight | 45.36 kg |
| JTFpping Width | 59.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 55 dBA |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
| Interfaces |
|
| General | |
| Color | Black |
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 2U |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | BSMI, CSA, REACH, RoHS, EN 50091-2, EN 55022 Class A, FCC Part 15 A, NOM, TUV, UL 1778, VCCI Class A |
| Equipment Protection Value | 150000 US Dollars |
| Features | Audible alarm, LCD display, Automatic Voltage Regulation (AVR), LED indicators, overload protection, cold-start function, emergency power off |
| Pricing Type | APC Take-Back |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Power Device | |
| Frequency Provided | 50/60 Hz ± 3Hz |
| Frequency Required | 50/60 Hz ± 3Hz |
| Input Connectors | 1 x power NEMA L5-30P |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 70 - 153 V |
| Input Wiring | 1-phase |
| Output Voltage | AC 120 V ± 5% - 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 1.98 kW / 2200 VA |
| Power Output Connectors Details |
|
| Surge Energy Rating | 540 Joules |
| Surge Suppression | Yes |
| UPS Technology | Line interactive |
| Sustainability Information | |
| ENERGY STAR | Yes |
