APC Smart-UPS - UPS (rack-mountable)

Availability: Out of stock
SKU
SMT2200RM2UNCUS
UPC Code
731304740513
Request a Quote
Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transactionsecure transaction
This APC Smart-UPS is designed for IT professionals and network administrators to maintain business uptime and continuity. The 1920VA line interactive 2U rackmount UPS provides pure sine wave power on battery mode to support critical electronics during power disruptions. The Smart-UPS includes a NEMA 5-20P input, six NEMA 5-15R and two NEMA 5-20R outlets. The UPS has a preinstalled Network Management Card for network-based monitoring and management of UPS. The PowerChute Network Shutdown allows for a graceful shutdown of physical servers, virtual machines, and HCI clusters. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This model is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge can help restore UPS performance to original specifications. The Smart-UPS is compliant with the Trade Agreements Act (TAA) requirements.

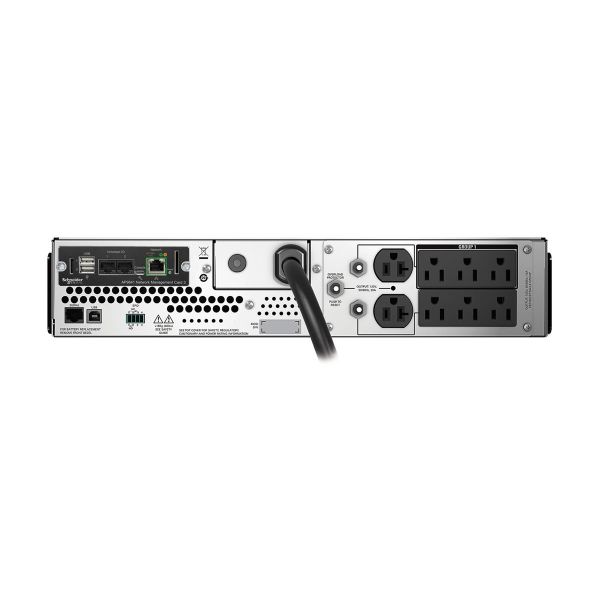

Product image SMT2200RM2UNCUS
  • Smart-UPS SMT are for small to medium businesses who do not have the time or resources to monitor their UPS devices but understand the importance of doing so, or who have trusted a Partner with this task.:
  • Yes, options for monitoring and managing your UPS include EcoStruxure IT, Network Management Card and PowerChute.:
  • Our vendor-neutral data center infrastructure management software, EcoStruxure™ IT, provides flexible deployment options to monitor critical equipment and can deliver insights such as smart alarms directly to your smartphone, making it ideal for customers requiring visibility into UPS, cooling, power and more.:
  • Switched outlet groups provide greater control, allowing you to reboot hung devices, program sequenced on-and-off and non-critical load shedding of equipment.:
  • Select models with an "NC" suffix come with the network management card preinstalled.:
  • PowerChute Network Shutdown v5.0 supports vSphere Cluster Services (vCLS). Ongoing software update support for the latest virtualization environment updates & troubleshooting. Latest cybersecurity updates in PKI support to harden security across the interfaces. Validated integrations with the latest virtual and HCI infrastructure versions for ease of deployment. PowerChute can be fully deployed within the VxRail cluster through the Dell VxRail API Integration (From v4.5), saving space and reducing hardware needs. VxRail cluster shutdown redundancy provided with the Network Management Card 3.:
General Information
CategoryRechargeable batteries
DescriptionAPC Smart-UPS - UPS (rack-mountable) - line interactive, 6 NEMA 5-15R+2 NEMA 5-20R outlets, network card, AVR, LCD - AC 120 V - 1920 Watt - 2200 VA - 1-phase - Ethernet 10/100/1000, serial, USB - output connectors: 6 - 2U - black - APC Take-Back - TAA Compliant
ManufacturerAPC by Schneider Electric
MSRP$4,255.00
UNSPSC26111701
Main Specifications
Dimensions & Weight / Depth68.3 cm
Dimensions & Weight / Height8.6 cm
Dimensions & Weight / Weight42.31 kg
Dimensions & Weight / Width43.2 cm
Header / BrandAPC
Miscellaneous / Product ColorBlack
Networking / Remote Management Interface
  • Ethernet 10/100/1000
  • Serial
  • USB
Packaged Quantity1
Power Device / Form FactorRack-mountable
Power Device / Output Connector Qty6
Power Device / Power Capacity (VA)2200 VA
Power Device / UPS TechnologyLine interactive
Power Device / Voltage RequiredAC 120 V
Product TypeUPS
Service & Support / Type3-year warranty
Battery
Quantity1
Recharge Time3 hours
Run Time (Up To)
  • 5.38 min at full load
  • 15.85 min at half load
TechnologyLead acid
Transfer Time8 ms
Dimensions & Weight
Depth68.3 cm
Height8.6 cm
Weight42.31 kg
Width43.2 cm
Dimensions & Weight (JTFpping)
JTFpping Depth60 cm
JTFpping Height25.4 cm
JTFpping Weight49.72 kg
JTFpping Width98 cm
Environmental Parameters
Humidity Range Operating0 - 95%
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Sound Emission55 dBA
Expansion / Connectivity
Expansion Slots1 (total) / 0 (free) x SmartSlot
Interfaces
  • 1 x serial - RJ-45
  • 1 x management (USB) - 4 pin USB Type B
  • 1 x EPO (emergency power off)
  • 2 x USB - 4 pin USB Type A
  • 2 x universal I/O port - RJ-45
  • 1 x console
  • 1 x management (Gigabit Ethernet) - RJ-45
General
ColorBlack
Device TypeUPS - rack-mountable
Height (Rack Units)2U
Manufacturer Warranty
Service & Support
  • Limited warranty - replace or repair - 3 years
  • Limited warranty - battery - 2 years
Miscellaneous
Cables IncludedPower cable 2.4 m
Compliant StandardsRoHS, REACH SvHC, CSA
Equipment Protection Value150000 US Dollars
FeaturesAutomatic Voltage Regulation (AVR), LCD display
Pricing TypeAPC Take-Back
TAA CompliantYes
Networking
Remote Management InterfaceEthernet 10/100/1000, serial, USB
Power Device
Efficiency97.5% at 100% Load, 97.7% at 75% Load, 97.8% at 50% Load, 97% at 25% Load
Frequency Provided50/60 Hz ± 3Hz
Frequency Required50/60 Hz ± 3Hz
Input Connectors1 x power NEMA 5-20P
Input VoltageAC 120 V
Input Voltage Range (Adjustable)AC 75 - 154 V
Input Wiring1-phase
Output VoltageAC 120 V 50/60 Hz
Output WaveformSinewave
Power Capacity1920 Watt / 2200 VA
Power Output Connectors Details6 x power NEMA 5-15R
Surge Energy Rating530 Joules
Surge SuppressionYes
Total Harmonic Distortion (THD)5 %
UPS TechnologyLine interactive
Software / System Requirements
Software IncludedSmartConnect
Sustainability Information
ENERGY STARYes
