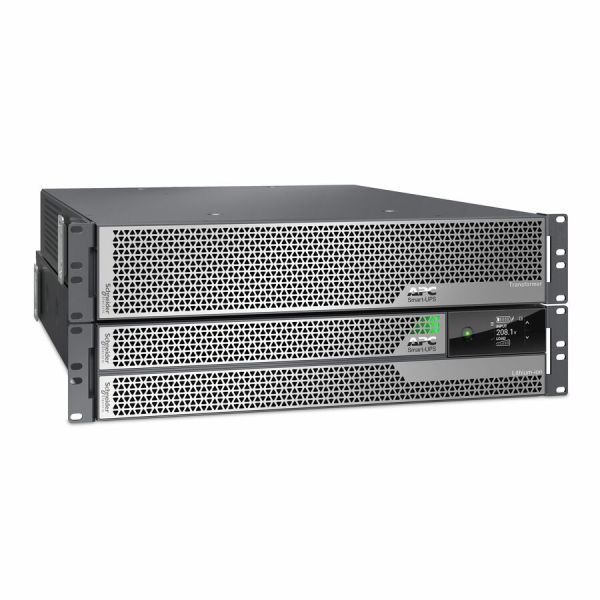

APC Smart-UPS Ultra - UPS (rack-mountable)
| General Information | |
|---|---|
| Category | Rechargeable batteries |
| Description | APC Smart-UPS Ultra - UPS (rack-mountable) - AC 208 V - 4900 watt - 5000 VA - 1-phase - lithium ion - Ethernet, USB - output connectors: 15 - 4U - 3.05 m cord - black |
| Manufacturer | APC by Schneider Electric |
| MSRP | $18,475.00 |
| UNSPSC | 26111701 |
| Main Specifications | |
| Dimensions & Weight / Depth | 71.9 cm |
| Dimensions & Weight / Height | 17.6 cm |
| Dimensions & Weight / Weight | 72.29 kg |
| Dimensions & Weight / Width | 43.2 cm |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 15 |
| Power Device / Power Capacity (VA) | 5000 VA |
| Power Device / UPS Technology | On-line |
| Power Device / Voltage Required |
|
| Product Type | UPS |
| Service & Support / Type | 5-year warranty |
| Battery | |
| Quantity | 1 |
| Recharge Time | 1.5 hours |
| Technology | Lithium ion lithium ion |
| Type | Expandable |
| Voltage Provided | 180 V |
| Dimensions & Weight | |
| Depth | 71.9 cm |
| Height | 17.6 cm |
| Weight | 72.29 kg |
| Width | 43.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 62.2 cm |
| Shipping Height | 50.8 cm |
| Shipping Weight | 79.1 kg |
| Shipping Width | 96 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% RH (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 55 dB |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Interfaces |
|
| General | |
| Color | Black |
| Cord Length | 3.05 m |
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 4U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replace or repair - 5 years |
| Miscellaneous | |
| Cables Included | Power cable - integrated - 3.05 m |
| Compliant Standards | REACH, IP20, China RoHS, EU RoHS, Mercury-free, Energy Star 2.0 |
| Features | User-replaceable removable battery, audible alarm, emergency power off, internal bypass, horizontal orientation, visible alarm, double conversion |
| Included Accessories | Rack mounting rails, rack mounting brackets, temperature probe, bezel, stabilization feet, strain relief |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | Ethernet, USB |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Efficiency | 90%-95% |
| Frequency Provided | 50/60 Hz ± 3Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 x power NEMA L6-30P |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 187 - 230 V |
| Input Wiring | 1-phase |
| Output Voltage | AC 120 V 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 4900 watt / 5000 VA |
| Power Output Connectors Details |
|
| Surge Energy Rating | 1260 joules |
| Surge Suppression | Yes |
| UPS Technology | On-line |
| Sustainability Information | |
| ENERGY STAR | Yes |
| Packaging Recycled Content | Made of recycled cardboard |
