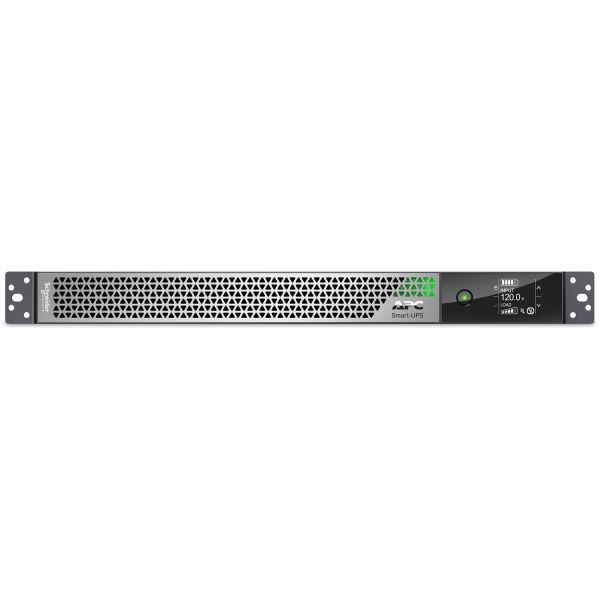

APC Smart-UPS Ultra SRTL2K2RM1UNC
- APC Smart-UPS Ultra (SRTL2K2RM1UNC): The APC Smart-UPS Ultra 2200VA with Embedded Network Management Card leverages next-generation semiconductor technology to deliver more power in a 1U form factor, giving you more space for IT equipment. The Lithium-ion battery eliminates the need for battery replacements, reducing the total cost of ownership. Smart-UPS Ultra’s EcoStruxure Ready remote monitoring and management options allow many tasks to be handled without stepping foot in your IT installation.
| General Information | |
|---|---|
| Category | Power supply units |
| Description | APC Smart-UPS Ultra SRTL2K2RM1UNC - UPS (rack-mountable / external) - AC 120/125 V - 1950 Watt - 2200 VA - 1-phase - 5.16 Ah - Ethernet, USB - output connectors: 6 - 2.4 m cord - for P/N: SRTL50RMBP1U-LI |
| Manufacturer | APC by Schneider Electric |
| MSRP | $8,310.00 |
| UNSPSC | 39121004 |
| Main Specifications | |
| Dimensions & Weight / Depth | 56 cm |
| Dimensions & Weight / Height | 4.3 cm |
| Dimensions & Weight / Weight | 15.9 kg |
| Dimensions & Weight / Width | 43.2 cm |
| Header / Brand | APC |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable / external |
| Power Device / Output Connector Qty | 6 |
| Power Device / Power Capacity (VA) | 2200 VA |
| Power Device / UPS Technology | On-line |
| Power Device / Voltage Required | AC 120/125 V |
| Product Type | UPS |
| Service & Support / Type | 5-year warranty |
| Battery | |
| Capacity | 5.16 Ah |
| Type | Expandable |
| Voltage Provided | 50.4 V |
| Compatibility Information | |
| Designed For | P/N: SRTL50RMBP1U-LI |
| Dimensions & Weight | |
| Depth | 56 cm |
| Height | 4.3 cm |
| Weight | 15.9 kg |
| Width | 43.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 76.4 cm |
| Shipping Height | 27.8 cm |
| Shipping Weight | 24.2 kg |
| Shipping Width | 57.65 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% RH (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Cord Length | 2.4 m |
| Device Type | UPS - rack-mountable / external |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | FCC Part 15 A, IP20 |
| Features | User-replaceable removable battery, LCD display, automatic self-test, IP reset button, 1 switched outlet group |
| Included Accessories | Screws, rack mounting rails, wall mounting bracket, bezel, EPO plug, washers |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | Ethernet, USB |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, HTTP, HTTPS, SSH, SCP, DHCP, RADIUS |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Provided | 50/60 Hz ± 3Hz |
| Frequency Required | 50/60 Hz ± 3Hz |
| Input Connectors | 1 x power NEMA L5-20P |
| Input Voltage | AC 120/125 V |
| Input Voltage Margin | ± 5 V |
| Input Voltage Range | AC 85 - 125 V |
| Input Wiring | 1-phase |
| Output Voltage | AC 120/125 V 50/60 Hz |
| Power Capacity | 1950 watt / 2200 VA |
| Power Capacity Details | 2.2 kVa at 125 V, 2.2 kVA at 120 V |
| Power Modules Qty | 1 |
| Power Output Connectors Details |
|
| UPS Technology | On-line |
| Sustainability Information | |
| Packaging Recycled Content | Made of recycled cardboard |
