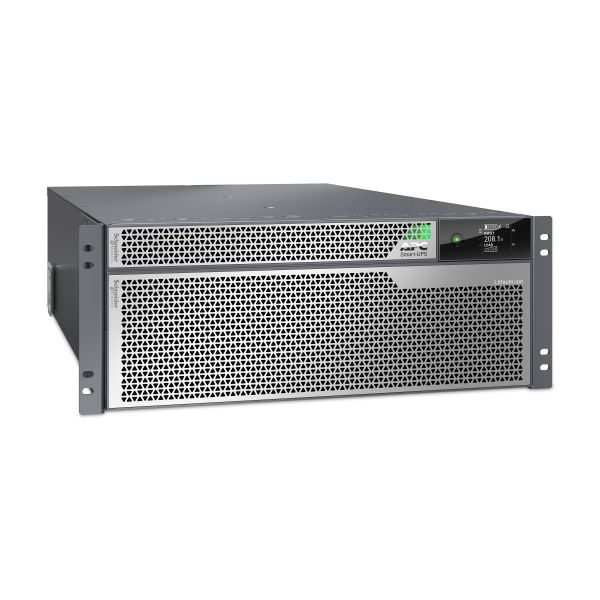

APC Smart-UPS Ultra On-Line
| General Information | |
|---|---|
| Category | Rechargeable batteries |
| Description | APC Smart-UPS Ultra On-Line - UPS (rack-mountable) - 2 L6-20R + 2 L6-30R NEMA outlets, extended runtime, network card, tower, with rail kit - AC 208/240 V - 10000 Watt - 10000 VA - 1-phase - lithium ion - USB, Ethernet - output connectors: 5 - 4U - silver gray - for P/N: SRTL180RM2UBP |
| Manufacturer | APC by Schneider Electric |
| MSRP | $26,370.00 |
| UNSPSC | 26111701 |
| Main Specifications | |
| Dimensions & Weight / Depth | 83.2 cm |
| Dimensions & Weight / Height | 17.5 cm |
| Dimensions & Weight / Weight | 55 kg |
| Dimensions & Weight / Width | 43.2 cm |
| Header / Brand | APC |
| Miscellaneous / Product Color |
|
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 5 |
| Power Device / Power Capacity (VA) | 10000 VA |
| Power Device / UPS Technology | On-line |
| Power Device / Voltage Required | AC 208/240 V |
| Product Type | UPS |
| Service & Support / Type | 5-year warranty |
| Battery | |
| Quantity | 1 |
| Recharge Time | 1.5 hours |
| Run Time (Up To) | 5.57 min at 10000 Watts |
| Technology | Lithium ion lithium ion |
| Type | Expandable |
| Voltage Provided | 180 V |
| Compatibility Information | |
| Designed For | P/N: SRTL180RM2UBP |
| Dimensions & Weight | |
| Depth | 83.2 cm |
| Height | 17.5 cm |
| Weight | 55 kg |
| Width | 43.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 100 cm |
| Shipping Height | 63 cm |
| Shipping Weight | 88.5 kg |
| Shipping Width | 65 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 55 dBA |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
| Interfaces |
|
| General | |
| Color | Silver gray |
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 4U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replace or repair - 5 years |
| Miscellaneous | |
| Cables Included | USB cable - external |
| Compliant Standards | cULus, Energy Star 2.0, UL 1778, IP20, REACH, EU RoHS, China RoHS, Mercury-free |
| Features | Vertical orientation, horizontal orientation, Auto-Sensing Technology, double conversion, internal bypass, LCD display, visible alarm, audible alarm, emergency power off |
| Included Accessories | Network management card, temperature probe, stabilization feet, strain relief |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | USB, Ethernet |
| Power Device | |
| Frequency Provided | 50/60 Hz ± 3Hz |
| Frequency Required | 40 - 70 Hz ± 0.1Hz |
| Input Connectors | 1 x hardwire 3-wire (2PH + G) |
| Input Voltage | AC 208/240 V |
| Input Wiring | 1-phase |
| Max Electric Current | 58 A |
| Output Voltage | AC 208/240 V 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 10000 Watt / 10000 VA |
| Power Output Connectors Details |
|
| Surge Energy Rating | 1410 Joules |
| Surge Suppression | Yes |
| Total Harmonic Distortion (THD) | 5 % |
| UPS Technology | On-line |
| Sustainability Information | |
| ENERGY STAR | Yes |
