APC Smart-UPS SRT SRT3000XLAUS

Availability: Out of stock
SKU
SRT3000XLAUS
UPC Code
731304340478
Request a Quote
Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transactionsecure transaction
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line rack/tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA L5-30P input and 8x NEMA 5-20R and 1x NEMA L5-30R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK4 (4-post) and SRTRK3 (2-post) rail kits sold separately.

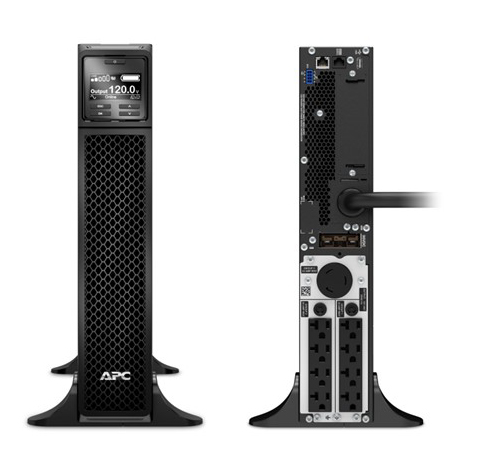

Product image SRT3000XLAUS
Product image SRT3000XLAUS
  • Yes, Smart-UPS Ultra SRT3000XLAUS supports up to 10 APC external SRT96RMBP battery packs.:
  • Options for monitoring and managing your UPS include EcoStruxure IT, Network Management Card, and PowerChute™ Network Shutdown Software.:
  • PowerChute Network Shutdown v5.0 supports vSphere Cluster Services (vCLS). Ongoing software update support for the latest virtualization environment updates & troubleshooting. Latest cybersecurity updates in PKI support to harden security across the interfaces. Validated integrations with the latest virtual and HCI infrastructure versions for ease of deployment. PowerChute can be fully deployed within the VxRail cluster through the Dell VxRail API Integration (From v4.5), saving space and reducing hardware needs. VxRail cluster shutdown redundancy is provided with the Network Management Card 3.:
General Information
CategoryPower conditioning equipment
DescriptionAPC Smart-UPS SRT SRT3000XLAUS - UPS - 2700 Watt - 3000 VA
ManufacturerAPC by Schneider Electric
MSRP$6,970.00
UNSPSC39121000
Main Specifications
Dimensions & Weight / Depth63.5 cm
Dimensions & Weight / Height8.5 cm
Dimensions & Weight / Width43.2 cm
Header / BrandAPC
Miscellaneous / Product ColorBlack
Networking / Remote Management Interface
  • RS-232
  • USB
Packaged Quantity1
Power Device / Form FactorExternal
Power Device / Output Connector Qty9
Power Device / Power Capacity (VA)3000 VA
Power Device / UPS TechnologyOn-line
Power Device / Voltage RequiredAC 120 V
Product TypeUPS
Service & Support / Type3-year warranty
Battery
FeaturesMaintenance free, sealed, leak-proof
Recharge Time3 hours
Run Time (Up To)
  • 3.2 min at full load
  • 10.3 min at half load
TechnologyLead acid
Compatibility Information
Designed ForP/N: SRT96BP
Dimensions & Weight
Depth63.5 cm
Height8.5 cm
Width43.2 cm
Dimensions & Weight (Shipping)
Shipping Depth87.1 cm
Shipping Height24.6 cm
Shipping Width59.9 cm
Environmental Parameters
Humidity Range Operating0 - 95% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Sound Emission55 dBA
Expansion / Connectivity
Expansion Slots1 (total) / 0 (free) x SmartSlot
Interfaces
  • 1 x serial - RJ-45
  • 1 x EPO (emergency power off)
  • 1 x management (USB)
General
ColorBlack
Cord Length2.4 m
Device TypeUPS - external
Height (Rack Units)2U
Manufacturer Warranty
Service & Support
  • Limited warranty - 3 years
  • Limited warranty - battery - 2 years
Miscellaneous
Compliant StandardsCSA C22.2 No. 107.3, FCC Part 15 A, UL 1778, BAA
FeaturesAudible alarm, emergency power off, LCD display, internal bypass
Pricing TypeAPC Take-Back
TAA CompliantYes
Networking
Remote Management InterfaceRS-232, USB
Power Device
Frequency Provided50/60 Hz ± 3Hz
Frequency Required40 - 70 Hz
Input Connectors1 x power NEMA L5-30P
Input VoltageAC 120 V
Input Voltage RangeAC 108 - 150 V
Input Wiring1-phase
Output VoltageAC 120 V 50/60 Hz
Output WaveformSinewave
Power Capacity2700 Watt / 3000 VA
Power Output Connectors Details
  • 8 x power NEMA 5-20R
  • 1 x power NEMA L5-30R
Surge SuppressionYes
UPS TechnologyOn-line
Sustainability Information
ENERGY STARYes
