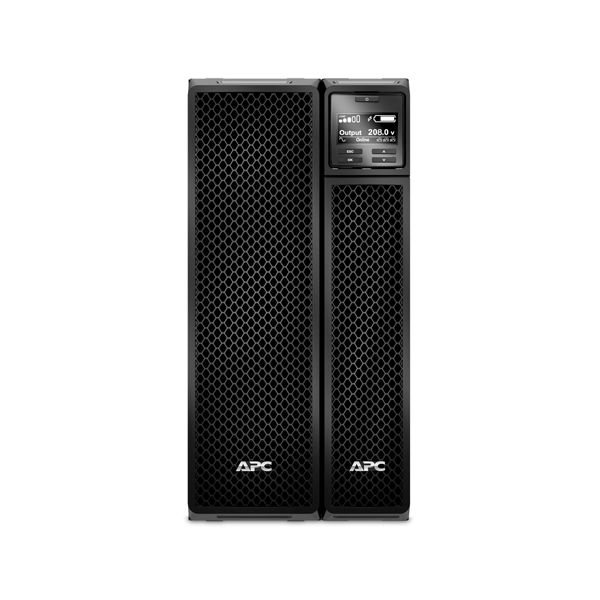

APC SMART-UPS SRT 3000VA208/240V TO 120V STEP-DOWN TRNSFRMR

Be the first to review this product

Availability: In stock

SKU

SRT3000XLT-5KTF

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA L6-20P input, 4x L6-20R, 8x 5-20R, 1x L14-30R, and 1x L6-30R NEMA outlets. The UPS has an optional Network Management Card for network-based monitoring and PowerChute Business Edition for unattended shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK4 (4-post) and SRTRK3 (2-post) rail kits sold separately.

Specifications

General Information
Category	Power conditioning equipment
Description	APC SMART-UPS SRT 3000VA208/240V TO 120V STEP-DOWN TRNSFRMR
Manufacturer	APC by Schneider Electric
MSRP	$8,175.00
UNSPSC	39121000
Main Specifications
Dimensions & Weight / Depth	63.5 cm
Dimensions & Weight / Height	43.2 cm
Dimensions & Weight / Weight	88 kg
Dimensions & Weight / Width	21.5 cm
Header / Brand	APC
Miscellaneous / Product Color	Black
Networking / Remote Management Interface	USB
Packaged Quantity	1
Power Device / Form Factor	External
Power Device / Output Connector Qty	14
Power Device / Power Capacity (VA)	3000 VA
Power Device / UPS Technology	On-line
Power Device / Voltage Required	AC 208 V AC 208/240 V
Product Type	UPS
Service & Support / Type	3-year warranty
Battery
Features	Maintenance free, sealed, leak-proof
Recharge Time	3 hours
Run Time (Up To)	3.8 min at full load 11.4 min at half load
Technology	Lead acid
Compatibility Information
Designed For	P/N: SRT96BP
Dimensions & Weight
Depth	63.5 cm
Height	43.2 cm
Weight	88 kg
Width	21.5 cm
Dimensions & Weight (Shipping)
Shipping Depth	98 cm
Shipping Height	59.4 cm
Shipping Weight	100.24 kg
Shipping Width	60.3 cm
Environmental Parameters
Humidity Range Operating	0 - 95% (non-condensing)
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
Sound Emission	55 dBA
Expansion / Connectivity
Expansion Slots	1 (total) / 1 (free) x SmartSlot
Interfaces	1 x serial - RJ-45 1 x EPO (emergency power off) 1 x management (USB) - 4 pin USB Type A
General
Bundled with	208/240V to 120V Step-Down Transformer
Color	Black
Cord Length	3.05 m
Device Type	UPS - external
Manufacturer Warranty
Service & Support	Limited warranty - 3 years Limited warranty - battery - 2 years
Miscellaneous
Cables Included	Power cable - integrated - 3.05 m USB cable - external
Compliant Standards	UL 1778, RoHS, FCC Part 15 A, REACH, IP20
Features	User-replaceable removable battery, audible alarm, LCD display, internal bypass
Pricing Type	APC Take-Back
Networking
Remote Management Interface	USB
Power Device
Frequency Provided	50/60 Hz
Frequency Required	40 - 70 Hz
Input Connectors	1 x power NEMA L6-20
Input Voltage	AC 208 V
Input Voltage Range	AC 160 - 275 V
Input Wiring	1-phase
Output Voltage	AC 120/208 V ± 2% - 50/60 Hz
Output Waveform	Sinewave
Power Capacity	2700 watt / 3000 VA
Power Output Connectors Details	8 x power NEMA 5-20R 4 x power NEMA L6-20R 1 x power NEMA L6-30R 1 x power NEMA L14-30R
Surge Energy Rating	340 joules
Surge Suppression	Yes
UPS Technology	On-line
Software / System Requirements
Software Included	Drivers & Utilities
Sustainability Information
ENERGY STAR	Yes
Packaging Recycled Content	Made of recycled cardboard
