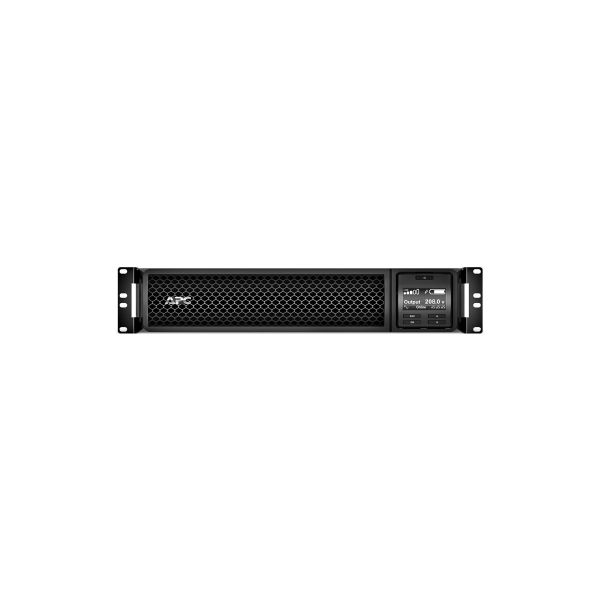

Apc Smart-Ups Srt 3000Va Rm 208V Network Card
- Yes, Smart-UPS Ultra SRT3000RMXLT-NC supports up to 10 APC external SRT96RMBP battery packs.:
- Options for monitoring and managing your UPS include EcoStruxure IT, Network Management Card, and PowerChute™ Network Shutdown Software.:
- PowerChute Network Shutdown v5.0 supports vSphere Cluster Services (vCLS). Ongoing software update support for the latest virtualization environment updates & troubleshooting. Latest cybersecurity updates in PKI support to harden security across the interfaces. Validated integrations with the latest virtual and HCI infrastructure versions for ease of deployment. PowerChute can be fully deployed within the VxRail cluster through the Dell VxRail API Integration (From v4.5), saving space and reducing hardware needs. VxRail cluster shutdown redundancy is provided with the Network Management Card 3.:
| General Information | |
|---|---|
| Category | Power conditioning equipment |
| Description | Apc Smart-Ups Srt 3000Va Rm 208V Network Card |
| Manufacturer | APC by Schneider Electric |
| MSRP | $7,885.00 |
| UNSPSC | 39121000 |
| Main Specifications | |
| Dimensions & Weight / Depth | 63.5 cm |
| Dimensions & Weight / Height | 8.5 cm |
| Dimensions & Weight / Weight | 31.3 kg |
| Dimensions & Weight / Width | 43.2 cm |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface | USB |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 3 |
| Power Device / Power Capacity (VA) | 3000 VA |
| Power Device / UPS Technology | On-line |
| Power Device / Voltage Required |
|
| Product Type | UPS |
| Service & Support / Type | 3-year warranty |
| Battery | |
| Features | Maintenance free, sealed, leak-proof |
| Recharge Time | 3 hours |
| Run Time (Up To) |
|
| Technology | Lead acid |
| Compatibility Information | |
| Designed For | P/N: SRT96RMBP |
| Dimensions & Weight | |
| Depth | 63.5 cm |
| Height | 8.5 cm |
| Weight | 31.3 kg |
| Width | 43.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 87.1 cm |
| Shipping Height | 24.6 cm |
| Shipping Weight | 39.92 kg |
| Shipping Width | 59.9 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 55 dBA |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 0 (free) x SmartSlot |
| Interfaces |
|
| General | |
| Bundled with | APC UPS Network Management Card AP9631 |
| Color | Black |
| Cord Length | 3.05 m |
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 2U |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | UL 1778, RoHS, FCC Part 15 A, REACH, CSA C22.2 No. 107.3, IP20 |
| Features | User-replaceable removable battery, audible alarm, LCD display, internal bypass |
| Included Accessories | Rack mounting rails |
| Pricing Type | APC Take-Back |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | USB |
| Power Device | |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 x power NEMA L6-20 |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 160 - 275 V |
| Input Voltage Range (Adjustable) | AC 100 - 275 V |
| Input Wiring | 1-phase |
| Output Voltage | AC 208 V 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 2700 watt / 3000 VA |
| Power Output Connectors Details |
|
| Surge Energy Rating | 340 joules |
| Surge Suppression | Yes |
| UPS Technology | On-line |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| Sustainability Information | |
| ENERGY STAR | Yes |
| Packaging Recycled Content | Made of recycled cardboard |
