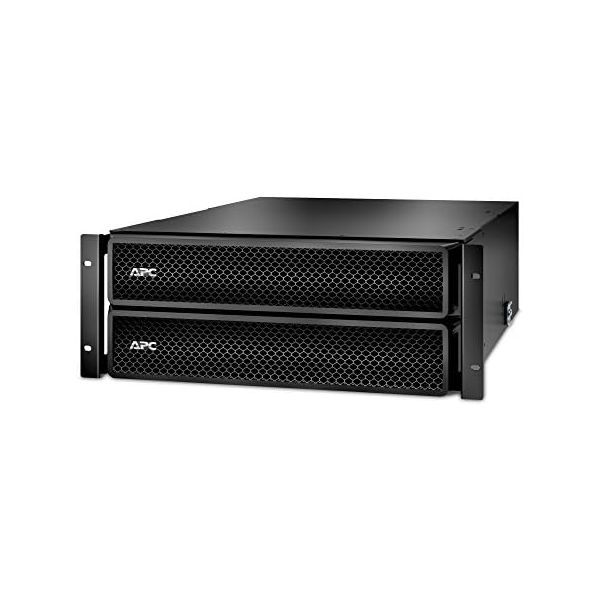

APC Smart-UPS SRT 10kVA RM Step-Down Transformer

Be the first to review this product

Availability: Out of stock

SKU

SRT10KRMTF

UPC Code

731304318859

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

This APC Smart-UPS SRT Step-Down Transformer supports load capacity of 10kVA capacity and is designed for rack-mount installations. It occupies 4U of rack space and features two NEMA L5-20R and two NEMA L14-30R outlets. The unit is built for high reliability, with an operating temperature range of 0 to 40°C and a relative humidity tolerance of 0 to 95% non-condensing.

Specifications

General Information
Category	Power conditioning equipment
Description	APC Smart-UPS SRT 10kVA RM Step-Down Transformer - transform
Manufacturer	APC by Schneider Electric
MSRP	$4,065.00
UNSPSC	39121000
Main Specifications
Dimensions & Weight / Depth	74.9 cm
Dimensions & Weight / Height	17.5 cm
Dimensions & Weight / Weight	99.79 kg
Dimensions & Weight / Width	43.2 cm
Header / Brand	APC
Miscellaneous / Product Color	Black
Packaged Quantity	1
Power Device / Form Factor	Rack-mountable
Power Device / Output Connector Qty	7
Power Device / Power Capacity (VA)	10000 VA
Power Device / Voltage Required	AC 208 V
Product Type	Transformer
Service & Support / Type	2-year warranty
Compatibility Information
Designed For	P/N: AR3103, AR3103SP, AR3106SP, AR3357X674, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, SRC10000UXICH, SRC10000XLICH, SRC5000UXICH, SRC5000XLICH, SRC6000UXICH, SRC6000XLICH, SRC8000UXICH, SRC8000XLICH, SRT10KRMXLI, SRT8KRMXLI, SRT8KXLI, SURT10000RMXLI, SURT10000UXICH, SURT10000XLI, SURT10000XLT-1TF10K, SURT15KRMXLI, SURT20KRMXLI, SURT8000RMXLI, SURT8000XLI, SURT8000XLT
Dimensions & Weight
Depth	74.9 cm
Height	17.5 cm
Weight	99.79 kg
Width	43.2 cm
Dimensions & Weight (JTFpping)
JTFpping Depth	100 cm
JTFpping Height	40.6 cm
JTFpping Weight	124.74 kg
JTFpping Width	60 cm
Environmental Parameters
Humidity Range Operating	0 - 95% (non-condensing)
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
General
Color	Black
Device Type	Transformer - rack-mountable
Height (Rack Units)	4U
Rack Size	19"
Manufacturer Warranty
Service & Support	Limited warranty - 2 years
Miscellaneous
Compliant Standards	CSA, UL, RoHS, REACH
Rack Mounting Kit	Included
Power Device
Frequency Required	45 - 55 Hz
Input Connectors	1 x hardwire 3-wire (2PH + G)
Input Voltage	AC 208 V
Input Voltage Range	AC 200 - 240 V
Max Electric Current	60 A
Output Voltage	AC 120/208/240 V
Power Capacity	10000 VA
Power Output Connectors Details	2 x hardwire 3-wire (2PH + G) 1 x hardwire 4-wire (2PH+N+G) 2 x power NEMA L14-30R 2 x power NEMA L5-20R
Sustainability Information
Packaging Recycled Content	Made of recycled cardboard
