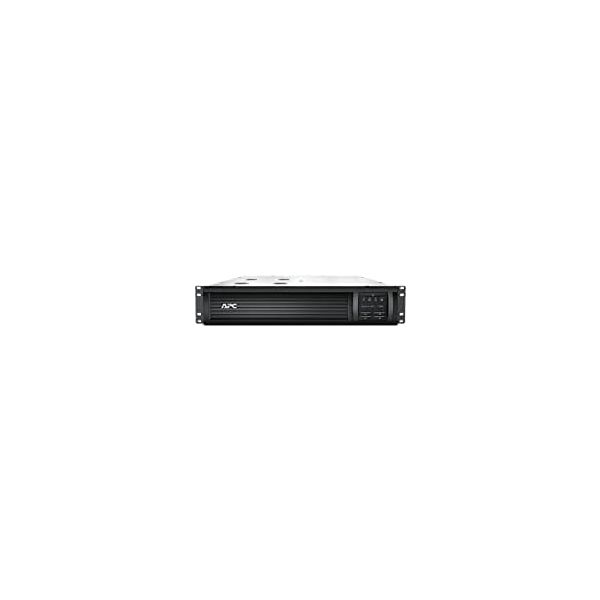

APC Smart-UPS SMT1500RM2UC
| General Information | |
|---|---|
| Category | Rechargeable batteries |
| Description | APC Smart-UPS SMT1500RM2UC - UPS (rack-mountable) - AC 120 V - 1 kW - 1440 VA - 1-phase - 1 x battery - USB, serial - output connectors: 6 - 2U - black - with APC SmartConnect |
| Manufacturer | APC by Schneider Electric |
| MSRP | $1,505.00 |
| UNSPSC | 26111701 |
| Main Specifications | |
| Dimensions & Weight / Depth | 47.7 cm |
| Dimensions & Weight / Height | 8.6 cm |
| Dimensions & Weight / Weight | 26.5 kg |
| Dimensions & Weight / Width | 43.2 cm |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 6 |
| Power Device / Power Capacity (VA) | 1440 VA |
| Power Device / UPS Technology | Line interactive |
| Power Device / Voltage Required | AC 120 V |
| Product Type | UPS |
| Service & Support / Type | 3-year warranty |
| Battery | |
| Features | Maintenance free, sealed, leak-proof |
| Quantity | 1 1 |
| Recharge Time | 3 hours |
| Run Time (Up To) |
|
| Technology | Lead acid |
| Transfer Time | 6 ms |
| Dimensions & Weight | |
| Depth | 47.7 cm |
| Height | 8.6 cm |
| Weight | 26.5 kg |
| Width | 43.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 61 cm |
| Shipping Height | 23.5 cm |
| Shipping Weight | 32.12 kg |
| Shipping Width | 59 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 45 dBA |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
| Interfaces |
|
| General | |
| Bundled with | APC SmartConnect |
| Color | Black |
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 2U |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | CSA, ICES-003, UL 1449, UL 1778, CSA C22.2 No. 107.1, RoHS, REACH, FCC Part 15 Class B |
| Equipment Protection Value | 150000 US Dollars |
| Features | User-replaceable removable battery, audible alarm, LCD display, Automatic Voltage Regulation (AVR), LED indicators, cold-start function, automatic self-test, hot-swappable batteries, energy meter |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | USB, serial |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Efficiency | 98.3% at 100% Load, 97.2% at 25% Load, 98.2% at 50% Load, 98.3% at 75% Load |
| Frequency Provided | 50/60 Hz ± 3Hz |
| Frequency Required | 50/60 Hz ± 3Hz |
| Input Connectors | 1 x power NEMA 5-15P |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 82 - 144 V |
| Input Voltage Range (Adjustable) | AC 75 - 154 V |
| Input Wiring | 1-phase |
| Output Voltage | AC 120 V ± 5% - 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 1 kW / 1440 VA |
| Power Output Connectors Details | 6 x power NEMA 5-15R |
| Surge Energy Rating | 680 joules |
| Surge Suppression | Yes |
| UPS Technology | Line interactive |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| Sustainability Information | |
| ENERGY STAR | Yes |
| Packaging Recycled Content | Made of recycled cardboard |
