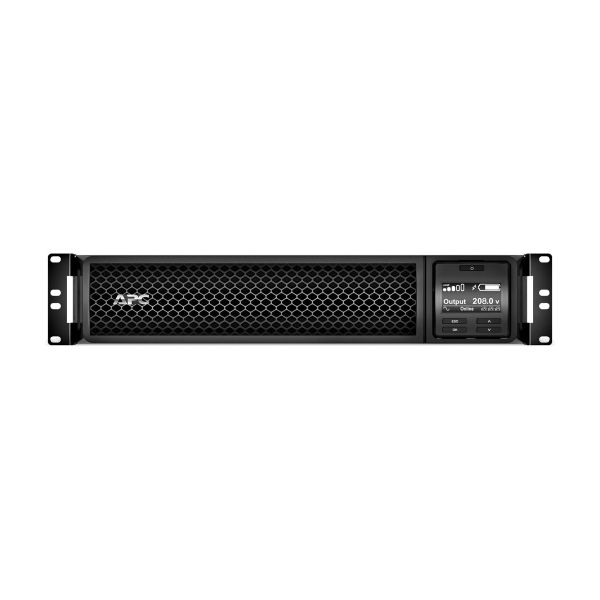

APC Smart-UPS SRT 3000VA RM
| General Information | |
|---|---|
| Category | Power conditioning equipment |
| Description | APC Smart-UPS SRT 3000VA RM - UPS (rack-mountable) - AC 208/240 V - 2700 Watt - 3000 VA - RS-232, USB - output connectors: 3 - 2U - black |
| Manufacturer | APC by Schneider Electric |
| MSRP | $6,480.00 |
| UNSPSC | 39121000 |
| Main Specifications | |
| Dimensions & Weight / Depth | 63.5 cm |
| Dimensions & Weight / Height | 8.5 cm |
| Dimensions & Weight / Weight | 31.3 kg |
| Dimensions & Weight / Width | 43.2 cm |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 3 |
| Power Device / Power Capacity (VA) | 3000 VA |
| Power Device / UPS Technology | On-line |
| Power Device / Voltage Required |
|
| Product Type | UPS |
| Service & Support / Type | 3-year warranty |
| Battery | |
| Features | Maintenance free, sealed, leak-proof |
| Recharge Time | 3 hours |
| Run Time (Up To) |
|
| Technology | Lead acid |
| Compatibility Information | |
| Designed For | P/N: SRT96RMBP |
| Dimensions & Weight | |
| Depth | 63.5 cm |
| Height | 8.5 cm |
| Weight | 31.3 kg |
| Width | 43.2 cm |
| Dimensions & Weight (JTFpping) | |
| JTFpping Depth | 87.1 cm |
| JTFpping Height | 24.6 cm |
| JTFpping Weight | 39.92 kg |
| JTFpping Width | 59.9 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 55 dBA |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
| Interfaces |
|
| General | |
| Color | Black |
| Cord Length | 3.05 m |
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 2U |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included | Power cable 3.05 m |
| Compliant Standards | cUL, UL 1778, RoHS, FCC Part 15 A, REACH, IP20 |
| Features | Audible alarm, LCD display, internal bypass, Eco-Mode |
| Included Accessories | Rack mounting rails |
| Pricing Type | APC Take-Back |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Power Device | |
| Efficiency | 92.7% at 100% Load |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 x power NEMA L6-20 |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 160 - 275 V |
| Input Voltage Range (Adjustable) | AC 100 - 275 V |
| Input Wiring | 1-phase |
| Output Voltage | AC 208 V 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 2700 Watt / 3000 VA |
| Power Output Connectors Details |
|
| Surge Energy Rating | 340 Joules |
| Surge Suppression | Yes |
| UPS Technology | On-line |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| Sustainability Information | |
| ENERGY STAR | Yes |
