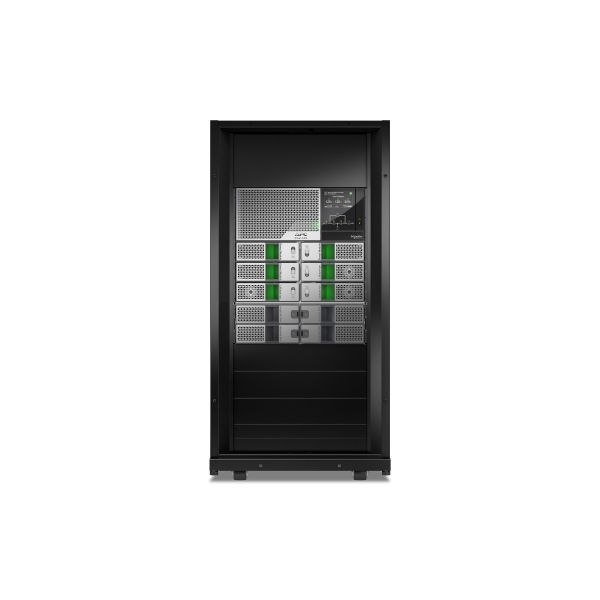

APC Smart-UPS Modular Ultra

Be the first to review this product

Availability: Out of stock

SKU

SRYL15K20XLT24

Compare with Similar items

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

Smart-UPS Modular Ultra Tower provides 2.5x more power protection and available U-space in a standalone UPS for a flexible installation to accommodate power needs where necessary. Scale up to 20kW of single-phase power protection with a smaller, lighter and more powerful modular UPS to free up enclosure space for more equipment. Designed for local edge environments, the Smart-UPS Modular Ultra rackmount and tower solutions provide consistent and reliable connectivity at the most critical moments.

Specifications

General Information
Category	Business software
Description	APC Smart-UPS Modular Ultra - UPS (rack-mountable) - 208/240V, network management card, on-line, touchscreen, tower, scalable to 20kW N+1 redundant - AC 120/208/240 V - 15 kW - 15000 VA - 1-phase - 24U - black, silver - for P/N: SRYLFXBPRM4, SRYLPD1, SRYLPD2, SRYLPD3, SRYLPD4, SRYLPD5, SRYLPD7, SRYLSBP20KP
Manufacturer	APC by Schneider Electric
MSRP	$59,065.00
UNSPSC	43231500
Main Specifications
Dimensions & Weight / Depth	90 cm
Dimensions & Weight / Height	119.8 cm
Dimensions & Weight / Weight	234 kg
Dimensions & Weight / Width	60 cm
Header / Brand	APC
Miscellaneous / Product Color	Black Silver
Packaged Quantity	1
Power Device / Form Factor	Rack-mountable
Power Device / Power Capacity (VA)	15000 VA
Power Device / UPS Technology	On-line
Power Device / Voltage Required	AC 120/208/240 V AC 208/240 V
Product Type	UPS
Service & Support / Type	5-year warranty
Battery
Technology	Lithium ion
Type	Expandable
Compatibility Information
Designed For	P/N: AP9640, AP9641, AP9643, SRYLFXBPRM4, SRYLPD1, SRYLPD2, SRYLPD3, SRYLPD4, SRYLPD5, SRYLPD7, SRYLSBP20KP
Dimensions & Weight
Depth	90 cm
Height	119.8 cm
Weight	234 kg
Width	60 cm
Dimensions & Weight (JTFpping)
JTFpping Depth	99.5 cm
JTFpping Height	132.2 cm
JTFpping Weight	256.36 kg
JTFpping Width	74.6 cm
Environmental Parameters
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
Sound Emission	68 dB
General
Color	Black, silver
Device Type	UPS - rack-mountable
Height (Rack Units)	24U
Manufacturer Warranty
Service & Support	Limited warranty - 5 years
Miscellaneous
Compliant Standards	RoHS, REACH, China RoHS, EU RoHS, Mercury-free, Energy Star 2.0
Features	Emergency power off, internal bypass, touch screen LCD display, double conversion, scalable to 20kW
Included Accessories	Network management card
Power Device
Frequency Required	40 - 70 Hz
Input Connectors	1 x hardwire 4-wire (2PH+N+G)
Input Voltage	AC 120/208/240 V
Input Wiring	1-phase
Output Voltage	AC 120/208/240 V
Output Waveform	Sinewave
Power Capacity	15 kW / 15000 VA
Power Modules Qty	3
Power Redundancy	Optional
Power Redundancy Scheme	N+1
UPS Technology	On-line
Sustainability Information
ENERGY STAR	Yes
