APC Smart-UPS Li-Ion SMTL2200RM2UC

Availability: In stock
SKU
SMTL2200RM2UC
UPC Code
731304429098
Request a Quote
Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transactionsecure transaction
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1920VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-20P input, 6 NEMA 5-15R and 2 NEMA 5-20R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.

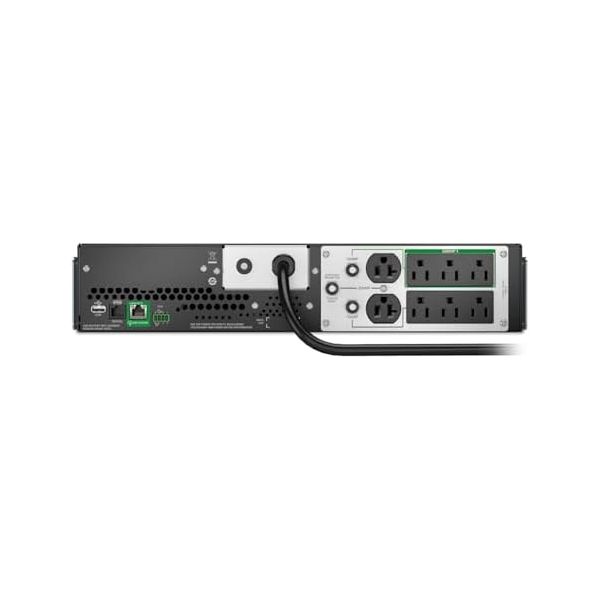

Product image SMTL2200RM2UC
Product image SMTL2200RM2UC
  • The Lithium-Ion batteries used in Smart-UPS can last 8 to 10 years or 3000 charge/discharge cycles. Valve Regulated Lead Acid (VRLA) batteries typically last 3 to 5 years or 200 discharge cycles.:
  • No. Batteries for Smart-UPS with Lithium-ion are not compatible with Smart- UPS with VRLA batteries.:
  • There is a 5-year warranty for both the electronics and the internal batteries.:
  • All new devices are on-boarded to the Standard plan with remote power monitoring, UPS and power events, automated distribution of firmware to UPSs with one-click remote installation and downloadable asset and renewal reports. Advanced Plan option provides UPS Outlet Group reboot for remote power cycling of connected IT equipment. Features vary with terms of use.:
General Information
CategoryRechargeable batteries
DescriptionAPC Smart-UPS Li-Ion SMTL2200RM2UC - UPS (rack-mountable) - AC 120 V - 1920 Watt - 2200 VA - 1-phase - RS-232, USB - output connectors: 8 - 2U - black, silver (front bezel)
ManufacturerAPC by Schneider Electric
MSRP$5,335.00
UNSPSC26111701
Main Specifications
Dimensions & Weight / Depth68.3 cm
Dimensions & Weight / Height8.6 cm
Dimensions & Weight / Weight33.31 kg
Dimensions & Weight / Width43.2 cm
Header / BrandAPC
Miscellaneous / Product Color
  • Black
  • Silver
Networking / Remote Management Interface
  • RS-232
  • USB
Packaged Quantity1
Power Device / Form FactorRack-mountable
Power Device / Output Connector Qty8
Power Device / Power Capacity (VA)2200 VA
Power Device / UPS TechnologyLine interactive
Power Device / Voltage Required
  • AC 110/120/125 V
  • AC 120 V
Product TypeUPS
Service & Support / Type5-year warranty
Battery
Recharge Time2 hours
Run Time (Up To)
  • 6 min at full load
  • 12 min at half load
TechnologyLithium ion
Transfer Time6 ms
Dimensions & Weight
Depth68.3 cm
Height8.6 cm
Weight33.31 kg
Width43.2 cm
Dimensions & Weight (Shipping)
Shipping Depth98 cm
Shipping Height25.4 cm
Shipping Weight42.66 kg
Shipping Width60 cm
Environmental Parameters
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Sound Emission55 dB
Expansion / Connectivity
Expansion Slots1 (total) / 1 (free) x SmartSlot
Interfaces
  • 1 x management (RS-232) - RJ-45
  • 1 x management (USB)
  • 1 x SmartConnect - RJ-45
General
ColorBlack, silver (front bezel)
Device TypeUPS - rack-mountable
Height (Rack Units)2U
Manufacturer Warranty
Service & SupportLimited warranty - 5 years
Miscellaneous
Cables IncludedPower cable 2.44 m
Compliant StandardsC-Tick, GS, UL 1449, IEC 60950, RoHS, REACH, EAC, RCM, UL 1973
Equipment Protection Value150000 US Dollars
FeaturesUser-replaceable removable battery, audible alarm, LCD display, SmartConnect port
Rack Mounting KitIncluded
Networking
Remote Management InterfaceRS-232, USB
Power Device
Frequency Provided50/60 Hz
Frequency Required50/60 Hz
Input Connectors1 x power NEMA 5-20P
Input VoltageAC 120 V
Input Wiring1-phase
Output VoltageAC 120 V ± 5% - 50/60 Hz
Output WaveformSinewave
Power Capacity1920 watt / 2200 VA
Power Output Connectors Details
  • 2 x power NEMA 5-20R
  • 6 x power NEMA 5-15R
Surge Energy Rating530 joules
Surge SuppressionYes
UPS TechnologyLine interactive
Sustainability Information
Packaging Recycled ContentMade of recycled cardboard
