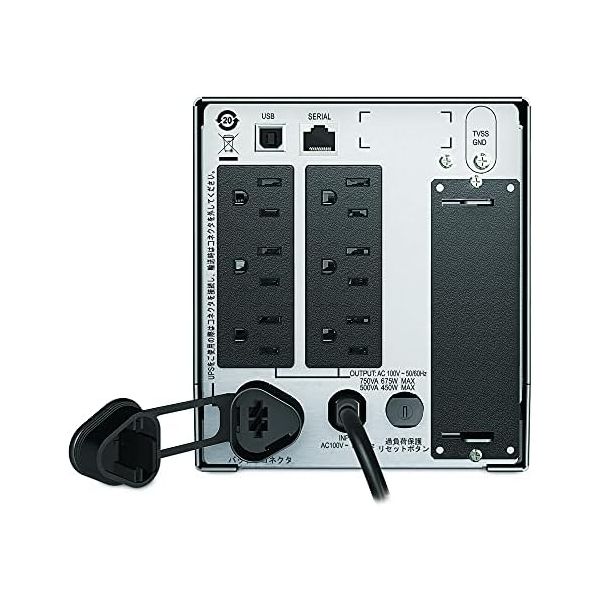

APC Smart-UPS 750VA LCD 100V

Availability: Out of stock
SKU
SMT750J
UPC Code
731304290919
Request a Quote
Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transactionsecure transaction
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 750VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA 5-15R outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 2-year warranty and comes with a built-in lead-acid battery. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
General Information
CategoryUninterruptible power supplies
DescriptionAPC Smart-UPS 750VA LCD 100V
ManufacturerAPC by Schneider Electric
UNSPSC39121011
Main Specifications
Dimensions & Weight / Depth35.9 cm
Dimensions & Weight / Height16.7 cm
Dimensions & Weight / Weight13.2 kg
Dimensions & Weight / Width14 cm
Header / BrandAPC
Header / Country KitsJapan
Miscellaneous / Product ColorBlack
Networking / Remote Management Interface
  • RS-232
  • USB
Packaged Quantity1
Power Device / Form FactorExternal
Power Device / Output Connector Qty6
Power Device / Power Capacity (VA)750 VA
Power Device / UPS TechnologyLine interactive
Power Device / Voltage RequiredAC 100 V
Product TypeUPS
Service & Support / Type3-year warranty
Battery
Quantity1
Recharge Time4 hours
Run Time (Up To)5 min at full load
TechnologyLead acid
Dimensions & Weight
Depth35.9 cm
Height16.7 cm
Weight13.2 kg
Width14 cm
Dimensions & Weight (JTFpping)
JTFpping Depth49.9 cm
JTFpping Height30.1 cm
JTFpping Weight14.2 kg
JTFpping Width27.8 cm
Environmental Parameters
Humidity Range Operating0 - 95%
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Sound Emission55 dBA
Expansion / Connectivity
Expansion Slots1 (total) / 1 (free) x SmartSlot
Interfaces
  • 1 x management (RS-232) - 9 pin D-Sub (DB-9)
  • 1 x USB - 4 pin USB Type A
General
ColorBlack
Device TypeUPS - external
LocalizationJapan
Manufacturer Warranty
Service & Support
  • Limited warranty - 3 years
  • Limited warranty - batteries - 2 years
Miscellaneous
Cables Included
  • Serial cable - external
  • USB cable - external
  • Power cable 1.8 m
Compliant StandardsUL 1449, UL 1778, VCCI Class A ITE, RoHS Exemption 7b, REACH
FeaturesAudible alarm, LCD display
Networking
Remote Management InterfaceRS-232, USB
Power Device
Circuit ProtectionCircuit breaker
Frequency Provided47 - 53 / 57 - 63 Hz
Frequency Required50/60 Hz
Input Connectors1 x power NEMA 5-15
Input VoltageAC 100 V
Input Voltage RangeAC 80 - 123 V
Input Voltage Range (Adjustable)AC 70 - 125 V
Output VoltageAC 100 V ± 5% - 47 - 53 / 57 - 63 Hz
Output WaveformSinewave
Power Capacity500 watt / 750 VA
Power Output Connectors Details6 x power NEMA 5-15
Surge Energy Rating540 joules
Surge Response Time0 ns
Surge SuppressionYes
UPS TechnologyLine interactive
Software / System Requirements
Software IncludedDrivers & Utilities
