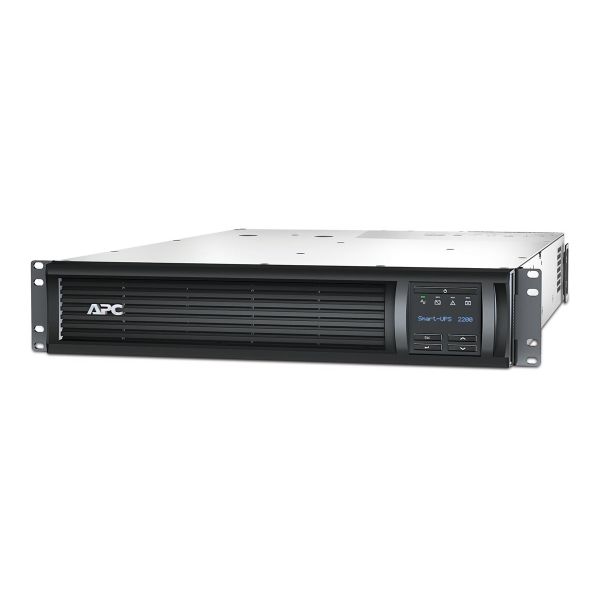

Apc Smart-Ups 2200Va Lcd Rm 2U 120V With Network Card
- Smart-UPS range is for small to medium businesses who do not have the time or resources to monitor their UPS devices but understand the importance of doing so, or who have trusted a Partner with this task.:
- Our vendor-neutral data center infrastructure management software, EcoStruxure™ IT, provides flexible deployment options to monitor critical equipment and can deliver insights such as smart alarms directly to your smartphone, making it ideal for customers requiring visibility into UPS, cooling, power and more.:
- Switchable outlet groups provide greater control, allowing you to reboot hung devices, program sequenced on-and-off and non-critical load shedding of equipment.:
- PowerChute Serial Shutdown is available for download from the apc.com. It is a UPS management software enabling graceful system shutdown in the event of an extended power outage and provides energy management capabilities for desktops, servers, and workstations.:
| General Information | |
|---|---|
| Category | Power conditioning equipment |
| Description | Apc Smart-Ups 2200Va Lcd Rm 2U 120V With Network Card |
| Manufacturer | APC by Schneider Electric |
| MSRP | $3,115.00 |
| UNSPSC | 39121000 |
| Main Specifications | |
| Dimensions & Weight / Depth | 68.3 cm |
| Dimensions & Weight / Height | 8.6 cm |
| Dimensions & Weight / Weight | 42.31 kg |
| Dimensions & Weight / Width | 48 cm |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 8 |
| Power Device / Power Capacity (VA) | 2200 VA |
| Power Device / UPS Technology | Line interactive |
| Power Device / Voltage Required | AC 120 V |
| Product Type | UPS |
| Service & Support / Type | 3-year warranty |
| Battery | |
| Features | Maintenance free, sealed, leak-proof |
| Quantity | 1 |
| Recharge Time | 3 hours |
| Run Time (Up To) |
|
| Technology | Lead acid |
| Transfer Time | 4 ms |
| Dimensions & Weight | |
| Depth | 68.3 cm |
| Height | 8.6 cm |
| Weight | 42.31 kg |
| Width | 48 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 98 cm |
| Shipping Height | 25.4 cm |
| Shipping Weight | 49.73 kg |
| Shipping Width | 60 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 55 dBA |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 0 (free) x SmartSlot |
| Interfaces |
|
| General | |
| Color | Black |
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 2U |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included | Power cable - external - 2.44 m |
| Compliant Standards | CSA, UL 1778, RoHS, FCC Part 15 A, REACH |
| Equipment Protection Value | 150000 US Dollars |
| Features | Audible alarm, hot-swappable battery, user-replaceable removable battery, audible alarm, LCD display, Automatic Voltage Regulation (AVR), LED indicators, cold-start function, hot-swappable batteries, energy meter |
| Pricing Type | APC Take-Back |
| Networking | |
| Remote Management Interface | Ethernet 10/100, USB |
| Power Device | |
| Efficiency | 97.6% at 100% Load, 97.3% at 25% Load, 97.9% at 50% Load, 97.8% at 75% Load |
| Frequency Provided | 50/60 Hz ± 3Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA 5-20P |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 82 - 143 V |
| Input Voltage Range (Adjustable) | AC 75 - 154 V |
| Input Wiring | 1-phase |
| Output Voltage | AC 120 V ± 5% - 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 1980 watt / 2200 VA |
| Power Output Connectors Details |
|
| Surge Energy Rating | 530 joules |
| Surge Suppression | Yes |
| UPS Technology | Line interactive |
| Sustainability Information | |
| ENERGY STAR | Yes |
| Packaging Recycled Content | Made of recycled cardboard |
