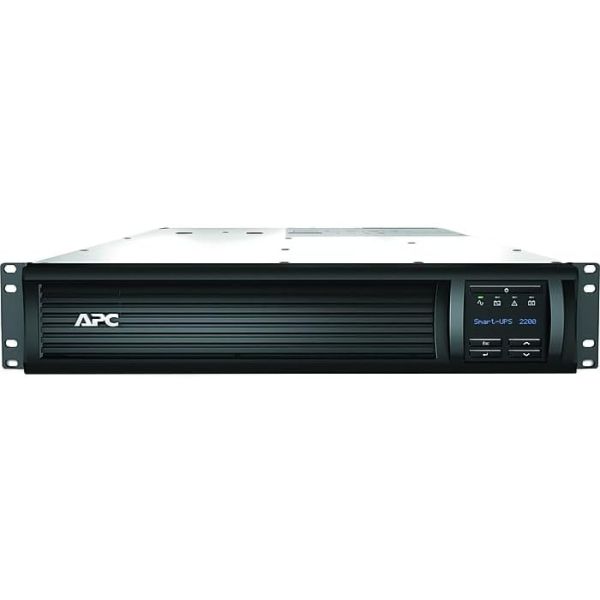

Apc Smart-Ups 2200Va Lcd 100V
| General Information | |
|---|---|
| Category | Power conditioning equipment |
| Description | Apc Smart-Ups 2200Va Lcd 100V |
| Manufacturer | APC by Schneider Electric |
| MSRP | $2,985.00 |
| UNSPSC | 39121000 |
| Main Specifications | |
| Dimensions & Weight / Depth | 54.4 cm |
| Dimensions & Weight / Height | 43.5 cm |
| Dimensions & Weight / Weight | 56 kg |
| Dimensions & Weight / Width | 19.7 cm |
| Header / Brand | APC |
| Header / Country Kits | Japan |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | External |
| Power Device / Output Connector Qty | 10 |
| Power Device / Power Capacity (VA) | 2200 VA |
| Power Device / UPS Technology | Line interactive |
| Power Device / Voltage Required | AC 100 V |
| Product Type | UPS |
| Service & Support / Type | 2-year warranty |
| Battery | |
| Recharge Time | 3 hours |
| Run Time (Up To) |
|
| Technology | Lead acid |
| Dimensions & Weight | |
| Depth | 54.4 cm |
| Height | 43.5 cm |
| Weight | 56 kg |
| Width | 19.7 cm |
| Dimensions & Weight (JTFpping) | |
| JTFpping Depth | 76.2 cm |
| JTFpping Height | 55.9 cm |
| JTFpping Weight | 64 kg |
| JTFpping Width | 38.1 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 45 dBA |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
| Interfaces |
|
| General | |
| Battery Enclosure Type | Internal |
| Color | Black |
| Device Type | UPS - external |
| Localization | Japan |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | CSA, UL 1449, UL 1778, RoHS Exemption 7b, FCC Part 15 A |
| Equipment Protection Value | 150000 US Dollars |
| Features | User-replaceable removable battery, audible alarm, emergency power off, LCD display |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Provided | 47 - 53 / 57 - 63 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA 5-20 |
| Input Voltage | AC 100 V |
| Input Voltage Range | AC 75 - 119 V |
| Input Voltage Range (Adjustable) | AC 70 - 127 V |
| Output Voltage | AC 100 V ± 5% - 47 - 53 / 57 - 63 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 1.98 kW / 2200 VA |
| Power Output Connectors Details |
|
| Surge Energy Rating | 680 joules |
| Surge Suppression | Yes |
| UPS Technology | Line interactive |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| Sustainability Information | |
| Packaging Recycled Content | Made of recycled cardboard |
