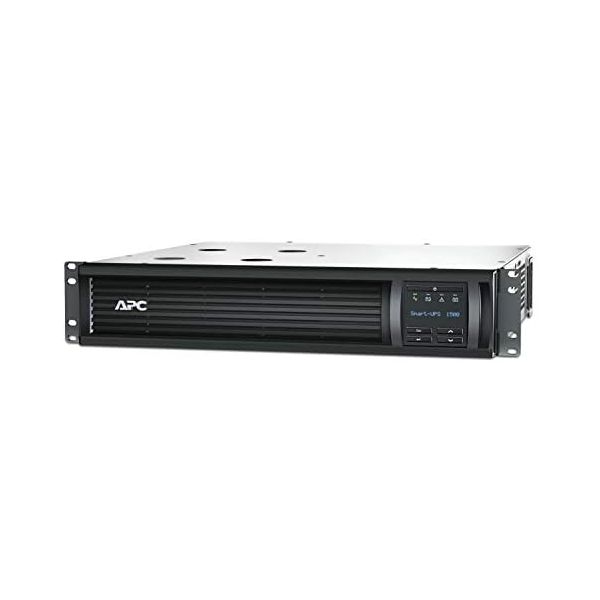

APC Smart-UPS 1500VA LCD RM 2U 230V with Network Card

Be the first to review this product

Availability: Out of stock

SKU

SMT1500RMI2UNC

UPC Code

731304327684

Request a Quote

Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transaction

Details

Intuitive LCD interface provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys. Predictive replace battery date dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

Specifications

General Information
Category	Uninterruptible power supplies
Description	APC Smart-UPS 1500VA LCD RM 2U 230V with Network Card
Manufacturer	APC by Schneider Electric
MSRP	$3,050.00
UNSPSC	39121011
Main Specifications
Dimensions & Weight / Depth	45.7 cm
Dimensions & Weight / Height	8.9 cm
Dimensions & Weight / Weight	28.58 kg
Dimensions & Weight / Width	43.2 cm
Header / Brand	APC
Miscellaneous / Product Color	Black
Networking / Remote Management Interface	Ethernet RS-232 USB
Packaged Quantity	1
Power Device / Form Factor	Rack-mountable
Power Device / Output Connector Qty	4
Power Device / Power Capacity (VA)	1500 VA
Power Device / UPS Technology	Line interactive
Power Device / Voltage Required	AC 230 V
Product Type	UPS
Service & Support / Type	3-year warranty
Battery
Features	Maintenance free, sealed, leak-proof
Recharge Time	3 hours
Run Time (Up To)	7 min at full load 26 min at half load
Technology	Lead acid
Transfer Time	2 ms
Compatibility Information
Designed For	P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF202BLK, ACF400, ACF402, ACF600, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR100, AR100HD, AR201, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3180G, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3810, AR3812, AR3814, AR4018, AR4018A, AR4018I, AR4018IA, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X431, AR4018X432, AR4024, AR4024A, AR4024I, AR4024IA, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X429, AR4038X431, AR4038X432, AR7007, AR7050, AR7057, NBPD0180, NBRK0201, NBRK0320, NBRK0320E, NBRK0551, NBWL0355, NBWL0356A
Dimensions & Weight
Depth	45.7 cm
Height	8.9 cm
Weight	28.58 kg
Width	43.2 cm
Dimensions & Weight (JTFpping)
JTFpping Depth	60.3 cm
JTFpping Height	25.1 cm
JTFpping Weight	31.84 kg
JTFpping Width	59.4 cm
Environmental Parameters
Humidity Range Operating	0 - 95%
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
Sound Emission	46 dBA
Expansion / Connectivity
Expansion Slots	1 (total) / 0 (free) x SmartSlot
Interfaces	1 x management (RS-232) - RJ-45 1 x management (USB) - 4 pin USB Type B Management (USB) - RJ-45
General
Bundled with	APC UPS Network Management Card
Color	Black
Device Type	UPS - rack-mountable
Height (Rack Units)	2U
Manufacturer Warranty
Service & Support	Limited warranty - 3 years Limited warranty - batteries - 2 years
Miscellaneous
Cables Included	Serial cable - external USB cable - external
Compliant Standards	VDE, IEC 62040-2, RoHS, REACH, EN 62040-2, EAC, RCM, IEC 62040-1, EN 62040-1
Features	Audible alarm, LCD display, Automatic Voltage Regulation (AVR), LED indicators, cold-start function, automatic self-test, predicitive failure notification, hot-swappable batteries, energy meter
Included Accessories	Rack mounting rails, temperature probe
Rack Mounting Kit	Included
Networking
Remote Management Interface	Ethernet, RS-232, USB
Power Device
Circuit Protection	Circuit breaker
Frequency Required	50 Hz ± 3Hz
Input Connectors	1 x power IEC 60320 C14
Input Voltage	AC 230 V
Input Voltage Range	AC 160 - 286 V
Input Voltage Range (Adjustable)	AC 151 - 302 V
Output Voltage	AC 230 V ± 5%
Output Waveform	Sinewave
Power Capacity	1000 watt / 1500 VA
Power Output Connectors Details	Power IEC 60320 C13
Surge Energy Rating	459 joules
Surge Suppression	Yes
UPS Technology	Line interactive
Software / System Requirements
Software Included	APC PowerChute Business Edition
