APC Thermal Containment

APC Thermal Containment

APC - Rack cable management ring

APC - Rack cable management ring

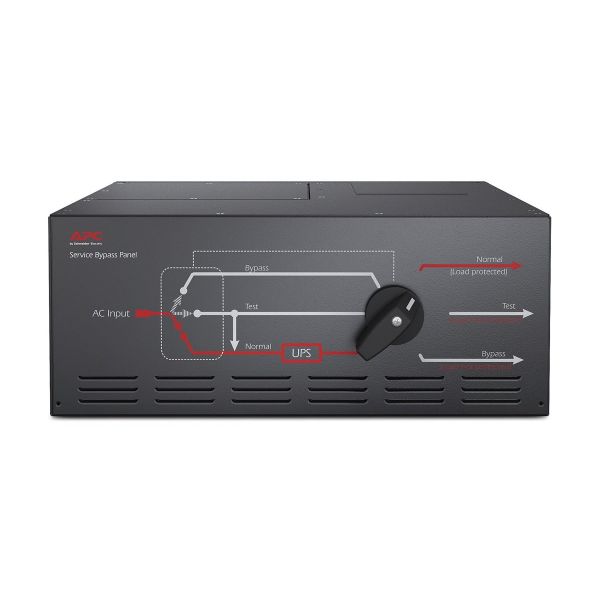

APC Service Bypass Panel

APC Service Bypass Panel

Be the first to review this product
Availability: Out of stock
SKU
SBP20KP
UPC Code
731304266952
Request a Quote
Questions before you move forward?

Chat with a JTF expert in Springfield, VA.

Click and connect instantly.

secure transactionsecure transaction
Add to Wish List Add to Compare
Details
The APC Service Bypass Panel supports output voltage of 200V, 208V, 220V, 230V, and 240V. It features a 4U form factor and provides a manual bypass switch for maintenance and service operations. It includes an installation guide, rack mounting brackets, and a user manual.
Specifications
General Information
CategoryPower conditioning equipment
DescriptionAPC Service Bypass Panel - Bypass switch (rack-mountable) - AC 200/208/220/230/240/380/400 V - 20000 VA - output connectors: 2 - black - for P/N: SURT10000XLT-1TF, SURT10000XLT-2TF3-D, SURT10000XLTQ, SURT8000RMXLICH
ManufacturerAPC by Schneider Electric
MSRP$2,690.00
UNSPSC39121000
Main Specifications
Dimensions & Weight / Depth55.4 cm
Dimensions & Weight / Height17.8 cm
Dimensions & Weight / Weight19.3 kg
Dimensions & Weight / Width43.2 cm
Header / BrandAPC
Miscellaneous / Product ColorBlack
Packaged Quantity1
Power Device / Form FactorRack-mountable
Power Device / Output Connector Qty2
Power Device / Power Capacity (VA)20000 VA
Power Device / Voltage RequiredAC 200/208/220/230/240/380/400 V
Product TypeBypass switch
Service & Support / Type2-year warranty
Compatibility Information
Designed ForP/N: SURT10000XLT-1TF, SURT10000XLT-1TF10K, SURT10000XLT-1TF3, SURT10000XLT-2TF3, SURT10000XLT-2TF3-3, SURT10000XLT-2TF3-BN, SURT10000XLT-2TF3-D, SURT10000XLT2TF3-T, SURT10000XLT-2TF3-TU, SURT10000XLT-2T-TU, SURT10000XLTQ, SURT10000XLT-TU, SURT14KRMXLJ, SURT15KRMXLI, SURT15KRMXLT, SURT15KRMXLT-TF5, SURT18KRMXLJ, SURT20KRMXLI, SURT20KRMXLT, SURT20KRMXLT-TF5, SURT20KUXICH, SURT20KUXI-IN, SURT8000RMXLI-270504, SURT8000RMXLI-CC, SURT8000RMXLICH, SURT8000XLT-1TF5, SURT8000XLTW, SYA12K16P-TU, SYA12K16PXRK, SYA12K16PXR-TU, SYA12K16PXR-TU2, SYA8K16PXR-TU, SYA8K8P-TRADEUPS, SYA8K8P-TU
Dimensions & Weight
Depth55.4 cm
Height17.8 cm
Weight19.3 kg
Width43.2 cm
Dimensions & Weight (JTFpping)
JTFpping Depth84.5 cm
JTFpping Height30.5 cm
JTFpping Weight31.4 kg
JTFpping Width61 cm
Environmental Parameters
Humidity Range Operating0 - 95%
Max Operating Temperature50 °C
Min Operating Temperature-20 °C
General
ColorBlack
Device TypeBypass switch - rack-mountable
Manufacturer Warranty
Service & SupportLimited warranty - parts - 2 years
Miscellaneous
Cables IncludedPower cable
Compliant StandardsCSA, GOST, EN 60950, UL 1778, IEC 60950, RoHS, REACH
FeaturesOverload protection
Rack Mounting KitIncluded
Power Device
Frequency Required50/60 Hz
Input Connectors3 x hardwire 5-wire (3PH + N + G), hardwire 3-wire (2PH + G), hardwire 3-wire (HN + E)
Input VoltageAC 200/208/220/230/240/380/400 V
Input Voltage RangeAC 200 - 240 V
Max Electric Current125 A
Output VoltageAC 200/208/220/230/240 V
Power Capacity20000 VA
Power Output Connectors Details
  • 1 x hardwire 3-wire (2PH + G)
  • 1 x hardwire 3-wire (HN + E)
Reviews
Write Your Own Review
You're reviewing:APC Service Bypass Panel
Your Rating
Cross-sell disabled
Request a Quote
secure transactionsecure transaction
Quick Shipping
Quick Shipping
Usually ships in 1 business day
View all APC Products
i

Quick Details

  • Bypass switch (rack-mountable)
  • AC 200/208/220/230/240/380/400 V
  • 20000 VA
  • output connectors: 2
  • black

Resources and Downloads

PDF Specifications / Brochure / Guide
